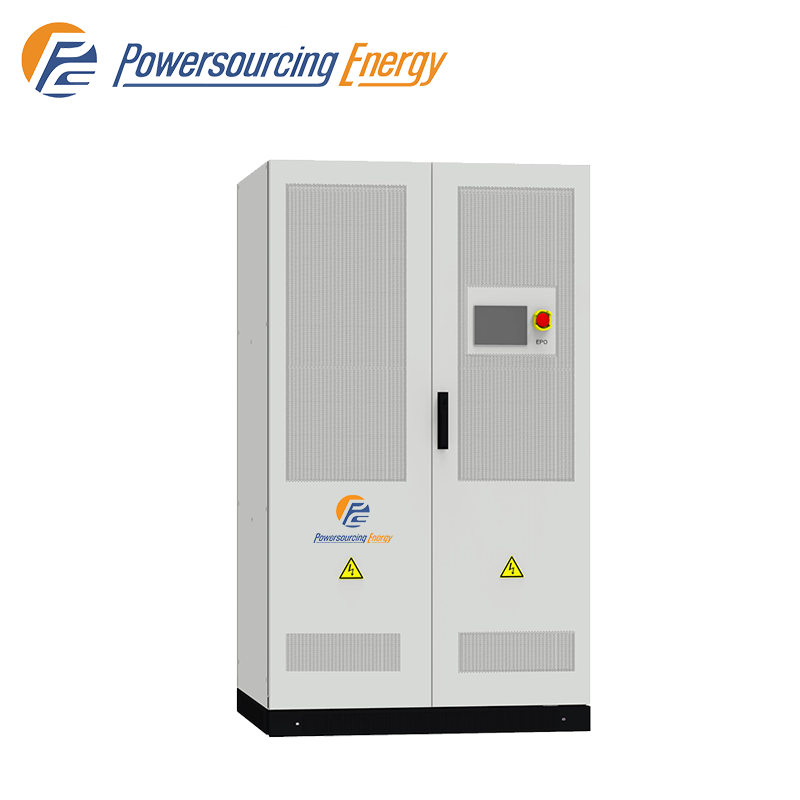

250kw 375kw 500kw Commercial outdoor cabinet Energy Storage Converter Integrated Ess

Energy Storage Converter: extendable according to scenario-specific system capacity requirements; modular components allow for easy maintenance and growth.

Brand	CZ powersourcing
Model	CZPE-250TS/375TS/500TS
Type	Energy Storage Converter
Max. Power	250KW/375KW/500KW
Output Voltage	400V
Certificate	CE, TUV, IEC
Lead Time	45 Days
Warranty	5 Years (10 Years Option)

Inquiry Now

Product Introduction

Product Function

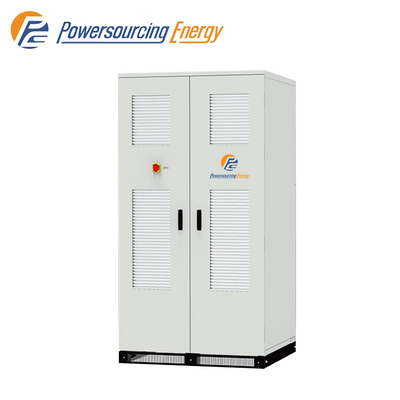

The outdoor energy storage cabinet integrates modular PCS, energy management monitoring system, and distribution system. With modular PCS, it is easy to maintain and expand. The outdoor cabinet adopts front maintenance, which can reduce the area and maintenance channel. It has the characteristics of safe, reliable, fast deployment, low cost, high energy efficiency and intelligent management.

Common application scenarios and operation strategies are as follows:

Grid-connected mode：
Energy storage converter access to batteries, photovoltaic or other DC sources, through the AC / DC power module converted to AC power into the grid, can be realized: storage battery access to achieve peak shaving, tariff difference arbitrage. Photovoltaic power generation online to realize the profitability of power sales.

Off-connected mode：
Energy storage converter access to batteries, PV or other DC sources, through the AC/DC power module converted to AC power supply for local loads, the default three-phase voltage of 400Vac, 50Hz.

Product Features

The Monet series energy storage converters adopt advanced digital control technology and are equipped with the independently developed Lotus-Pcs microgrid management system, which optimizes control performance and improves system reliability to meet the needs of multiple application scenarios. Its performance characteristics are as follows:

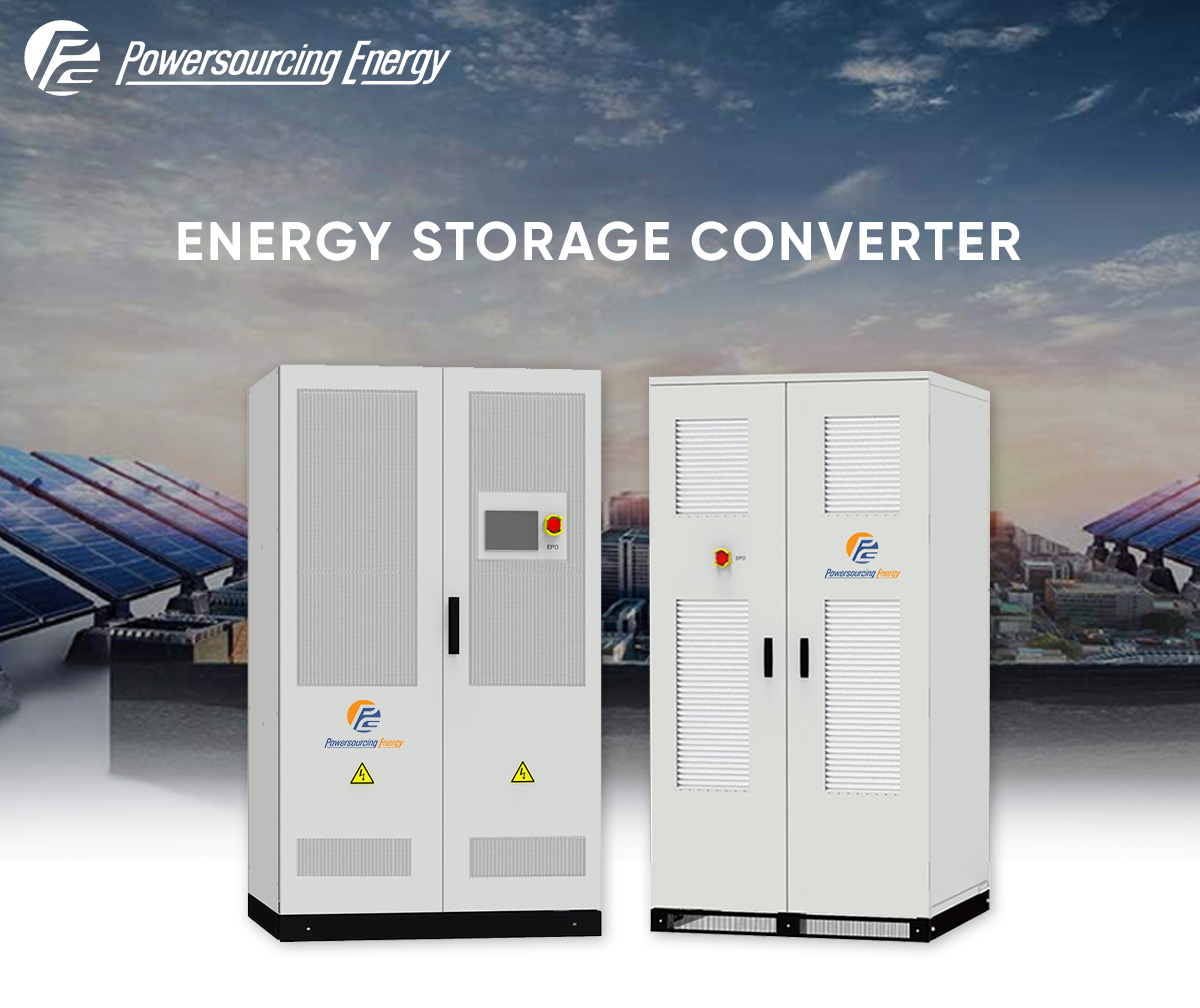

There are indoor and outdoor cabinet types to meet the needs of various installation sites.

The power module adopts a three-level circuit design, which has high conversion efficiency and improves power utilization.

Modular rack-mounted design, flexible configuration, easy expansion and maintenance.

The local control panel can achieve diversified functions such as converter operation monitoring, energy management strategy development, equipment remote upgrading, etc.

Product Parameters

Model	CZPE-250TS	CZPE-375TS	CZPE-500TS
DC-side parameters
Operate voltage range	580~950V
Maximum DC current	200A*2	200A*3	200A*4
Adaptive battery	Lithium/lead-acid/Solar panel(MPPT)
Charging mode	According to BMS instructions/three-stage/MPPT
Operating mode	Constant current, constant power, MPPT, AC voltage source, DC voltage source
AC-side parameters (grid-connected)
Rated Max.AC power	250/275kW	375/412kW	500/550kW
Rated AC current	360A	180A*3	720A
Rated AC voltage	400V,3W+N+PE
Rated AC frequency	50/60Hz±5Hz
THDI	＜3%（Rated power）
Power Factor	-1leading to+1 lagging
AC-side parameters (off-connected)
Rated AC voltage	400V
Rated AC frequency	50/60Hz
THDU	＜3%（Linear Load）
Overload capacity	110%, normal operation; 120%, 1 minute
General parameters
Degree of protection	IP21(Indoor）；IP54(Outdoor）
Protective Class	I
Shutdown self-discharge	＜100W（Without transformer）
Display	LCD
Relative humidity	0 ~ 95% (no condensation)
Noise	＜78dB
Ambient temperature	-25℃ to +60℃(derating above 45℃)
Cooling mode	Intelligent air-cooled
Altitude	3000m (> 2000m reduction)
Communication interface	RS485 / CAN/Ethernet
Dimensions (W * D * H)	12009502100mm(Indoor）；130010002300mm(Outdoor）	120010002300mm(Indoor）；130010002300mm(Outdoor）	120010002300mm(Indoor）；130010002300mm(Outdoor）
Weight (approx.)	1500kg(Indoor）； 1700kg(Outdoor）	1800kg(Indoor）；2000kg(Outdoor）	2150kg(Indoor）；2350kg(Outdoor）
