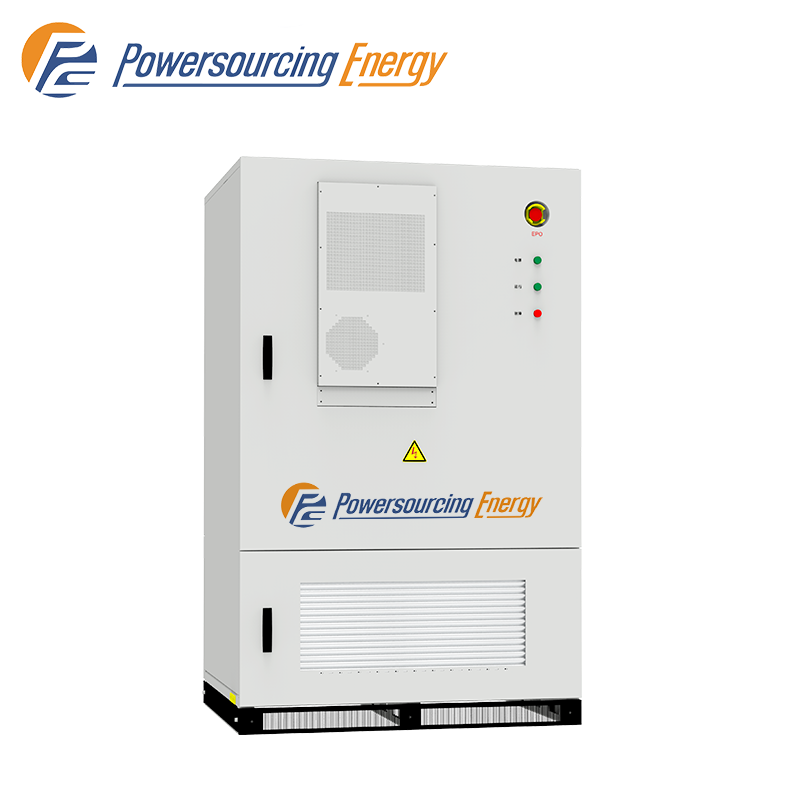

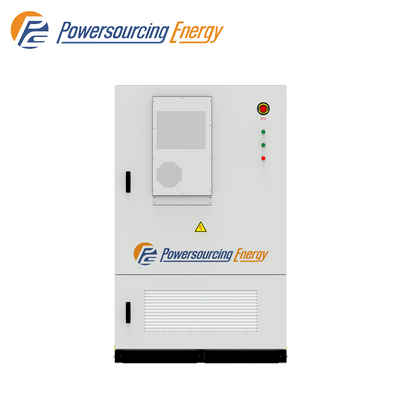

Large-Scale Hybrid Electric Self-Storage System with 100 Kwh Lithium Ion Batteries

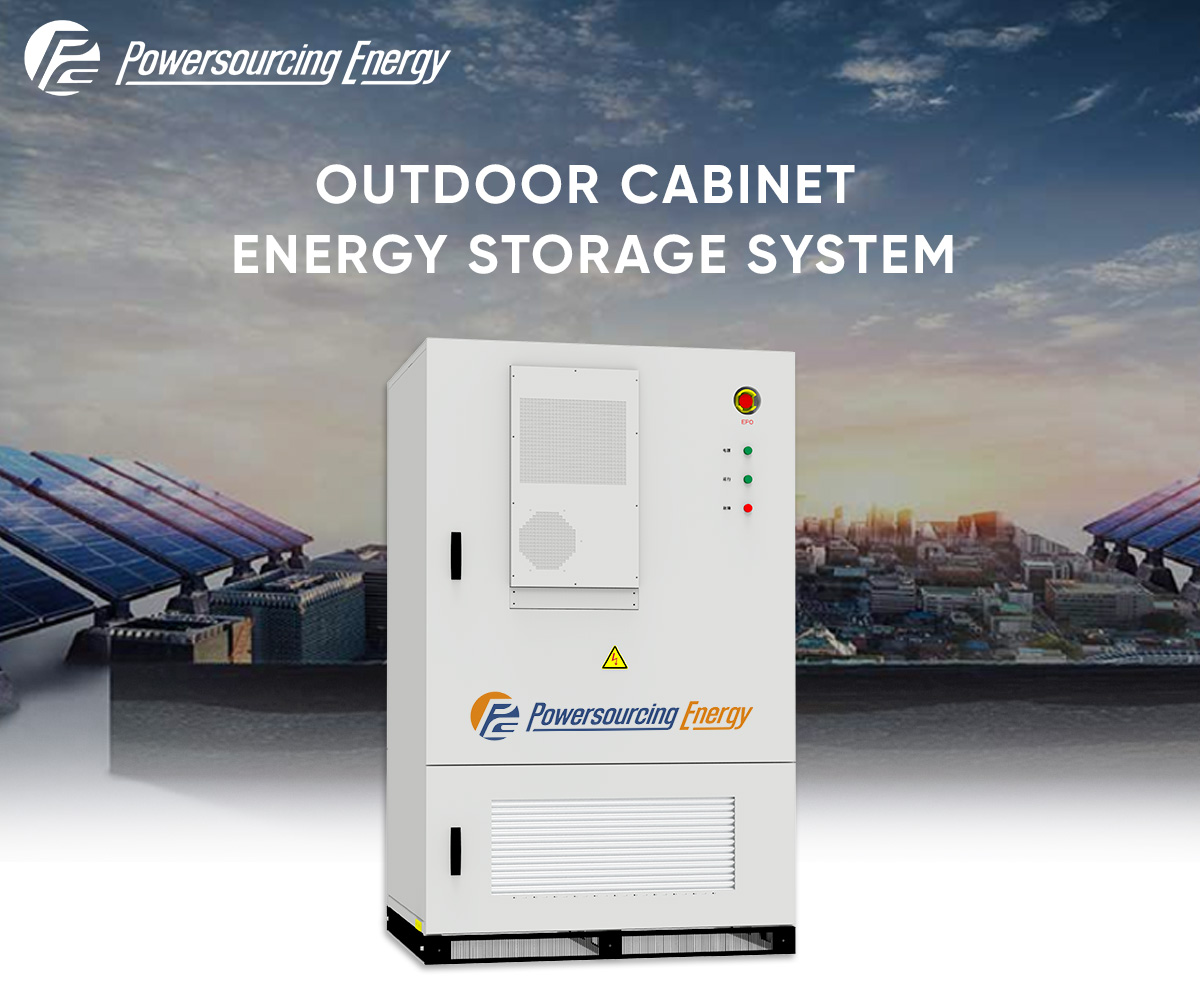

Outdoor cabinet energy storage system with modular pieces for simple upkeep and scalability, optional based on the scenario's system capacity needs

Brand	CZ powersourcing
Model	CZPE50TS-100KWH
Type	Energy Storage System
Max. Power	50KW
Output Voltage	400V
Certificate	CE, TUV, IEC
Lead Time	45 Days
Warranty	5 Years (10 Years Option)

Inquiry Now

Product Introduction

Product Features

The system has been commercialized, integrating energy storage batteries, energy storage converters, photovoltaic converters, energy management monitoring systems, power distribution systems, environmental control systems, and fire control systems. It can fully control the operation status and risks of the system.

It adopts door-mounted embedded integrated air conditioning, which does not occupy
cabinet space, improves the available space of outdoor cabinets, has better structural
integrity at the top, and has good waterproof performance.

Real-time acquisition of local load power, photovoltaic power generation priority is

self-generation and self-use, and surplus electricity storage; When the power generated
by photovoltaic power generation is insufficient to provide local load, the battery
storage is prioritized.

The local control screen can achieve diversified functions such as system operation
monitoring, energy management strategy development, equipment remote upgrading, etc.

The protection level is IP54, which can perfectly cope with various types of weather in the

outdoor environment.

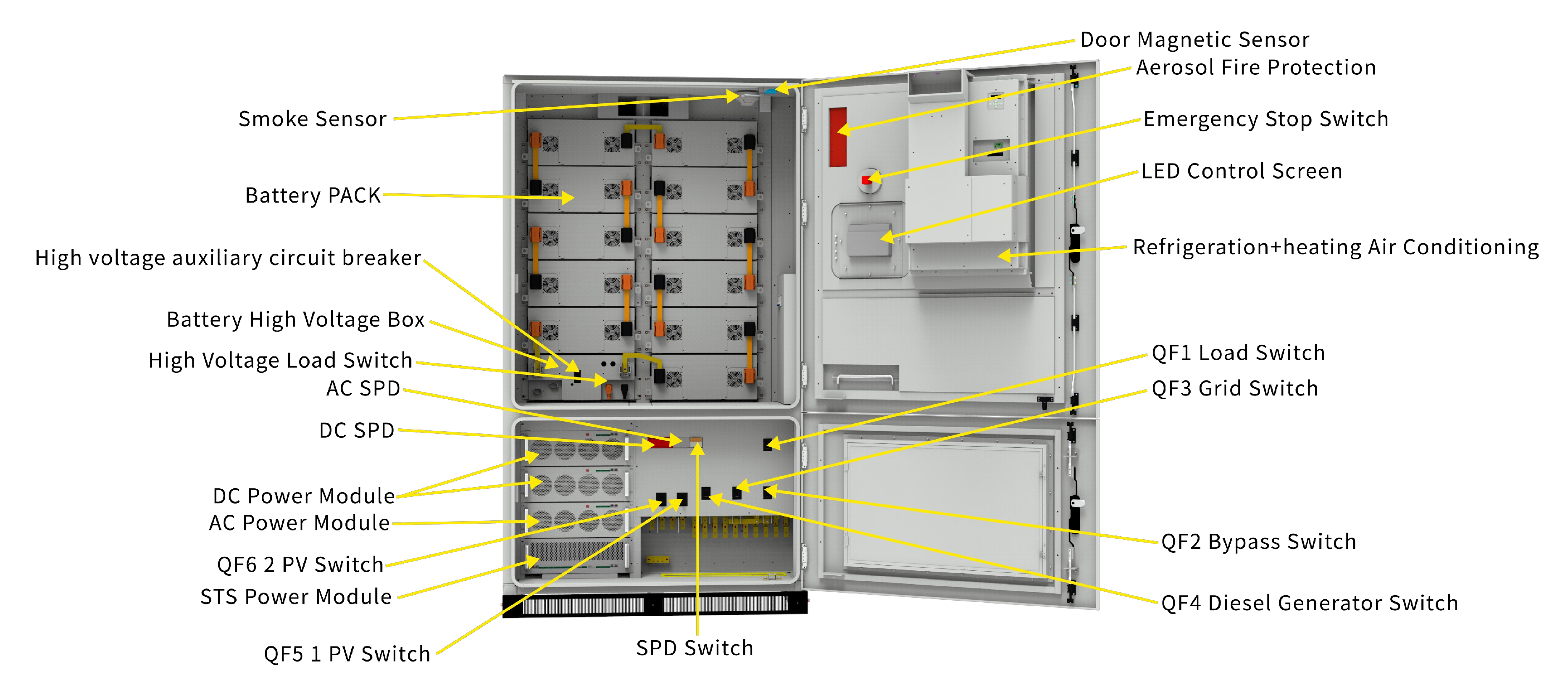

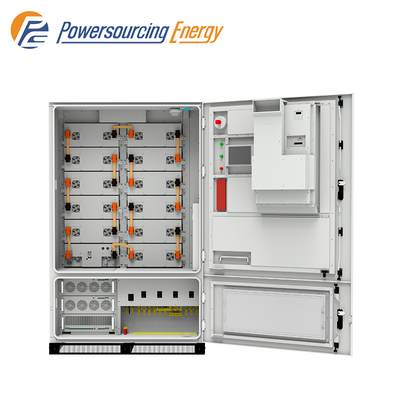

Internal structure of the cabinet

Product Parameters

Model	CZPE50TS-100KWH
Battery rated capacity	100kWh
Battery rated voltage	844.8V
Battery voltage range	739.2V~950.4V
Battery type	Lithium Iron Phosphate battery (LFP)
Battery cell capacity	120Ah
Series of Battery	1P24S11S
Maximum charge and discharge current	60A
Photovoltaic rated capacity	50kW
Photovoltaic voltage range	200~550V
Rated AC power	50kW
Rated AC current	72A
Rated AC voltage	400V，3W+N+PE/3W+PE
Rated AC frequency	50/60Hz
THDI	＜3%（Rated power）
Power Factor	-1leading to+1 lagging
THDU	＜3%（Linear Load）
Degree of protection	IP54
Protective Class	I
Isolation mode	No-Isolation(Adding isolation transformer is optional)
Shutdown self-discharge	＜100W（Without transformer）
Display	LCD
Relative humidity	0 ~ 95% (no condensation)
Noise	＜78dB
Ambient temperature	-25℃ to +60℃(with derating at temperatures above 45℃)
Cooling mode	Intelligent air-cooled
Altitude	3000m (> 3000m reduction)
Communication interface	CAN/Ethernet / 485
Size (W * D * H)	130010302100mm
Weight (approx.)	2150kg

Energy Storage System certifications
