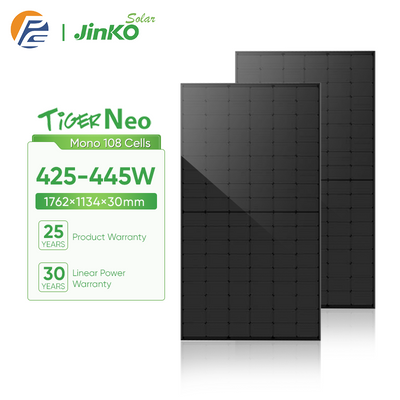

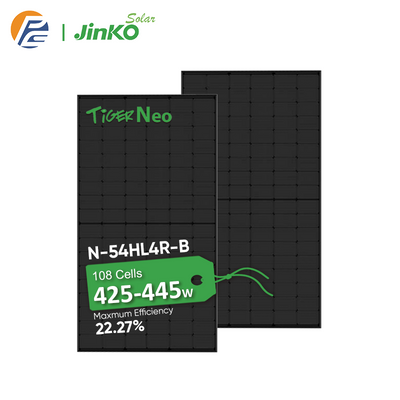

Jinko Solar JKM54HL4R-B 425-445W

N-Type All-Black Mono-Facial Module

Module Number	JKM54HL4R-B
Brand Name	Jinko
Panel Dimensions	1762×1134×30mm
Weight	21.0kg
Warranty	25 years
Certificate	CE, TUV, IEC
Packing Detail	36pcs/pallets
Number of cells	108（54×2）

Inquiry Now

Download

Jinko Solar Tiger Neo

Product Description

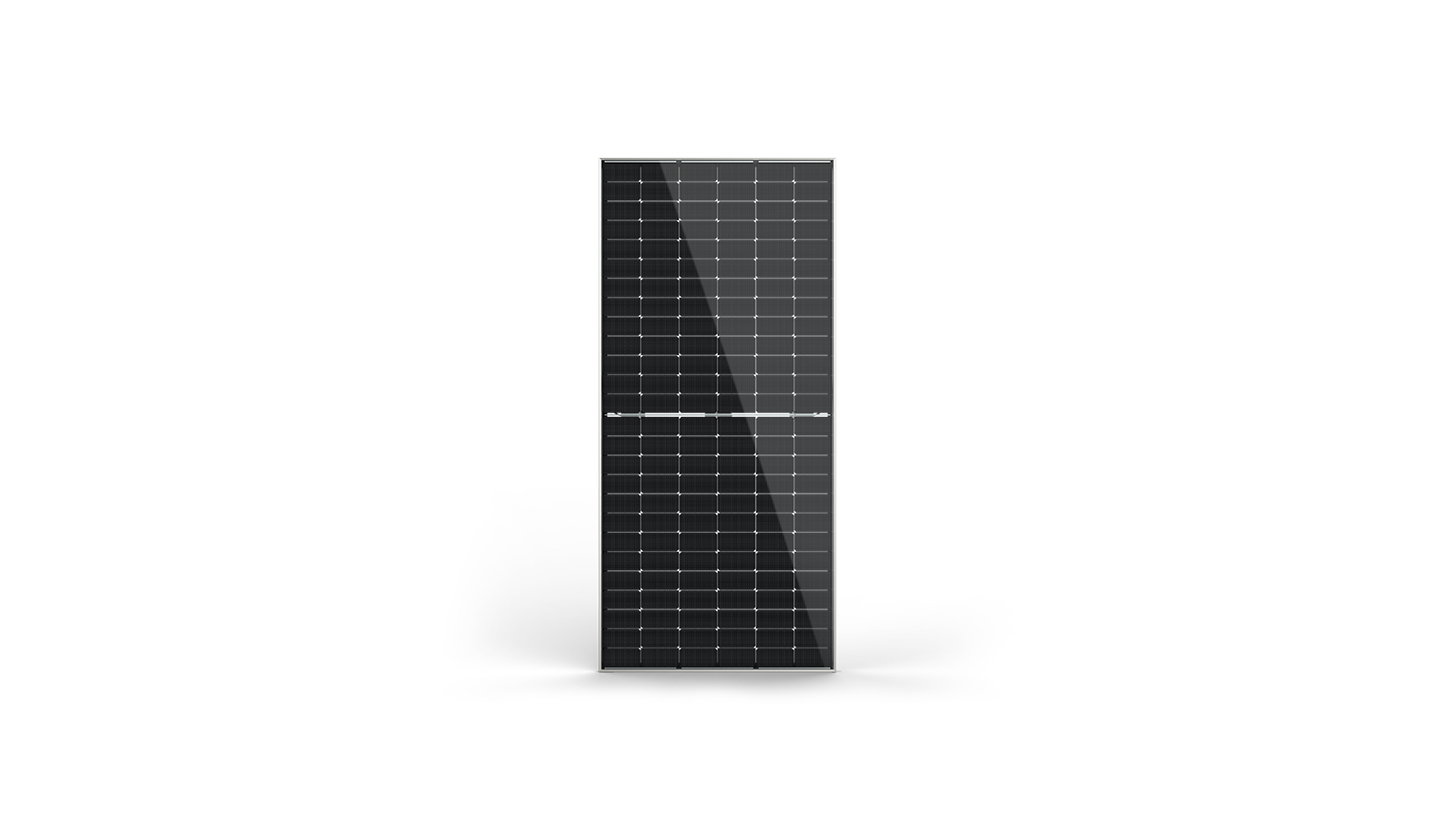

Tiger Neo

635 23.23 30 -0.29 85

Inquire now

W % years %/℃ %

Power Efficiency Power Warranty Temperature Coefficient Max.Bifaciality

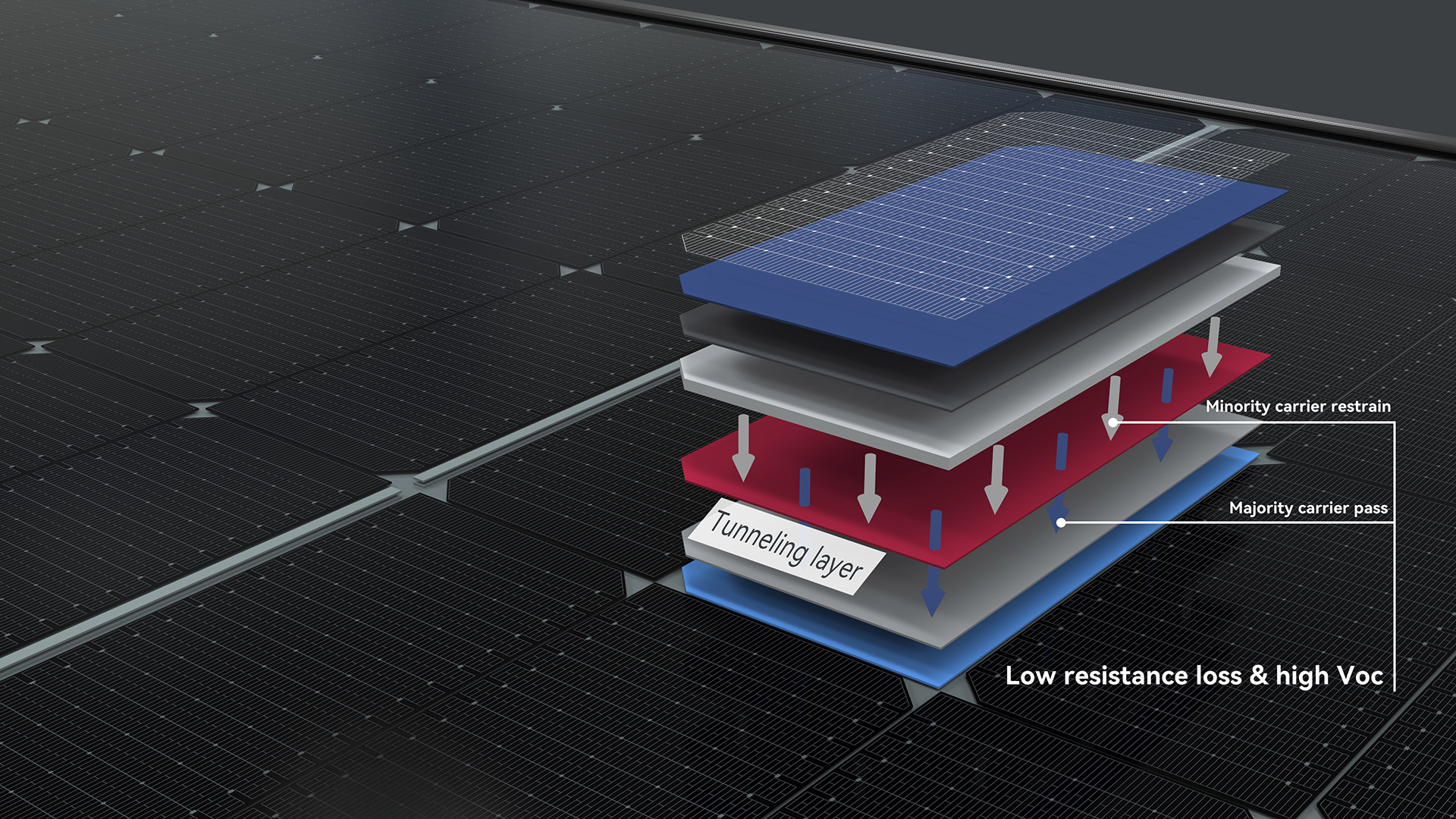

TOPCon Technology Innovation
Selective Passivation Contact

The key technology determines the maximum efficiency

Ultra-high Power Generation/Ultra-high Efficiency

Higher Bifacial Gain

Enhanced Reliability

Lower LID / LETID

High Compatibility

Optimized Temperature Coefficient

Lower Operating Temperature

Optimized Degradation

Outstanding Low Light Performance

Exceptional PID Resistance

30 Power Warranty

≤ 1%

-0.4%

First year degradation

Linear degradation

Optimized Temperature Coefficient -0.29%/℃

The temperature coefficient of P-type is -0.35%/℃，
Under high temperature condition, Tiger Neo can
generate 2% more power than P-type

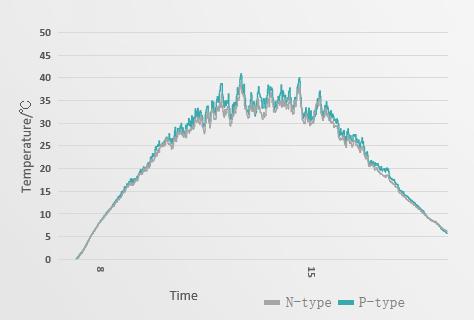

Real-time operating temperature

Product Specifications

445W

N-Type

JKM54HL4R-B

22.27 25 30

<%> <Years> <Years>

Module Efficiency Product Warranty Power Warranty

Item	Value
Cell Type	N-type Mono-crystalline
No. of cells	108(54×2)
Dimensions	1762×1134×30mm
Weight	21.0kg
Front Glass	3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Protection Class	Class Ⅱ
IEC Fire Type	Clsss C
Output Cables	4.0mm² (+):400mm, (-):200mm or Customized Length
Pallet Dimensions	1792×1120×1249mm
Packing Detail	36 pcs/pallets, 72 pcs/stack, 936 pcs/40'HQ Container
Power Tolerance	0~+3%
Operating Temperature	-40℃~+85℃
Maximum System Voltage	1000 VDC(IEC)
Maximum Series Fuse Rating	25 A
