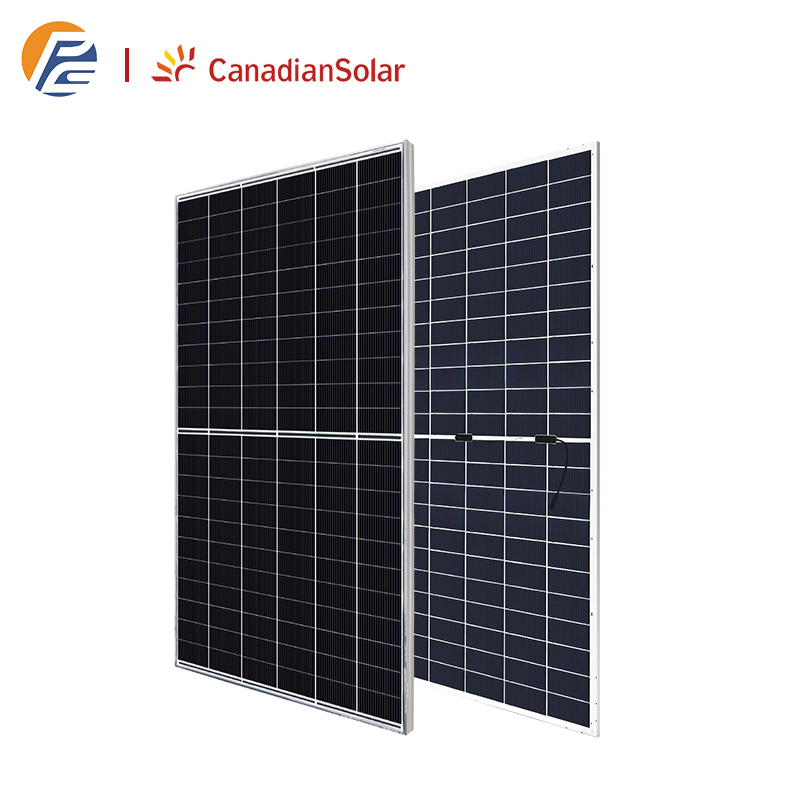

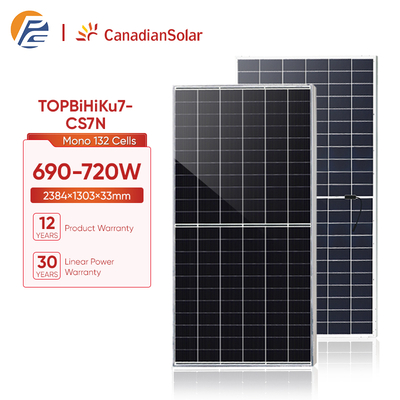

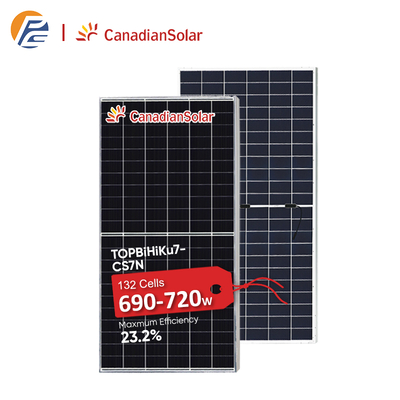

Canadian Solar TOPBiHiKu7 CS7N 690-720W

N-Type TOPCon Bifacial Modules

Module Number	TOPBiHiKu7 CS7N
Brand Name	Canadian
Panel Dimensions	2384×1303×33mm
Weight	37.8kg
Warranty	12 years
Certificate	CE, TUV, IEC
Packing Detail	33pcs/pallets
Number of cells	132[2×(11×6)]

Inquiry Now

Download

Product Description

N-Type TOPCon Bificial Modules

CS7N-

690-720W

TOPBiHiKu7

Item	Value
Cell Type	TOPCon cells
Cell Arrangement	132[2×(11×6)]
Dimensions	2384×1303×33mm
Weight	37.8kg
Front Glass	2.0mm heat strengthed glass with anti-reflective coating
Back Glass	2.0mm heat strengthed glass
Frame	Anodized aluminum alloy
J-Box	IP68, 3 bypass diodes
Cable	4 mm²(IEC), 12 AWG(UL)
Cable Length	360 mm(+)/200 mm(-)or customized length
Connector	T6 or MC4-EVO2 or MC4-EVO2A
Per Pallet	33 pieces
Per Container(40' HQ)	594 pieces or 495 pieces(only for US & Canada)
Operating Temperature	-40℃~+85℃
Max. System Voltage	1500V(IEC/UL) or 1000V(IEC/UL)
Max. Series Fuse Rating	35A
Application Classification	Class A
Power Tolerance	0~+10W

Canadian Solar N-Type TOPCon Modules

CZPowersourcing Canadian Solar in Stock

About our company

Our Successful Projects

Solar Panels FAQ

What's the delivery time?

It depends on what product you order first. If you order solar panels, inverters, or other items we have stock, we can arrange shipping in 3 workdays; If you order customized products, like batteries, solar system and etc, it takes around 10~15 workdays. Anyway, we will arrange shipping as soon as possible.

What's your payment terms?

We prefer full payment before shipping. And we can also negotiate it for actual orders. We will do our best to support our clients.

Can I mix different models in one container?

Yes,Different models can be mixed in one container,But the quantity of each model should not be less than MOQ, And if you purchase a single model in one container , there will be more discount.
