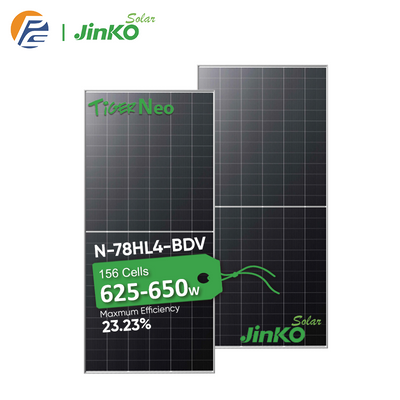

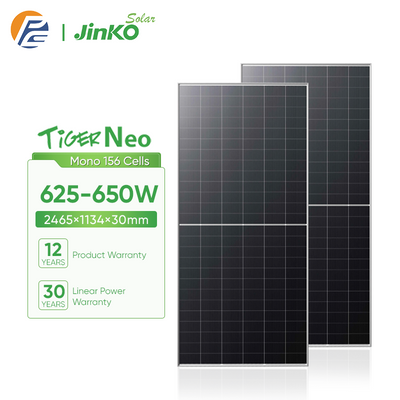

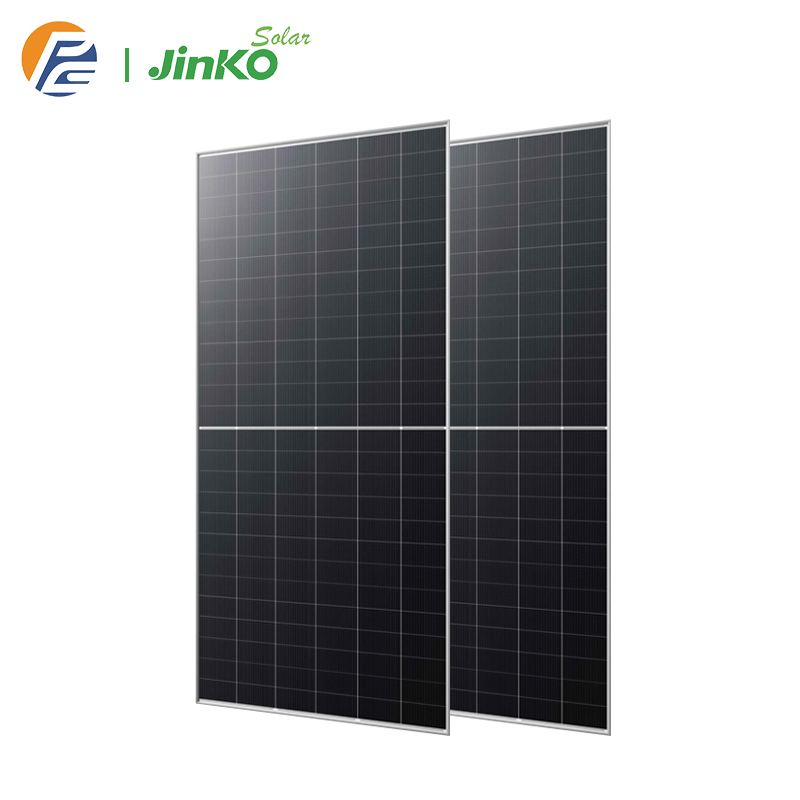

Jinko Solar JKM78HL4-BDV 625-650W

N-Type Bifacial Module With Dual Glass

    Module Number

   JKM78HL4-BDV

    Brand Name

   Jinko

    Panel Dimensions

   2465×1134×30mm

    Weight

   34kg

    Warranty

   12 years

    Certificate

   CE, TUV, IEC

    Packing Detail

   36pcs/pallets

    Number of cells

   156(78×2)

Product Description

54HL4R-B banner
650W
N-Type
JKM78HL4-BDV
23.25           12               30
                      <%>                          <Years>                            <Years>

Module Efficiency             Product Warranty          Power Warranty

  Item

Value

  Cell Type

N-type Mono-crystalline

  No. of cells

156(78×2)

  Dimensions

2465×1134×30mm

  Weight

34kg

  Glass

Front 2.0mm, Anti-Reflection Coating, Back 2.0mm, Heat Strengthened Glass

  Frame

Anodized Aluminium Alloy

  Junction Box

IP68 Rated

  Protection Class

Class Ⅱ

  IEC Fire Type

Clsss C

  Output Cables

4.0mm² (+):400mm, (-):200mm or Customized Length

  Pallet Dimensions

2525×1140×1251mm

  Packing Detail

36 pcs/pallets, 72 pcs/stack, 576 pcs/40'HQ Container

  Power Tolerance

0~+3%

  Operating Temperature

-40℃~+70℃

  Maximum System Voltage

1500 VDC(IEC)

  Maximum Series Fuse Rating

30 A

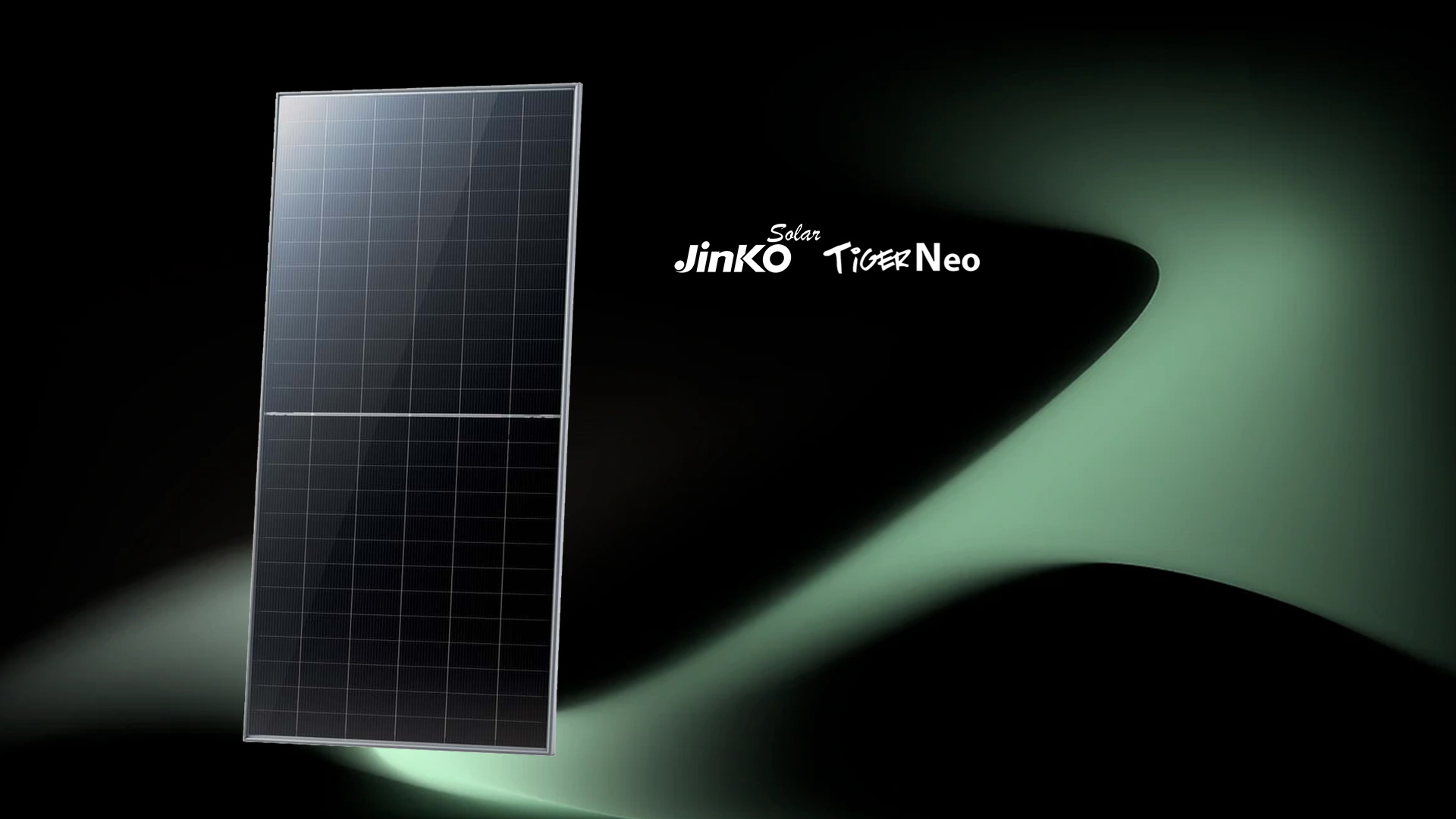

Jinko Solar Tiger Neo

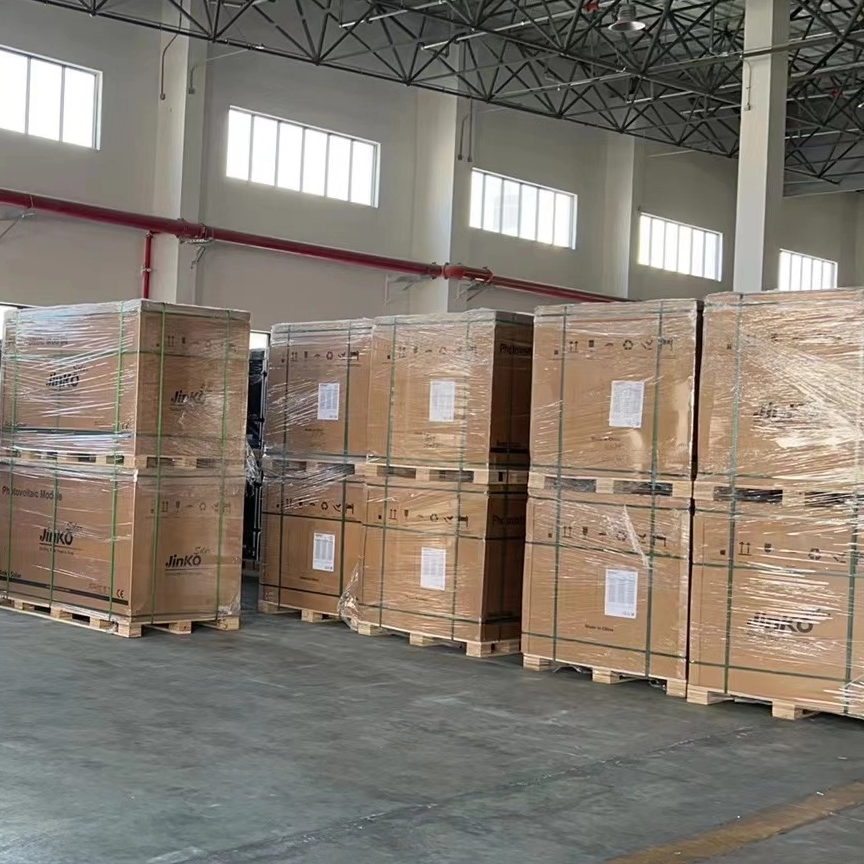

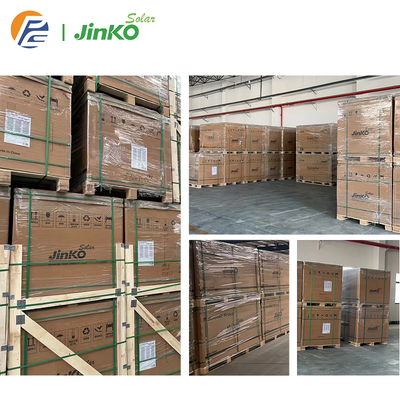

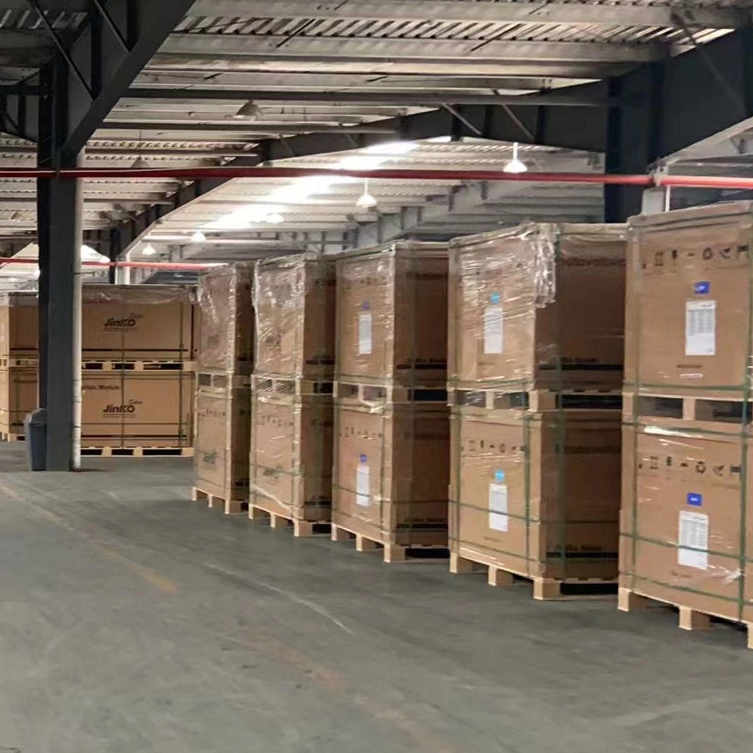

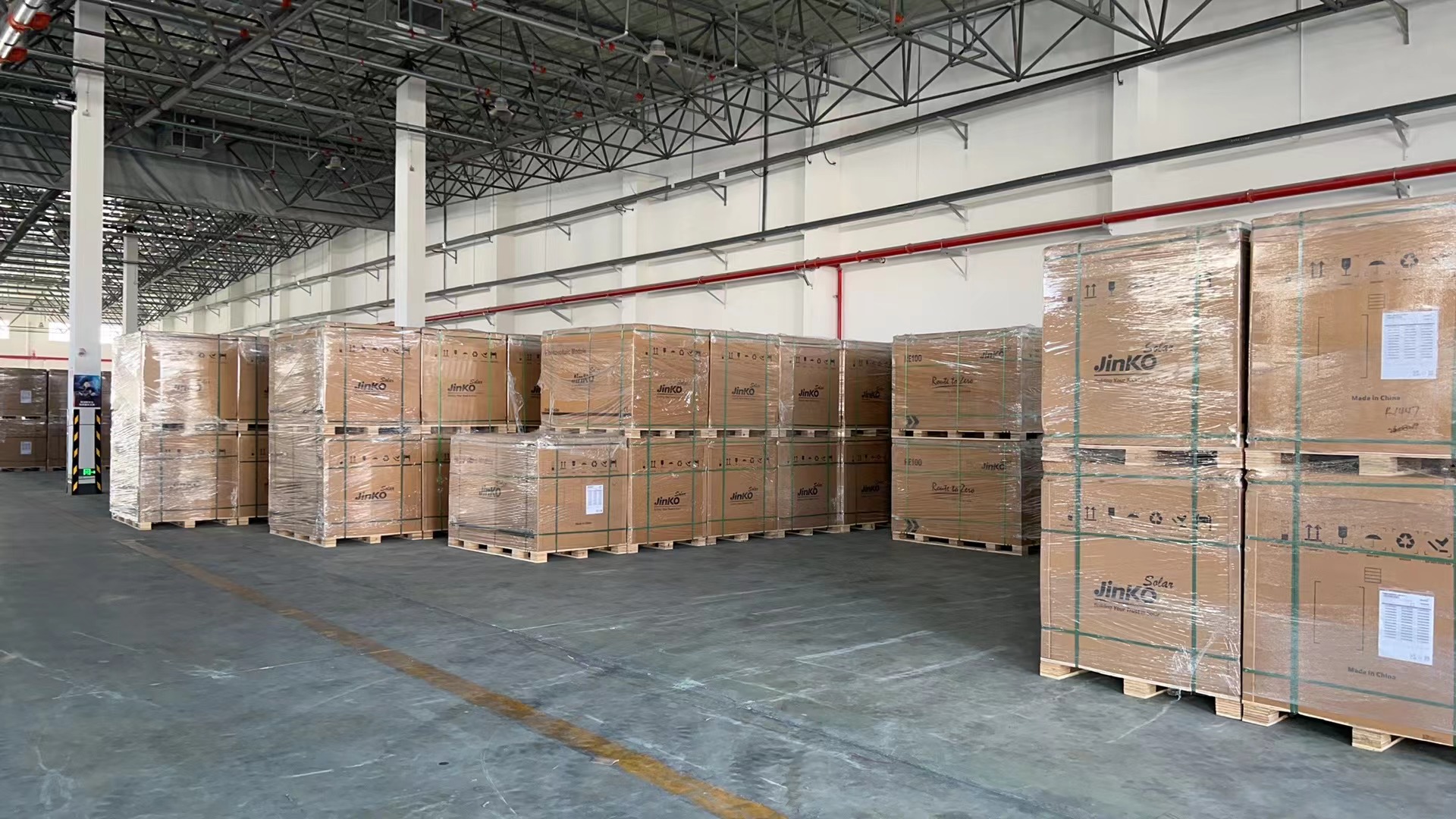

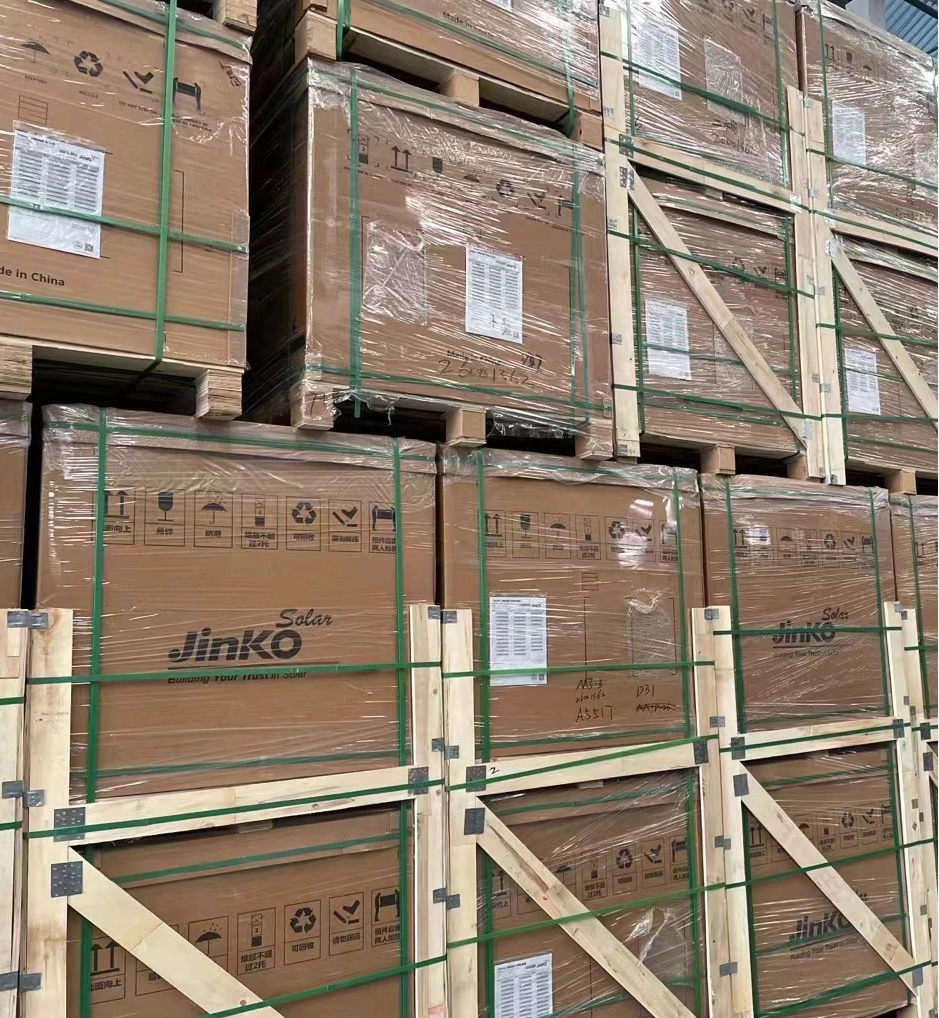

CZPowersourcing Jinko Stock

About our company

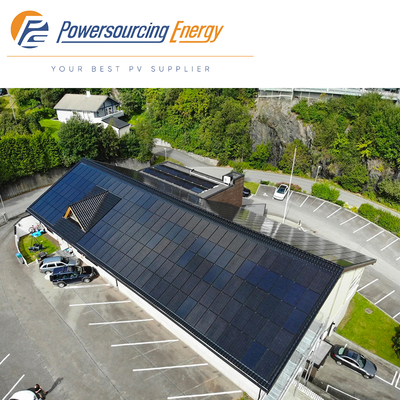

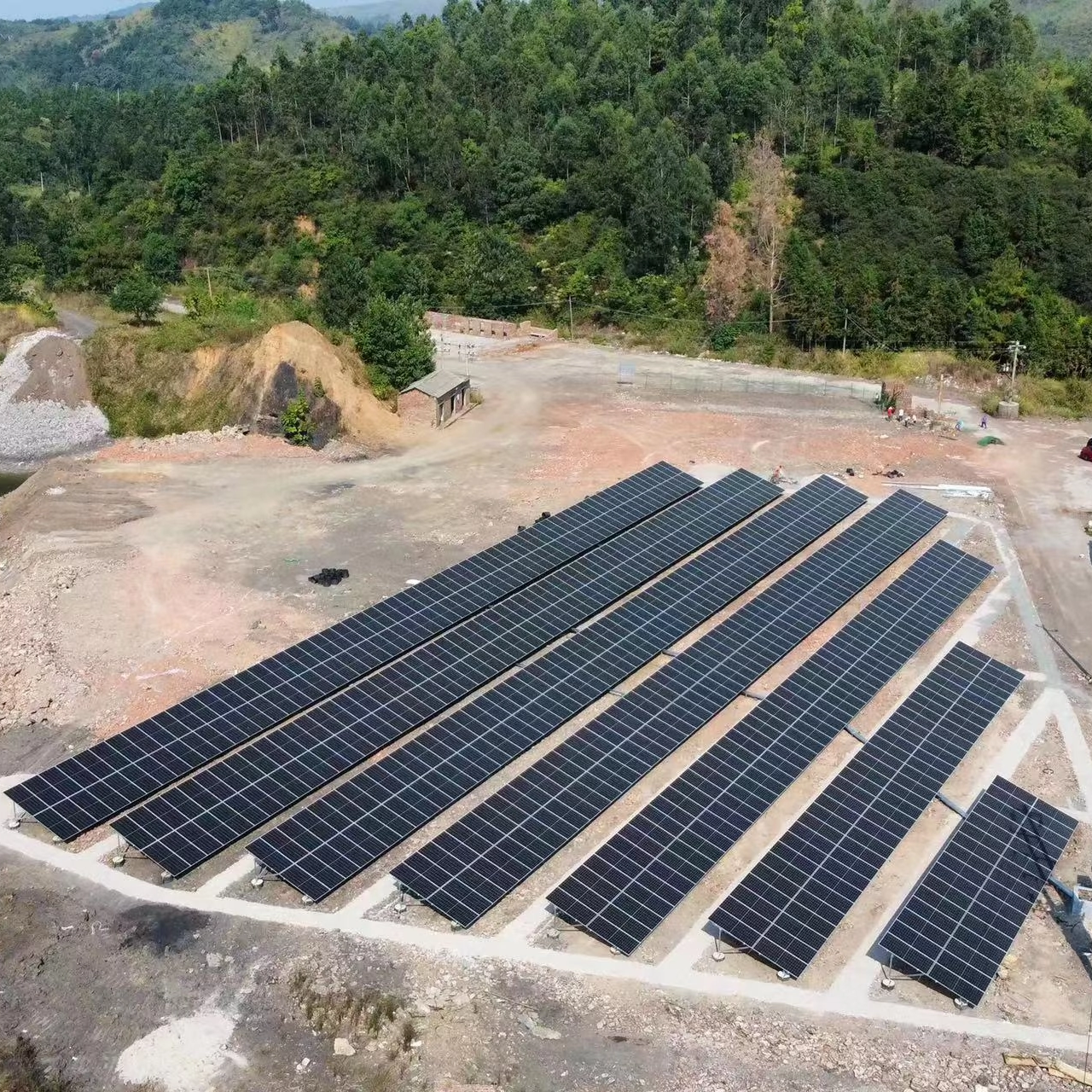

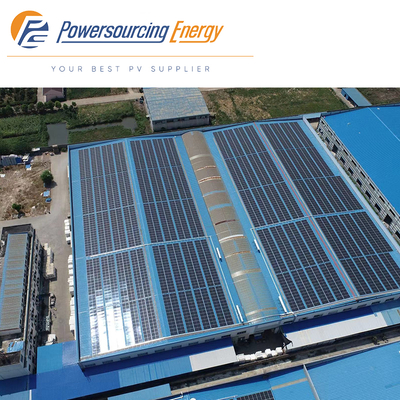

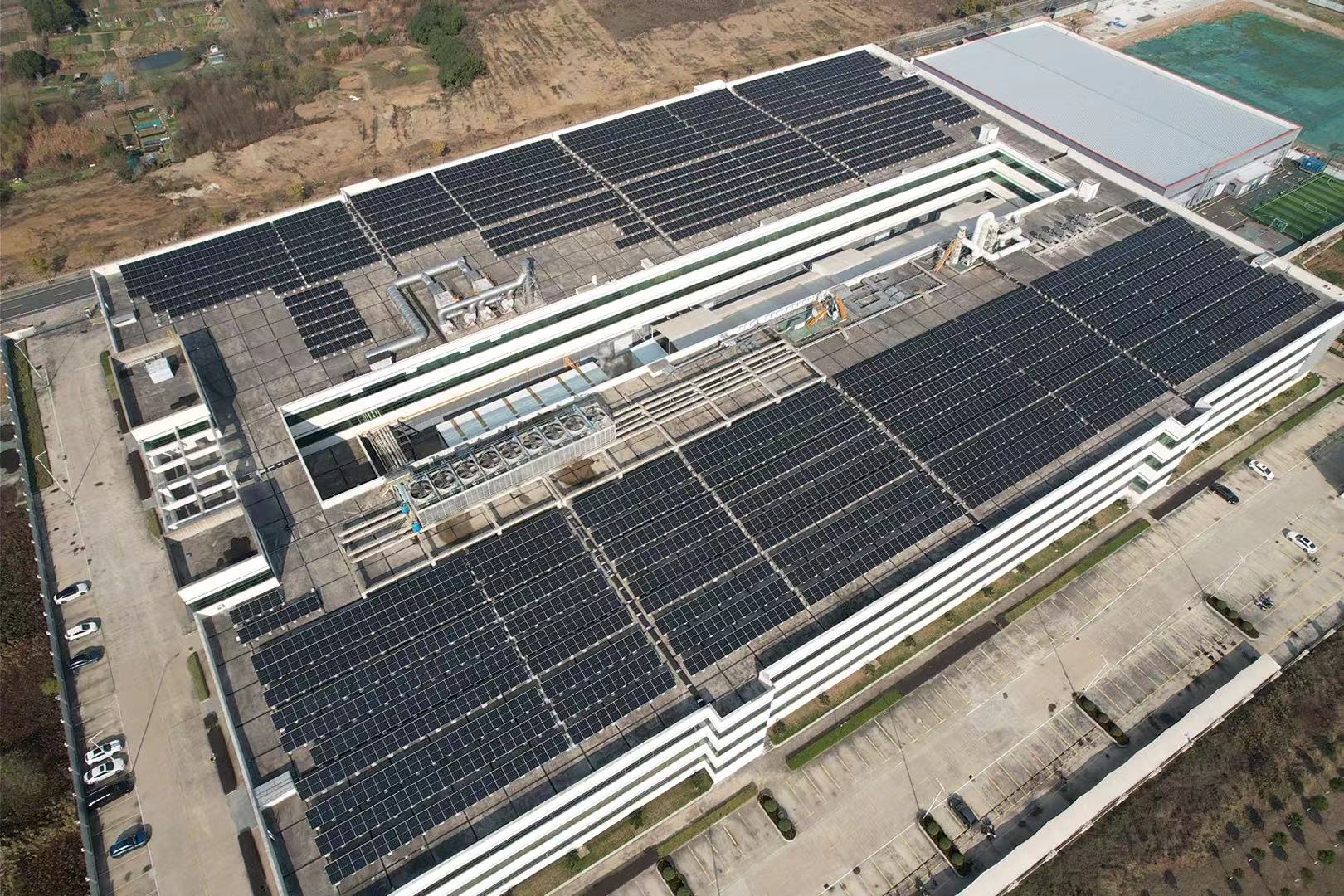

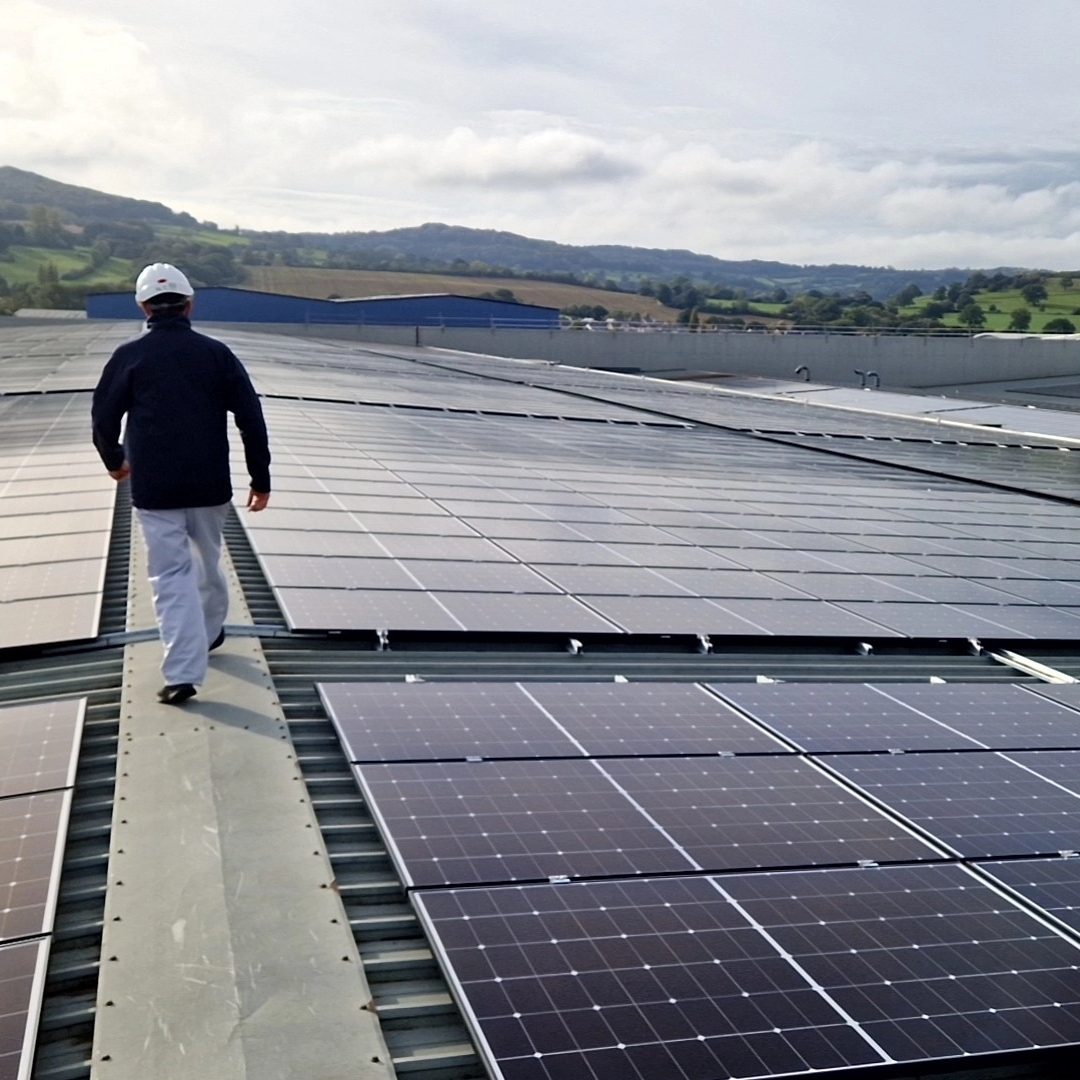

Our Successful Projects

Solar Panels FAQ

  • It depends on what product you order first. If you order solar panels, inverters, or other items we have stock, we can arrange shipping in 3 workdays; If you order customized products, like batteries, solar system and etc, it takes around 10~15 workdays. Anyway, we will arrange shipping as soon as possible.

  • We prefer full payment before shipping. And we can also negotiate it for actual orders. We will do our best to support our clients.

  • Yes,Different models can be mixed in one container,But the quantity of each model should not be less than MOQ, And if you purchase a single model in one container , there will be more discount.
