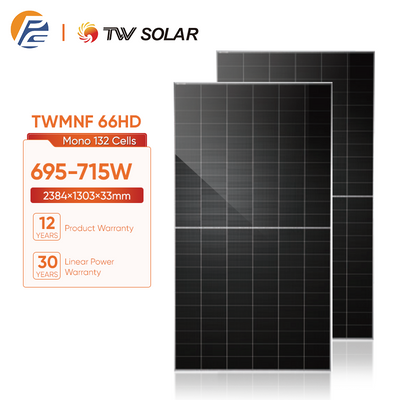

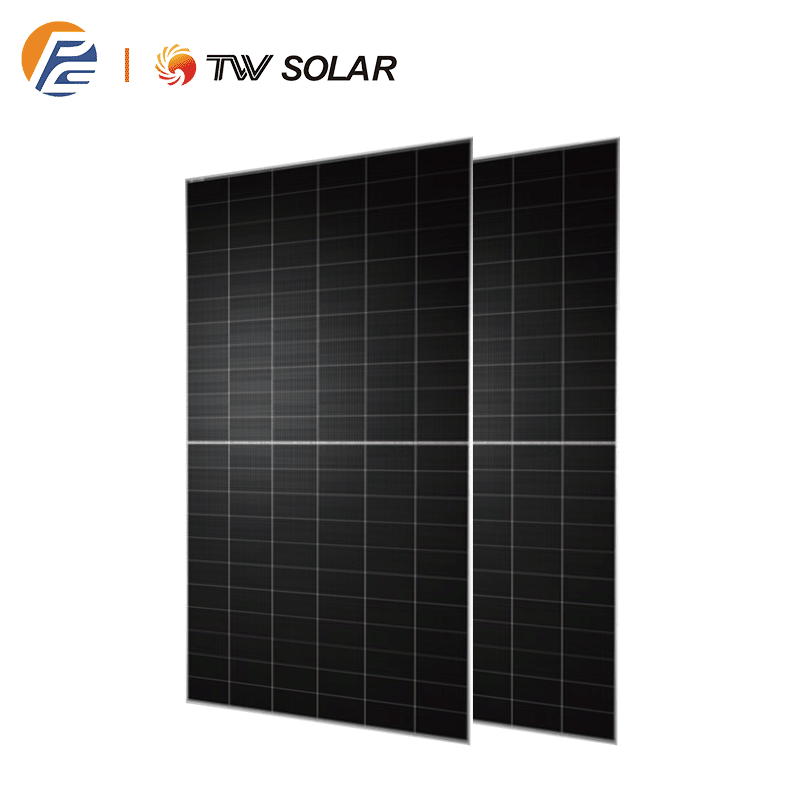

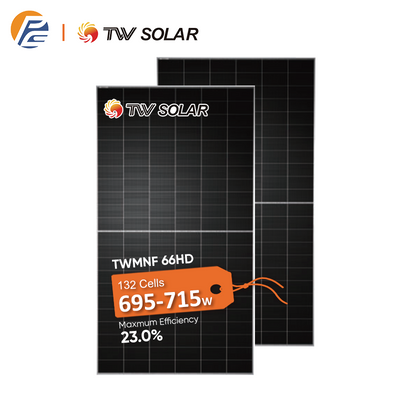

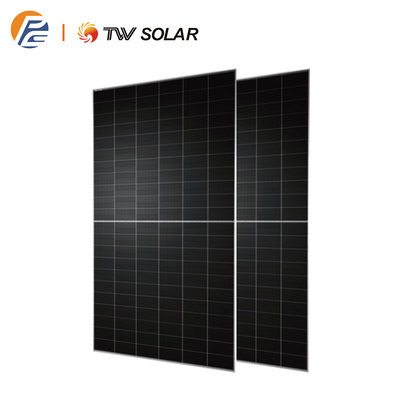

TW Solar TWMNF 66HD   695-715W

N-Type Half-cell Bifacial Module

    Module Number

   TWMNF 66HD

    Brand Name

   TW Solar

    Panel Dimensions

   2384×1303×33mm

    Weight

   37.9kg

    Warranty

   12 years

    Certificate

   CE, TUV, IEC

    Packing Detail

   33 pcs/pallets

    Number of cells

   132cells

Product Description

54HL4R-B banner
N-Type Half-cell Bifacial Module
TWMNF 66HD-
695-715W

   Item

Value

  Cells

TNC(N-Type Monocrystalline Cell)

  Cell Orientation

132[6×22]

  Module Dimensions

2384×1303×33mm

  Weight

37.9kg

  Front Glass

2.0mm high transmittance, AR tempered glass
  Rear Glass 2.0mm semi-tempered glass
  Frame Anodized aluminum alloy frame

  Junction Box

IP68, 3diodes

  Output Cable

4.0 mm²

  Cables Length

+400mm, -200mm, length can be customized
  Wind/Snow Load 2400Pa/5400Pa
  Packaging 33pcs per pallet, 594pcs per 40'HC
  Operational Temperature -40℃~+85℃
  Maximum System Voltage 1500V DC

  Maximum Series Fuse Rating

35A

  Power Output Tolerance

0~+5W

  Maximum Bifaciality

80±5%
