Have you ever got some feedback from customers who installed, distributed or sold solar system that they found moisture inside the solar panels? Is this a normal occurrence?
It is also important to know that moisture inside your solar panels is not normal. Photovoltaic or PV panels, also known as solar panels, are manufactured to be water and air tight. When moisture is trapped within the panels then this is a strong sign that the sealing has been compromised and there could be numbers of reasons as to why it has failed.
After having been in the solar industry for more than 10 years, I shall proceed to discuss why you may find moisture inside a solar panel and how to go about fixing the problem.
There exists no better adhereent of this principle than the appearance of the seal on a solar panel. However, several factors can contribute to the failure of these seals, leading to moisture infiltration:
1.1 Mechanical stress during Transportation
Solar panels, as products, are mostly moved from the manufacturing point to the usage location over large distances. It has also been identified that throughout the transportation process, panels can experience vibration, shock impacts and movement that place stress on the seals. Should these stresses not be effectively buffered and fastened, they contribute to forming small cracks or even weaken the adhesives that interconnect the different panels of the structure.
1.2 Incorrect Handling
This is true whether during the unloading process, the movement of the equipment, or even during installation, a mistake in handling errors can affect the necessary seal. If during transporting or during the process of connecting the panels, a particular panel is dropped, a certain force is applied on the surface, or the frame is bent, micro leaks in the seal that are not highly conspicuous may occur. Such breaches may increase further with time under some environmental pressures and enable the entrance of moisture.
1.3 that may occur during the mounting of an undeveloped country’s economy is the occurrence of double shift means.
Installation of solar panel system is characterized by-May cause damages the seals of the system since it involves a lot of maneuvering. Excessive tightening of the mounting clamps, misplacement of the holes through which mounting hardware will be passed or alignment of the panels can create undue pressure on the edges and joints of the panels. This stress can cause distortion to some of the seals, or the development of open spaces or gaps at the joints; in either case the seal will fail.
1.4 Operational Stresses
After they are installed they are subjected to different weather conditions. Seal parts are susceptible to heat because a change in temperature leads to material expansion and subsequently stress. For example, in the course of the day the panel becomes and occupies more space than it does at night, when it is cool and contracts. This results in cyclic stresses on the secondary sealing elements, which either may degrade or get loose over time due to heating and cooling cycles if the initial design of the sealing system did not consider for thermal expansion.
All of these can cause damage to the seals of a solar panel and allow moisture into the system.
Moisture inside solar panels is not just a minor inconvenience—it can lead to a cascade of detrimental effects that compromise the panel’s performance and lifespan:
2.1 Corrosion of Metal Grids
High humidity affects metallic parts of solar panels most especially the metal grids through which electricity is conducted. If these components, get exposed to water in any way they start to degrade, this in turn leads to high resistance in the circuits.
The said corrosion does not only undermine the mechanical properties of panels and their configurations but also affects normal electrical continuity and energy output.
2.2 Delamination
Water also affects solar panel physical characteristics and can penetrate panels causing delamination and compromising the solar panel’s structural strength. Decomposition of the laminated layers that comprise the panel is particularly required in this process.
Well, in terms of solar panels, lamination is actually a very important thing, because it means that you would have to safe guard the cells that do most of the PV work. When several layers are aggregated and divided, the detrimental effects intensify along with the exposure of sensitive material to the surrounding environment, and, therefore, the failure to serve the necessary function of an advanced panel effectively.
2.3 Staining of Encapsulants
The housing and encapsulation of photovoltaic cells within modules are also prone to moisture as the used material.
The ingress of water in these encapsulants causes them to become discolored and besides degrading the aesthetic look of PV panels; it also decreases the light transmission of the panels. A reduction of transmittance decreases the facility of the panel to collect light and transferring that into usable energy in a timely fashion.
2.4 Reduced Efficiency
The first and most direct consequence of moisture presence inside a solar panel is a thin water film on the surface of photovoltaic cells. Thus, this layer can prevent the penetration of light, which will otherwise be converted to voltage by reflecting and scattering sunlight.
This water layer can range from 1mm to 30mm and will down the efficiency of the panel from 10-20% and affects the power output greatly the effectiveness of the panels is then diminished making the system costly and uneconomical in the long run.
2.5 Possibility of Electrical Short Circuits
If the inside of the solar panels gets wet, severe cases cause short circuits to occur. Water is an excellent conductor of electricity and can therefore form undesired electrical connections in internal parts of a panel.
These can short-circuit the panel and can lead to failure not only in that particular panel, but in the entire solar array.
Effectively addressing and preventing moisture issues in solar panels requires a comprehensive approach that encompasses regular maintenance, proper installation practices, proactive replacement strategies, and professional assessments:

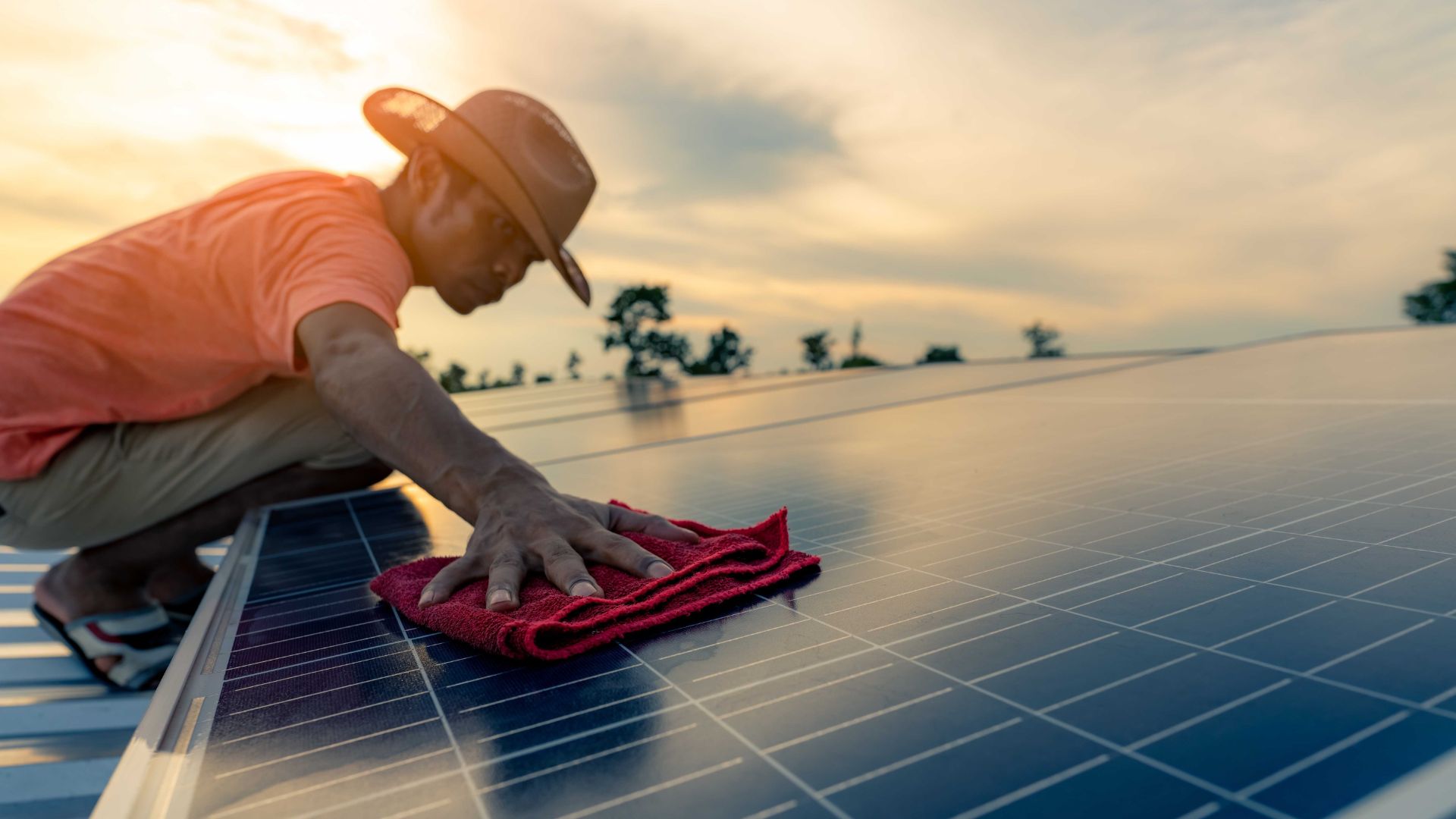

Scheduled Maintenance: This should form a basic guide from which a regimen for inspection shall be developed to enable early detection of any sign of wear and tear, sealant failure, and early onset of moisture ingress. They can be done per season or at least once in 12 months depending on the environment where the solar panel is installed and age of installation.
Detailed Checkpoints: During these inspections the potential concerns are cracks on face of panel and condition of sealant on edges, as well as evidence of discolouration or fogging within the panels, which may be a sign of moisture.
Immediate Action: Whenever there are indications of possible dampness intrusion, signs should indicate the need to address the leaks or fix minor defects before they turn into major problems.
Certified Installers: The other important thing that one should remember at all times is the fact that there are certified solar panel installer’s out there who are experienced in installing these apparatuses. These experts understand the right methods that should be used in order to avoid any harm to these panels during installation.
Installation Guidelines: Check that every installation process obeys the rules and regulations of the manufacturer and meets tough industry standards while accepting installation hardware and method that exerts additional pressure on the panels.
Quality Materials: Ensure you get high quality mounting equipment and use weatherproofing that suits the local climatic conditions so as to minimize other seal failures in the future.
Assessment of Damage: It is also important to determine as often as possible the severity of any identified loss or decline. If a panel looks generally bad, that is, it has moisture damage or has failed seals, its performance must be assessed on the overall system.
Proactive Replacement: Such panels should be replaced as soon as possible to reduces the extensive spreading of harm to other panels and for the efficiency and safety of the system.
Upgrade Options: If you’re making a panel swap, ensure that you put in newer models that could be more resistant to wear and tear and moisture, which will in turn increase the durability of your solar products.
Expert Evaluation: If you find moisture or the panels are old, hire a professional solar panel contractor to inspect your solar panel system. Specialist can apply different methods of detective work that can determine a problem that is not observable through naked eye.
Targeted Repairs: According to the professional assessment, perform those repairings or part replacement that may help in solving the particular problems which have been analysed. It may simply involves with resealing the panel, replacing corroded components, or upgrade the panel system with superior resistant to moisture.
Ongoing Support: It is advisable to partner with a solar maintenance company that is able to offer you continuous consultation once you have installed your solar system so as to make sure that it is in the best working condition for the whole duration.
With these solutions and precautions in place, solar panel owners can greatly reduce the potential for moisture ingress and, with it, put their solar investments, as well as the performance and safety of the entire solar power plant, into a much safer position.
In fact, any signs of moisture within the solar panels should be taken seriously because something is not right. Such, it is important that such concern is dealt with at the soonest time possible by performing inspection, installation, and consulting professionals to manage the efficiency, safety and durability of the solar energy system.
If you feel you’re still having major woes with moisture that last for a while, you may want to consult with a solar panel technician who can address your particular situation to the best of his/her abilities.
