Introduction
Young readers will discover essential differences between two methods to connect solar panels.
Series and Parallel Connections show both positive and negative attributes.
Establishing solar panels using series connections or parallel arrangements depends on your current power requirements.
Common Issues and System Optimization in Series and Parallel Connections
Conclusion
Before you install solar panels you aim to get the highest possible energy output from them. The configuration method of solar panel wiring inside your system significantly influences their performance output. Wired solar panel configuration determines both current patterns and voltage distribution as well as the total power efficiency of your solar power network. The appropriate wiring setup depends on three key elements which include system dimensions alongside geographic position and total energy consumption. The essential distinctions between parallel and series wiring systems are analyzed to determine the best configuration for maximizing solar energy output.
The core decision for solar power system implementation requires knowledge about how series wiring differs from parallel wiring methods. The system behavior regarding voltage and current operations relies on selecting between these two wiring arrangements.

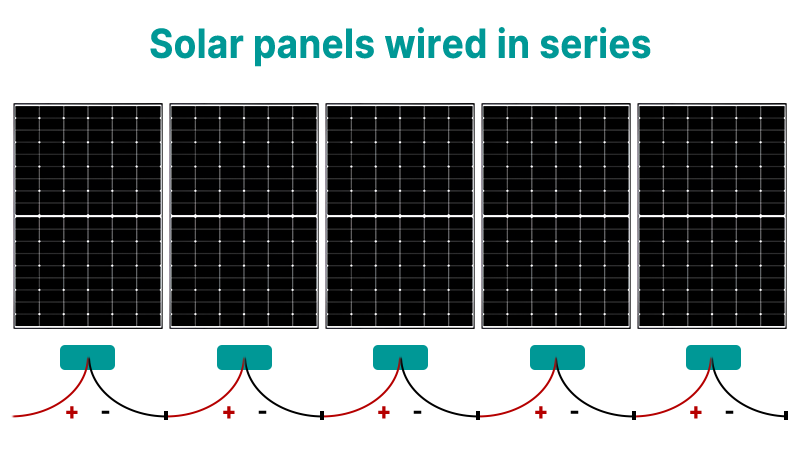

When solar panels are arranged in series configuration they are connected one after another so their positive terminals face the negative terminals of adjacent panels. The voltage strength raises in this configuration while the current flow remains identical to a single panel.
Every voltage generated from each panel accumulates but the current flow remains steady.
The voltage increases by 20 volts so series connection of three panels results in 60V with 5A flow.
The requirements of systems with string inverters make series connection the preferred option for producing higher voltage. The increased voltage in parallel connections enables efficient distance-based power transmission by minimizing energy losses that would occur due to high current.

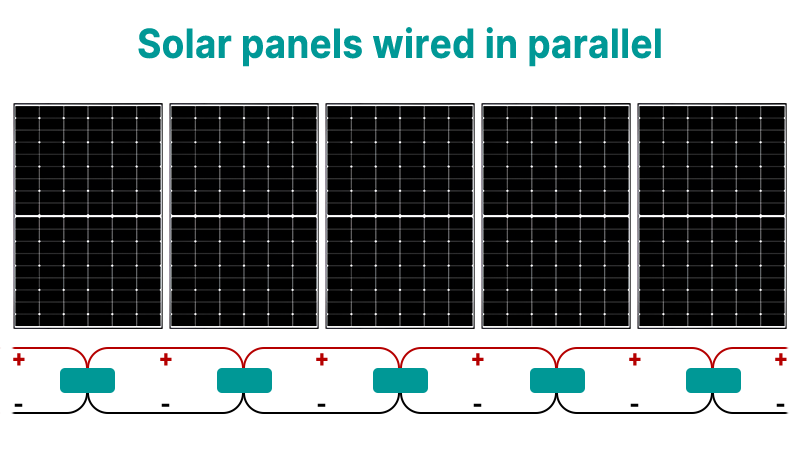

The positive terminals among all solar panels combine together in parallel connections while the negative terminals combine together as well. Such a layout maintains a steady voltage according to single panel specifications.
A single solar panel operates at its original voltage value when connected to the panel. The current level rises incrementally by adding additional panels.
The total current rises through addition without affecting the maintained panel voltage.
A combination of three parallel panels produces 20V and 15A because every panel delivers 20V and 5A in this arrangement.
Multiple applications depend on parallel connecting method for their operation since it allows devices like MPPT (Maximum Power Point Tracking) charge controllers and batteries to draw increased current flow for enhanced efficiency during operation.
The series connection produces elevated voltage output which makes it the optimal choice for on-grid installation systems. For systems that need additional voltage more than increased current these connections should be used.
The electrical efficiency benefits from series connections because power loses lower amounts when transmitting energy across extensive distances. The transmission of voltage occurs more efficiently than current transmission.
A series electrical configuration enables cheaper and more compact circuit wiring because of its reduced current requirements.
The transfer of voltage through these connections performs better on long distances which makes series configurations appropriate for extensive cable networks.
The complete array output depends entirely on the working condition of every individual panel. A single shaded or nonfunctioning panel reduces the output levels of the entire system. The parallel or hybrid connection system stands as a better choice for areas where shading occurs frequently.
The voltage levels in series-connected systems become elevated since connected panels amplify voltage while posing safety risks unless proper handling measures exist. Professional expertise should handle high-voltage system installation because it requires certified professionals.
The current of each solar panel combines in parallel connections to produce stronger power levels without altering the system voltage.
The impact of shade affects only the individual solar panel output in parallel systems while the rest of the power output remains constant. Parallel connection installations prove better at resisting shading impacts because the system output remains unaffected by single panel shading.
The voltage output in parallel arrays remains constant even when additional solar panels get connected. The parallel configuration works well with low-voltage systems while it helps prevent inverter overloading.
The system becomes easier to expand when you add more panels in parallel configuration because inverter voltage capacities remain unaffected.
The efficiency rate of parallel systems decreases when operators use them for extensive power installations as higher currents produce increased power losses along longer transmission areas.
System performance through parallel connections is more strongly impacted by sources of heat in the environment. The system sensitivity to temperature-induced performance decreases when current drops become lower.
Parallel wiring necessitates heavier cables that carry increased energy but the installation becomes more expensive and longer cable distances cause power losses.
The system should utilize Series configurations when it needs elevated voltage supply and faces minimal shading problems and extended cable distances.
Example:
You need to connect eight powersourcing panels rated at 20V and 5A each in series to accomplish the 160V requirement of your inverter in a residential grid-tied system. When utilizing a PWM charge controller the system voltage must equal the battery voltage level which can be 12V, 24V or 48V. A MPPT charge controller operates more effectively because it modifies the voltage to pull out peak power from the panels irrespective of battery voltage variations.
Series Setup:
8 panels x 20V = 160V(current remains 5A).
The desired objective for this arrangement becomes achieving minimal power losses through cable resistance when there is minimal shading in combination with extended distances between panels and inverter.
The MPPT charge controller would adapt the incoming power from 160V to find the best charging potential for your battery to optimize both energy gathering and system efficiency.
The setup design operates effectively for high-voltage systems which use grid inverters or systems demanding elevated voltages.
System installation should use Parallel when shading affects the area or when lower voltage or flexibility for expanded capacity is necessary.
Example:
The battery storage system consists of four powersourcing panels with a 20V 5A rating installed on a shaded rooftop where you choose parallel wiring to hold the necessary 20V system voltage.
Parallel Setup:
A total of 20A results when current meets (5A + 5A + 5A + 5A). The voltage stays at 20V.
The configuration enables each panel to make use of available sunlight regardless of the shading condition affecting one or two panels.
A PWM charge controller maintains charging at system voltages such as 12V or 24V but performs less efficiently than an MPPT controller because the MPPT adapts to high solar array voltages to extract maximum power for efficient charging.
Systems using low-voltage battery power benefits the most from parallel connections which produce steady 12V and 24V outputs.
The Series-Parallel Hybrid design serves systems with mixed sun exposure that requires voltage and current harmony.
Example:
The hybrid connection technique becomes optimal when 12 powersourcing panels rated at 20V and 5A each operate in a commercial solar power plant which occupies roof area with shade coverage.
Series Setup (for half the panels):
6 panels x 20V = 120V(current remains 5A).
Parallel Setup comprises the remaining six panels that permit a current total of 30 amps.
The total voltage reaches 120V because six panels are used in series with 20V transformers and the current summation equals 30A (5A + 5A + 5A + 5A + 5A + 5A).
Hybrid Setup Outcome:
Through this setup both high voltage for efficient power transmission and parallel arrangement that protects shaded panels from output reduction are achieved.
A MPPT charge controller automatically controls the panel voltage to an appropriate charging range for the battery while extracting the maximum power from these combined series and parallel connections.
The combination of shading areas and sunlight creates an excellent situation for large installations which offers voltage and current adaptability.
Your system configuration selection requires an assessment of voltage, shading levels and distance alongside consideration of PWM or MPPT charge controller type to achieve maximum performance potential. Working with qualified solar professionals will help you choose the best setup for your solar power system.
The selection between series and parallel connections in photovoltaic systems influences both the system performance level as well as maintenance requirements and system costs and safety parameters and installation quality standards. Studying typical problems together with proper maintenance strategies and system fault detection procedures and system cost evaluation and installation practices and safety protocols leads to better system performance alongside reliability enhancement. We will analyze the essential matters and corresponding solutions in this section.
When solar panels are connected in series the overall voltage accumulates without changing the current flow. A series connection arrangement provides the important benefit of increasing voltage output making it best suited for transmitting electricity over long distances. Every component failure affects the complete system because this design shows strong sensitivity to all module breakdowns. The entire system shows a direct negative impact when one defective module appears regardless of whether it suffers from shading or aging or shows damage. During maintenance it is essential to check voltage output from each solar panel through regular inspections. Common issues include:
A single module operating with lower voltage reduces the overall performance of the connected series circuit.
System stability gets jeopardized when weakened connections occur between terminal joints or cables because they lead to unstable current flow and potential short circuits.
Contaminants on the module surface create blockages that decrease light transmission which results in reduced power generation capability.
The current within parallel connections accumulates independently among modules without altering the overall voltage. Parallel connection offers module independence which means that one failed module will not disrupt other modules allowing for higher system redundancy. System current overload happens when too many parallel panels are connected which leads to equipment damage and overheating. Parallel connections experience two primary operational problems as follows:
The connection of many panels in parallel raises current loads beyond design strength which puts electrical components at risk of damage.
High current flows can wear down wire connections thus causing them to become loose which results in electrical problems that affect system stability.
One failed module results in power loss for the system though it will not trigger complete shutdown.
The cost of capital investment for initial setup is reduced through series connections because they require basic electrical wiring. Different modules for cables together with connectors result in an initial investment price of €250 to €350 per kilowatt peak (kWp). Installation costs for the system range between €150 to €250 per kWp while maintenance invoices fall within €150 to €250 per kWp. An average original capital expenditure for this system falls between €2,000 and €3,000. Annual maintenance expenses for the system vary from €250 to €400 due to its vulnerability to module failures and will continue to rise during extended periods. The replacement cost of modules stands between €1,200 to €1,500 while row maintenance takes place approximately every 10 to 12 years. The initial cost of series combinations remains affordable yet their lengthy maintenance cycle often increases the complete system expense.
The implementation of parallel systems demands increased initial investments because it needs multiple cables together with connectors and inverters. The cost of cables together with connectors runs between €300 and €400 per kWp. A parallel system depends on powerful inverters and protective components that lead to expenses between €250 and €400 per kWp. The cost of labor expenses amounts to €200 to €300 per kWp. The minimum amount of money needed for the first investment in a parallel system exceeds €3,500 and reaches up to €5,000. Parallel systems provide additional reliability that decreases equipment breakdowns which results in less yearly maintenance expenses between €200 and €300. A parallel connection shares comparable replacement expenses with series networks at €1,200 to €1,500 and module replacements happen during a span of 12 to 15 years. A parallel connection system requires bigger upfront costs yet shows better long-term financial performance due to its durability and cost-effective maintenance needs.
Security guidelines matter most for selecting the wiring setup for solar panel networks. Safe operational stability depends on proper electrical design along with correct installation of solar panel connections both in series and parallel and hybrid set-ups.
The higher output voltages from series-connected panels necessitate that inverters and circuit breakers and cables endure elevated electrical stress thus preventing dangers caused by overvoltage.
The implementation of parallel connections demands wires that satisfy current carrying limits together with overcurrent protection equipment for fire risk prevention.
The protection of hybrid series-parallel connections requires establishment of proper voltage and current balancing characteristics. System stability and fault prevention result from installing both overvoltage devices and overcurrent protection devices together with the Battery Management System (BMS).
Higher temperatures and humid conditions within the environment will negatively influence the way solar modules function. The system remains safe in harsh weather when heat dissipation materials along with waterproof designs are utilized.
Multiple elements influence your solar panel wiring selection when determining between series or parallel arrangement. In series wiring systems you achieve higher voltage output which suits distant wiring applications while parallel wiring creates stronger current output best suited to maintaining reliable power output. Choosing the most appropriate configuration between series and parallel wiring results in decisive effects on your solar energy efficiency together with system performance. To achieve the best results you need to arrange professional consultation for solar energy so they can select the suitable wiring scheme for your specific application and ensure maximum power generation.
