Views: 19 Author: Site Editor Publish Time: 2025-03-05 Origin: Site
The research investigates solar inverter noise production while analyzing its root causes alongside its impact on domestic living areas together with regulatory standards and its effects on system performance. It presents strategies for noise level control to ensure excellent solar power consumption.
Every solar energy system depends on solar inverters to transform the solar panel-generated direct current power into alternating current energy that houses and businesses can use.
A solar inverter's operational noise level remains a vital component for user contentment and system performance although people commonly disregard this element.
The article investigates solar inverter noise generation while examining factors that affect noise levels together with the consequences of such noise and noise reduction techniques for solar installations.
The primary sources of noise from solar inverters are the operating cooling fans together with the switching process in power electronics. Solar inverters produce sounds which might become audible in residential areas without substantial industrial noise during their peak functional hours.
Solar inverters require their cooling fans to operate because they ensure both safe temperatures and efficient operation. Cooling fans make low-level sounds but work at higher intensities when inverter efficiency rises and when the environment is hot.
Every component within solar inverters affects the noise output because of their design and fan rotation speed and motor quality.
A conversion of DC into AC power occurs when inverters use fast switching electronics to transform electricity. When power flows through the coil during switching operations it produces a noise effect called 'coil whine' which occurs because currents trigger coil vibrations.
The noise properties vary depending on the quality of components in the inverter in combination with the size of the handled loading.
Decibels (dB) serve as a measurement system for noise since they show the relationship between specific sound pressure and a benchmark reference pressure.
The noise measurement methodology provides professionals with an objective method to determine the sound intensity output of inverters.
The sound intensity of inverter devices matches the 20 dB level found in silent rural areas but stands lower than the average 60 dB of regular speaking voice.
Most solar inverters generate sounds which fall between 25-55 dB. The noise output of inverters exists at a level that proves quite quiet versus numerous household appliances and industrial machines even though individual perception of sound varies based on various elements.
Inverter noise generates different degrees of disturbance for people because their sensitivity to sound interacts with environment acoustics and surrounding noises.
When an inverter produces 40 dB in a noiseless rural area its noise becomes obvious whereas this sound gets lost in the urban environment where background noises dominate.
Ears of humans detect specific frequencies more easily than other sounds. Inverters generate the 'coil whine' noise which features higher pitched frequencies compared to cooling fan resonance thus resulting in more audible and bothersome sounds even though both sounds exhibit equal decibel levels.
Solar inverter operation noise depends on multiple elements which affect its level. These factors influence the noise forming process and sound intensity perception together with environmental and human effect measurement.

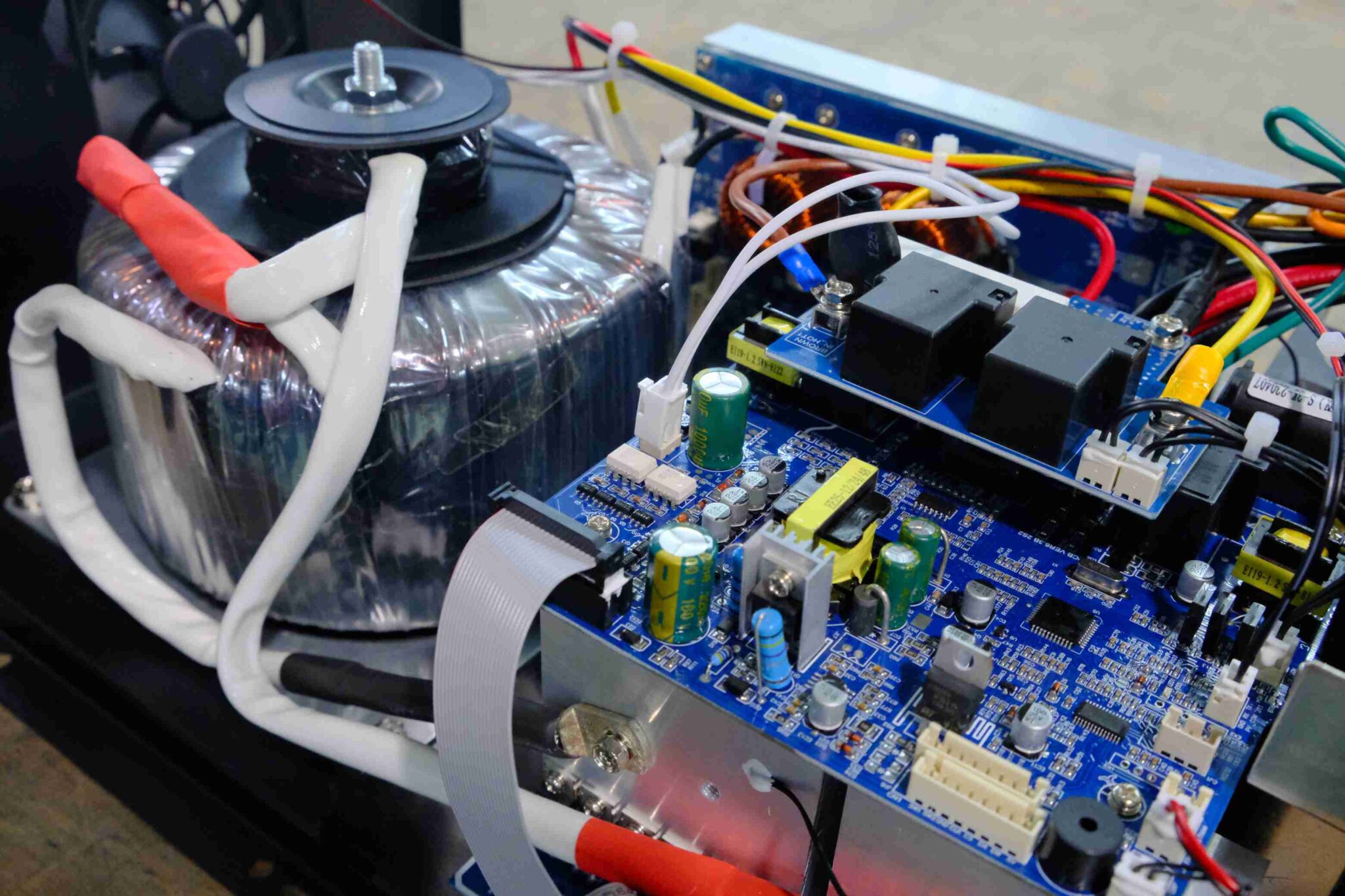

Electronic noise amount depends heavily on the quality standards achieved by internal components such as capacitors and inductors. When electronic interference occurs components with high quality can reduce noise production during operations.
The physical components of the inverter device have a substantial effect on its overall functioning. The design of noise reduction inverters incorporates features which incorporate vibration dampeners together with noise-reducing enclosures to minimize sound emissions toward the environment.
The way people perceive noise depends heavily on the loudness elements of the site where the equipment is installed. Concrete walls tend to reflect sounds but the presence of garden foliage helps to mitigate the sounds coming from the inverter.
The exact closeness of inverter installations to residential and commercial zones needs careful evaluation. Inverters located near buildings will create more disturbance because their sounds will be more apparent.
Additional noise in the environment impacts how people perceive inverter noises. The inverter's sound meets different reception levels depending on the noise density of one's environment since urban areas pile sounds over each other whereas urban and rural areas amplify minor inverter emissions.
The heat increases the efficiency decreases of inverters which requires stronger cooling fan performance to achieve optimal efficiency. When the active status increases it results in amplification of operational noises. Radiated noise levels depend on both the specific cooling system design and the dimensions and amount of its fan systems as well as its airflow distribution.
The inverter's components will extend and contract under wide temperature swings thus causing the mechanical fittings to become loose and generate more noise as time progresses.
The intensity of power demands onto the inverter system creates substantial effects on its noise production. Inverters produce elevated noise when they run at maximum output or when they approach maximum capacity because this requires enhanced cooling systems and increased electronic operations.
The operational modes of certain inverters include night mode and low-power mode that reduce noise when users require reduced performance levels.
Continuous component deterioration in the inverter can generate increased noise because components wear out. The noise level of cooling fans increases when their bearings develop reduced smoothness.
Regular maintenance schedules will help minimize this problem somewhat. The overall noise output of inverters depends directly on the level of their planned maintenance service.
Solar inverter noise does not reach excessive levels but affects three specific areas including residential spaces and regulatory requirements and system status inspections. Homeowners alongside installers and manufacturing companies need to understand these implications to achieve system performance excellence combined with user satisfaction.
Inverter noise creates disturbances that affect residential communities where residents put high value on their noise environment. An improperly installed inverter of low quality will produce minor noises that break down residential peace so sleep and relaxation and focus become difficult to maintain.
The loud sounds coming from solar inverter installations may reduce the market value of nearby properties. People who plan to buy homes may stay away from properties with solar equipment if their perceived noise levels interfere with the peaceful characteristics of the neighborhood.
Majority of municipalities establish their own noise handling rules which establish max noise thresholds. Non-adherence to regulations leads to monetary fines and possible legal proceedings along with the need to spend money on modifications to solar installation systems.
Sustaining positive bonds with neighbors and residents in the entire community stands as an essential factor above adherence to legal standards. The excessive noise from solar energy installations will generate complaints and conflicts that block solar adoption in residential neighborhoods.
A persistent abnormal or loud noise from the inverter can indicate future system malfunctions that might result from mechanical wear or electrical breakdown. Homeowners and maintenance personnel can avert escalating problems by monitoring changes in inverter noise attributes.
The process of monitoring inverter noise leads to enhanced solar system durability and peak operational efficiency. Metering and addressing noise-related problems swiftly protects inverter functionality together with all its connected elements and maintains peak system output.
The unimpeded integration of solar energy systems depends heavily on correct inverter noise management techniques because residential areas generally demonstrate increased sensitivity to noise.
The maximum separation of inverters from living and bedroom areas will effectively minimize noise disturbance. Placing inverters in a specific direction that moves acoustic emissions away from nearby residential zones proves to be advantageous.

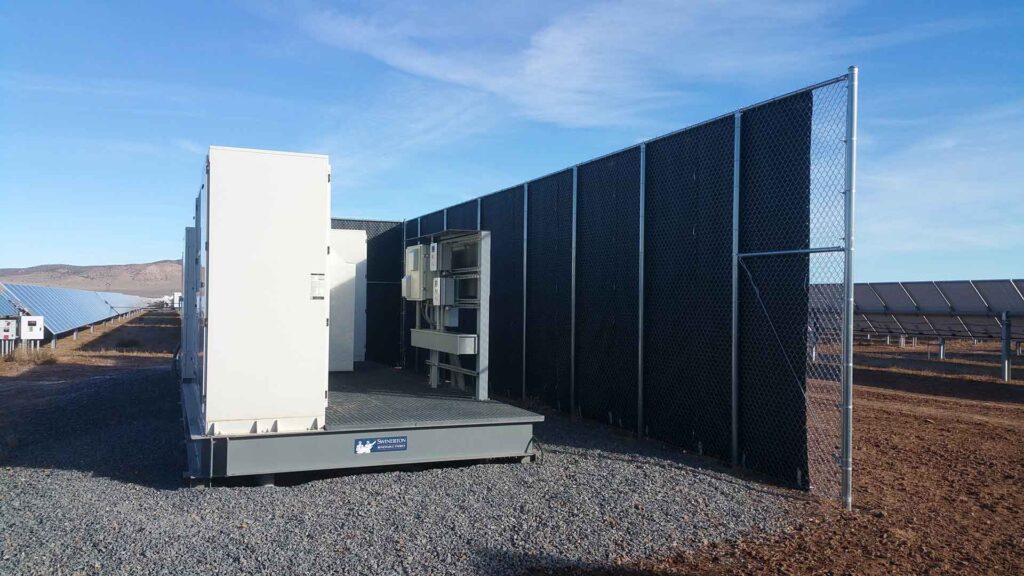

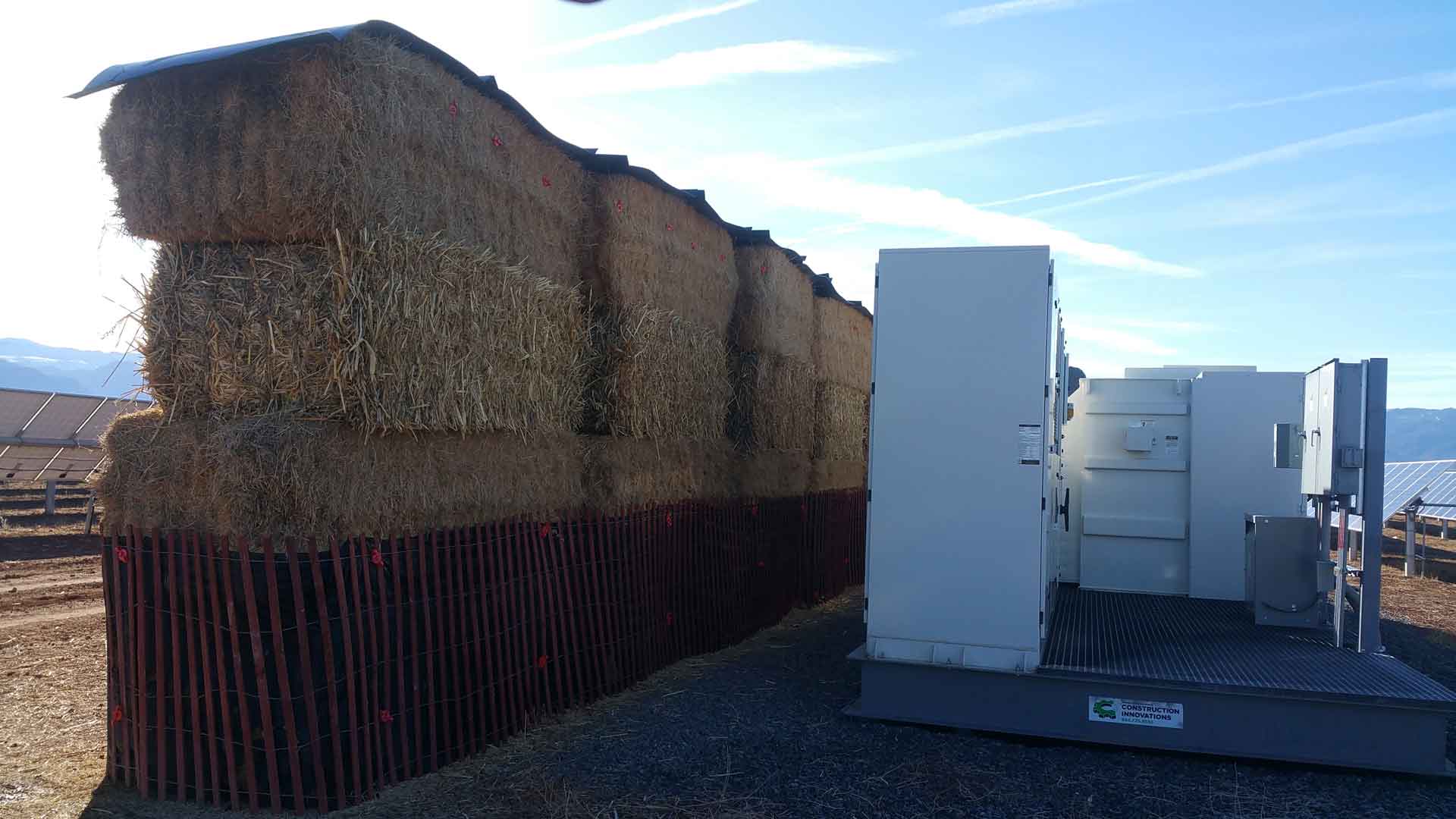

Barriers and enclosures function both as sound containment systems and sound absorption units when used to minimize noise levels. The use of mass-loaded vinyl alongside acoustic foam together with dense shrubbery functions well to reduce noise. Security measures should be implemented to maintain airflow while avoiding any negative impact on the inverter's cooling system.
The design phase of new buildings should include utility areas for inverter placement according to architectural recommendations that reduce noise impact. Soundproofing retrofit solutions exist for existing structures along with options for redesigning the surrounding areas of the inverter system.

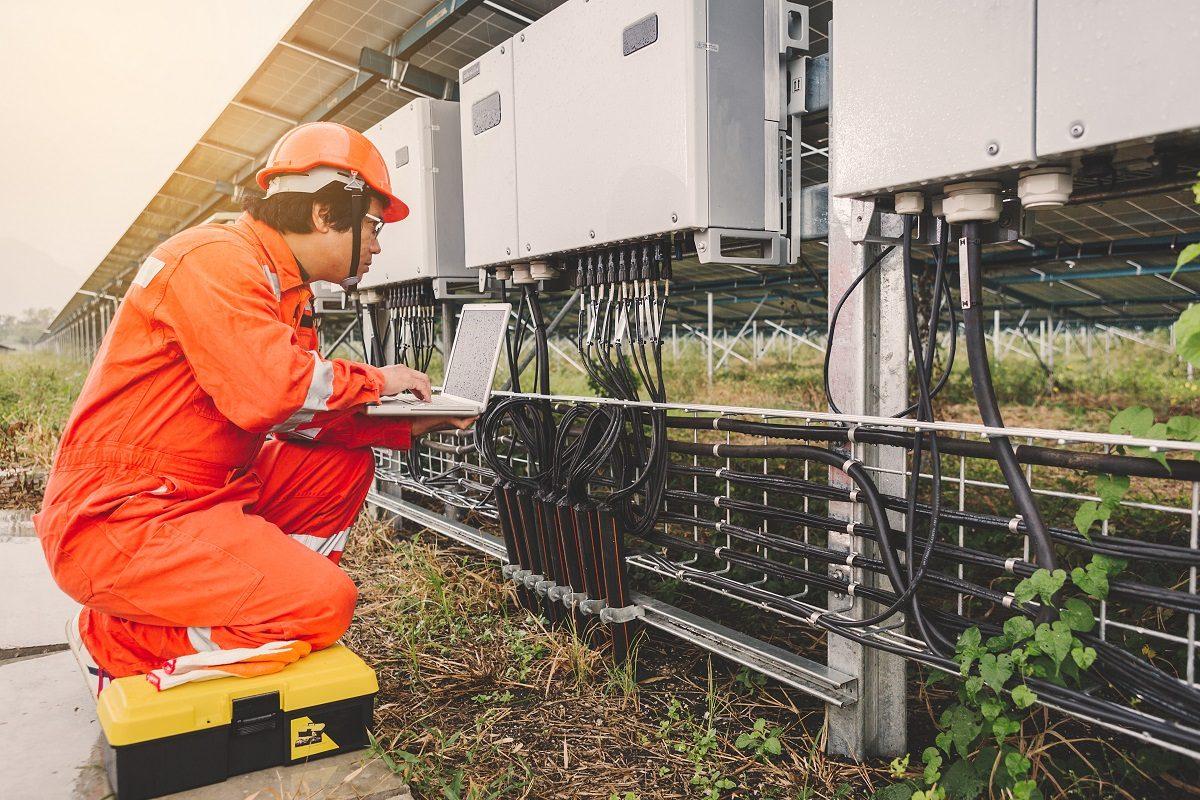

Continual inspecting and proper maintenance of inverters through regular checks protects against noise problems triggered by unfastened components and deteriorating fan bearings and debris build-up.
Durable components used during maintenance procedures provide higher operation quality and reduced noise level. The deterioration rate of substandard parts leads to faster noise development.
Professional service providers should perform regular checks with their clients to diagnose noise problems effectively while keeping the inverter within its acceptable noise limits.
Liquid cooling systems offer better sound management than fans when used to cool high-power inverters. The systems enable better heat management while doing so without sound production.
The constant sound output can reduce through improved fan technology which includes aerodynamic enhancements and noise-diminishing elements combined with variable speed features. The implementation of technology that controls fan operation during specified periods will help decrease noise emission periods.
Thermal Management designs in inverters enhance efficiency which minimizes the number of active cooling system engagements and thus decreases overall noise production.
Customers must review decibel values in noise level ratings when searching for new inverter products. The choice of inverters with lower recorded decibel levels leads to notable acoustic reductions.
Some manufacturers incorporate advanced circuits into their inverters to eliminate electronic noise while also building them with passive cooling technology along with noise-dampening materials for noise reduction purposes.
The sound level of solar inverters depends on the correct selection of inverter capacity relative to power installation magnitude. A large inverter will operate less because it requires less strain thus generating less operational noise.
The suppression of inverter noise requires implementing multiple strategies which combine maintenance protocols with technical improvements of inverters alongside proper site placement decisions.
The strategies allow solar energy users to maintain fundamental noise-free systems which produce a harmonious environment between technological progress and comfortable spaces.
1. Does the age of a solar inverter affect its noise production?
Over time, wear and tear can impact the noise level of an inverter. Components like fans may become noisier as they age.
2. Is there a difference in noise levels between string inverters and microinverters?
Microinverters tend to be quieter generally because they are smaller and require less cooling, but the specific noise level can vary depending on the model and brand.
3. Can I install noise reduction accessories after the inverter is already installed?
Yes, there are aftermarket solutions like acoustic enclosures and anti-vibration mounts that can be installed to reduce noise.
4. Are solar inverters with lower noise levels more expensive?
Not necessarily. The price is more often determined by the brand, efficiency, and additional features of the inverter rather than its noise level.
5. Can the mounting method of the inverter affect its noise level?
Yes, the way an inverter is mounted can influence noise. Hard mounting surfaces can transmit more vibration and noise, while mounting with vibration dampeners can reduce noise.
6. Do solar inverters require more maintenance than other components of a solar system?
Inverters do require maintenance, but it’s comparable to other components of a solar system. Regular checks and cleanings are essential for optimal performance.
7. What is the typical lifespan of a solar inverter, and how does it compare to solar panels?
Solar inverters typically have a lifespan of around 10-15 years, which is shorter than solar panels that can last 25-30 years. Inverter technology and environment can influence lifespan.
8. Are there any health implications related to the noise produced by solar inverters?
The noise levels of solar inverters are generally low and not considered harmful to health. However, consistent exposure to high noise levels can be disruptive, so it’s best to manage inverter noise effectively.
The backbone of modern solar energy systems consists of solar inverters but users need to examine their noise output to achieve both functional performance and comfort. The knowledge of inverter noise origins and effects enables users and installers to select proper devices and execute installation activities and routine maintenance effectively.
