Starlight Series BIPV – Advanced Solar Integration

Seamless Light Transmission and High-Efficiency Power Generation

    Brand

   CZ powersourcing

    Model

   EM-N28MI
EM-N54MI

    Type

   Starlight Series


    Demensions

   1350*765*11mm
1735*1185*11mm

    No. of cells

   4*14
6*18

    Weight

   17.5kg
28kg

    Lead Time

   45 Days


Product Description

54HL4R-B banner

   Item

EM-N28MI

EM-N54MI

  Color

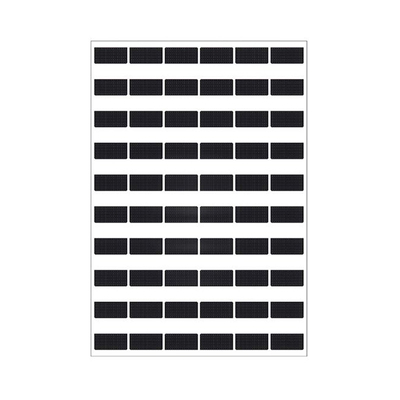

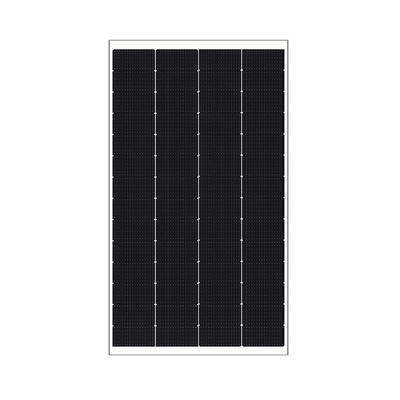

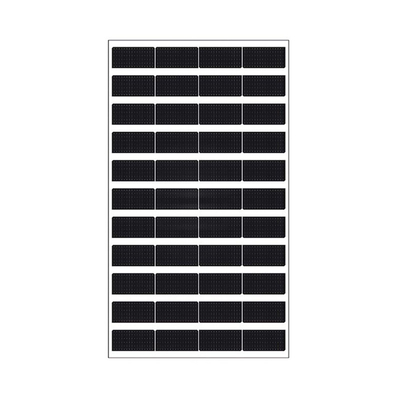

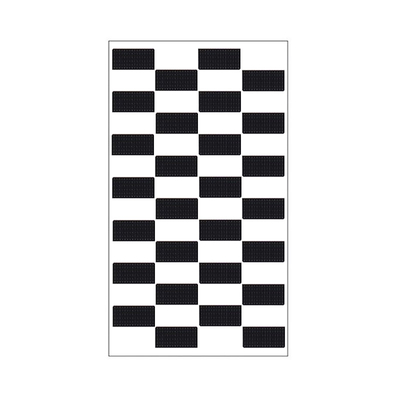

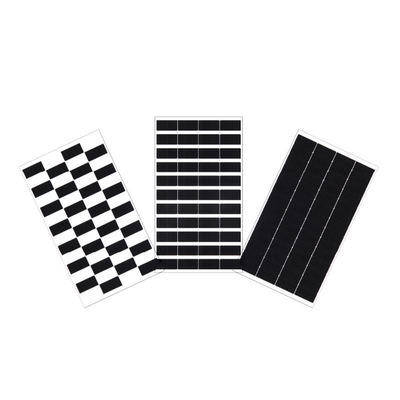

Type1 Type2 Type3 Type1 Type2 Type3
  Light transmittance 10% 30% 55% 13% 32% 56%

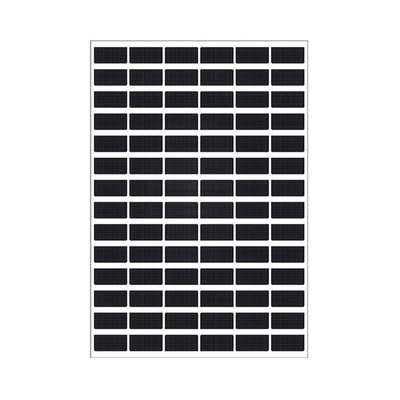

  No. of cells 4*14 4*11 4*7 6*18 6*14 6*9
  Max. Power (Pmax) 225 175 110 435 335 215
  Open-circuit Voltage (Voc) 20.11 15.80 10.05 38.63 29.93 19.31
  Short-circuit Current (lsc) 14.43 14.43 14.43 14.37 14.31 14.37
  Max. Power Voltage (Vmp) 16.64 13.34 8.76 31.95 26.50 16.82
  Max. Power Current (lmp) 13.67 13.40 12.99 13.62 13.56 12.94
  Module Efficiency STC (%) 21.79% 16.95% 10.65% 21.16% 16.29% 10.46%
  Glass material/ Thickness Tempered glass /5mm (Customizable)
  Packaging material PVB
  Junction box protection level IP68
  Cable length/Conductor cross-sectional area (+)350mm;(-)250mm;Customizable/4mm²
  Connector type/protection level MC4 compatible/IP68
  Packing method L-frame/Wooden box (Customizable)
  Demensions 1350*765*11mm 1735*1185*11mm
  Cell size 182*91mm 182*91mm
  No. of cells 4*14 6*18
  Weight 17.5kg 28kg

BIPV project one-Stop solution provider


  • Self owned solar cell&moudle production line
  • Customized production
  • PV design, curtain Wall design
  • Qualification for PV and Steel structure construction

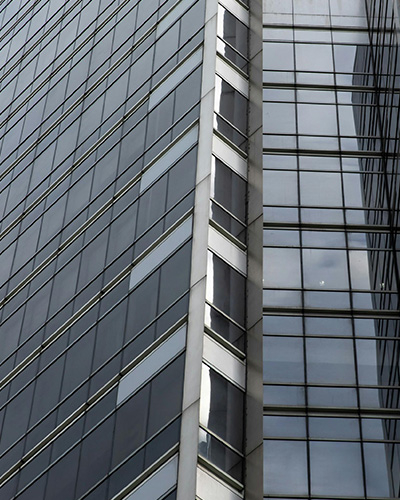

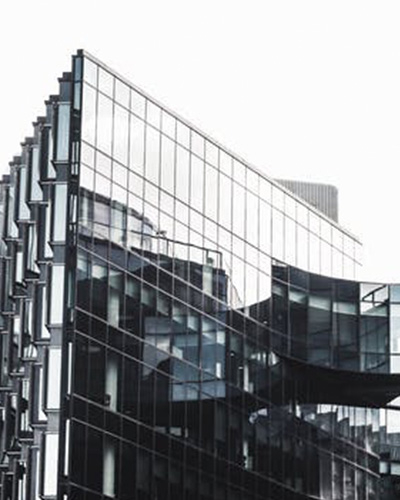

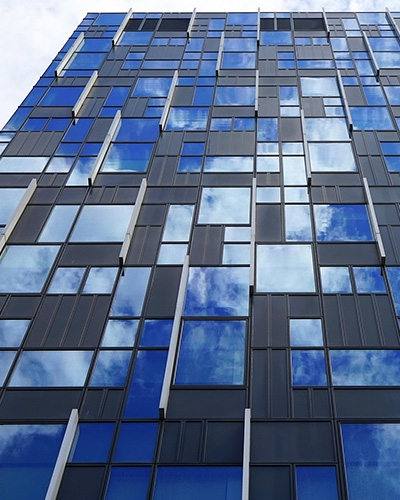

BIPV——Starlight Series Cases
