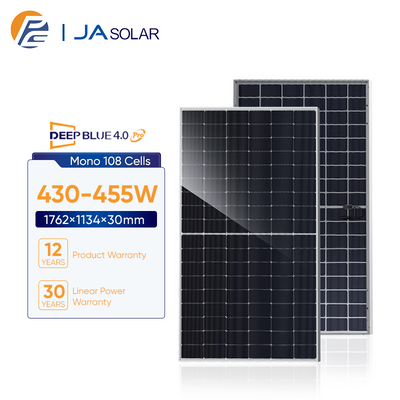

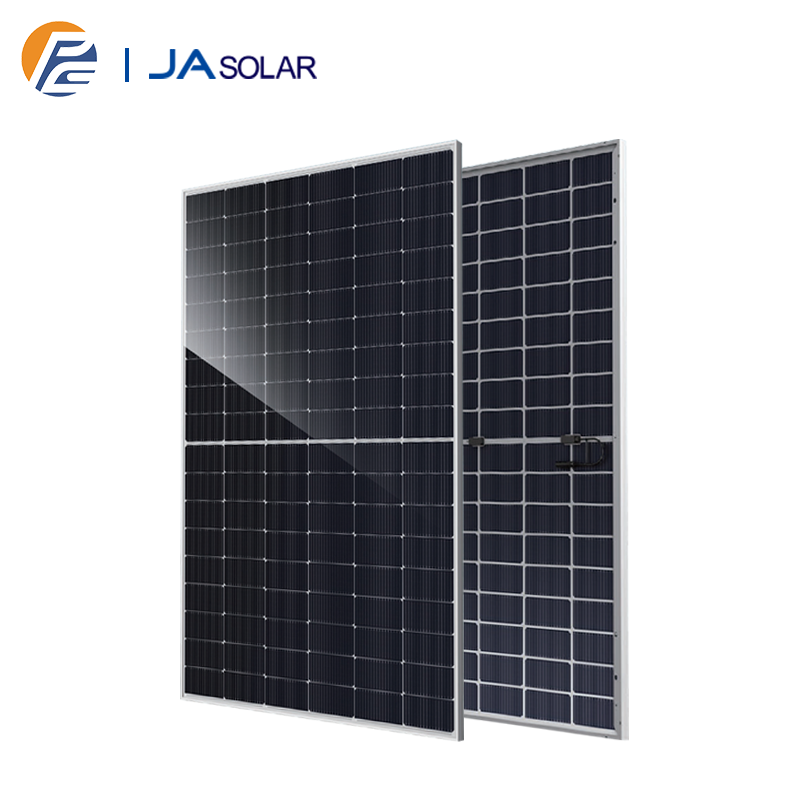

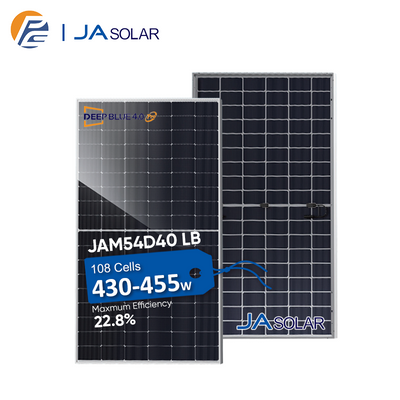

JA Solar JAM54D40 LB　　　430-455W

N-Type Double Glass Bifacial Modules

Module Number	JAM54D40 LB
Brand Name	JA
Panel Dimensions	1762×1134×30mm
Weight	22.0kg
Warranty	12 years
Certificate	CE, TUV, IEC
Packing Detail	36pcs/pallets
Number of cells	108（6×18）

Inquiry Now

Download

Product Description

455W

N-Type

JAM54D40 LB

22.80 12 30

<%> <Years> <Years>

Module Efficiency Product Warranty Power Warranty

Item	Value
Cell	Mono
Weight	22.0kg
Dimensions	1762×1134×30mm
Cable Cross Section Size	4.0mm²(IEC), 12 AWG(UL)
No. of cells	108(6×18)
Junction Box	IP68, 3diodes
Connector	QC 4.10-351/MC4-EVO2A
Cable Length (Including Connector)	Portrait: 300mm(+)/400mm(-) Landscape: 1200mm(+)/1200mm(-)
Front Glass/Back Glass	1.6mm/1.6mm
Packaging Configuration	36 pcs/pallets, 936 pcs/40'HQ Container
Maximum System Voltage	1500V DC
Operating Temperature	-40℃~+85℃
Power Tolerance	0~+3%
Maximum Series Fuse Rating	30 A
