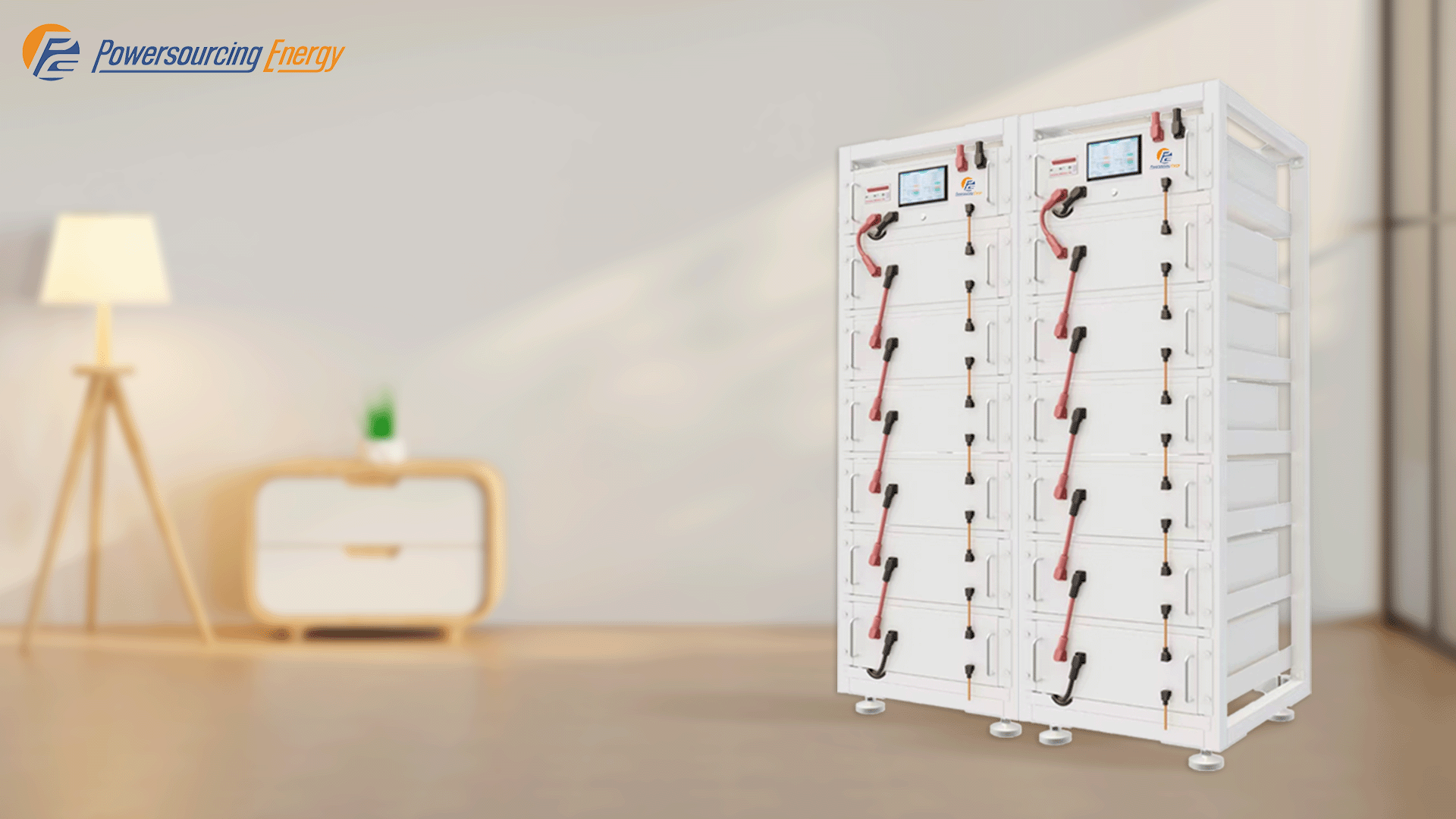

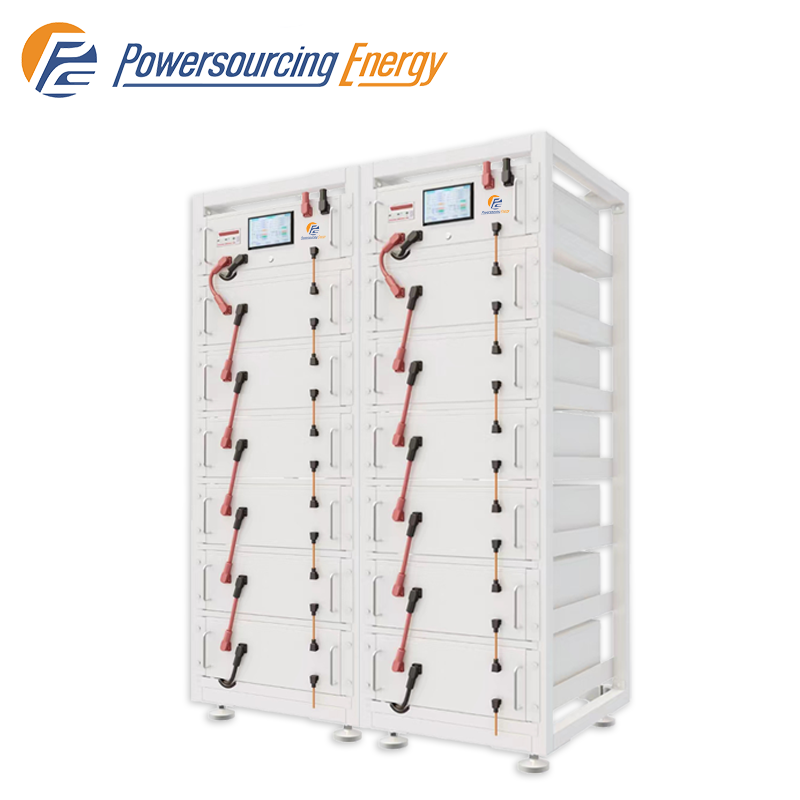

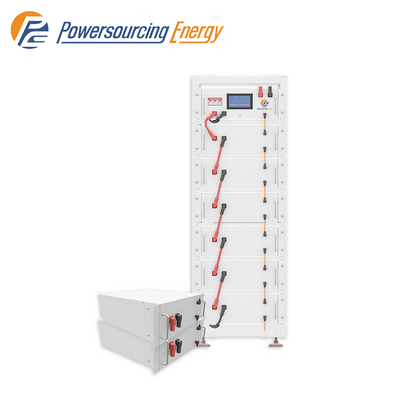

High Voltage Cabinet ESS Batteries

Czpowersourcing 144V/192V/240V/288V/336V/384V 100Ah Lithium Battery 14.4/19.2/24/28.8/33.6/38.4kWH

Cell Type	LiFePO4
Nominal Voltage	144V-384V
Nominal Capacity	100Ah
lP Protection	IP54
Cycle Life	≥6000 tims
Lead Time	20 days
Warranty	5 years

Inquiry Now

Product Description

Cabinet ESS Batteries

14.4KWh~38.4KWh

High Voltage

Inquire now

Energy Storage System

Datasheet	HVM-14.4KWh	HVM-19.2KWh	HVM-24KWh	HVM-28.8KWh	HVM-33.6KWh	HVM-38.4KWh
Number of Modules	3	4	5	6	7	8
Nominal Voltage	144V	192V	240V	288V	336V	384V
Battery Capacity	100Ah	100Ah	100Ah	100Ah	100Ah	100Ah
Battery Energy	14.4KWH	19.2KWH	24KWH	28.8KWH	33.6KWH	38.4KWH
Battery Voltage	144V	192V	240V	288V	336V	384V
Standard Charge/ Discharge Current	20A	20A	20A	20A	20A	20A
Size(W×D×H)	548×584×921mm	548×584×1116mm	548×584×1311mm	548×584×1506mm	548×584×1701mm	548×584×1896mm
Weight	~264kg	~306kg	~348kg	~390kg	~432kg	~500kg
General
Battery Type	LFP
Nominal Voltage	144V-384V
Operating Voltage Range	126-438V
IP Protection	IP21
Installation	Cabinet holding
Operation Temperature	Charging: 0~60°C; Discharge: -10~60°C
Features
Communication Port	RS485/CAN
Waranty	5 years
Grade A quality LiFePO4 battery, more than 6000 cycles in 80% DOD @25°C Battery discharge: -10°C~60°C, battery charge: 0°C~60°C Compatible with 144~384V high voltage inverter/UPS

Higher cycle, longer life
Large capacity, high charging and discharging
efficiency, more than 6000 cycles

BMS intelligent protection
The new A-grade lithium iron phosphate
battery cell is safe and reliable

Modular design
Modular design, parallel expansion, flexible
choice of voltage and capacity

LCD display
LCD display, dynamic display of
system operating status data

Skewers and use
Externally it can be skewered and
used

RS485/CAN communication
It supports RS485 and CAN
communication at the same time

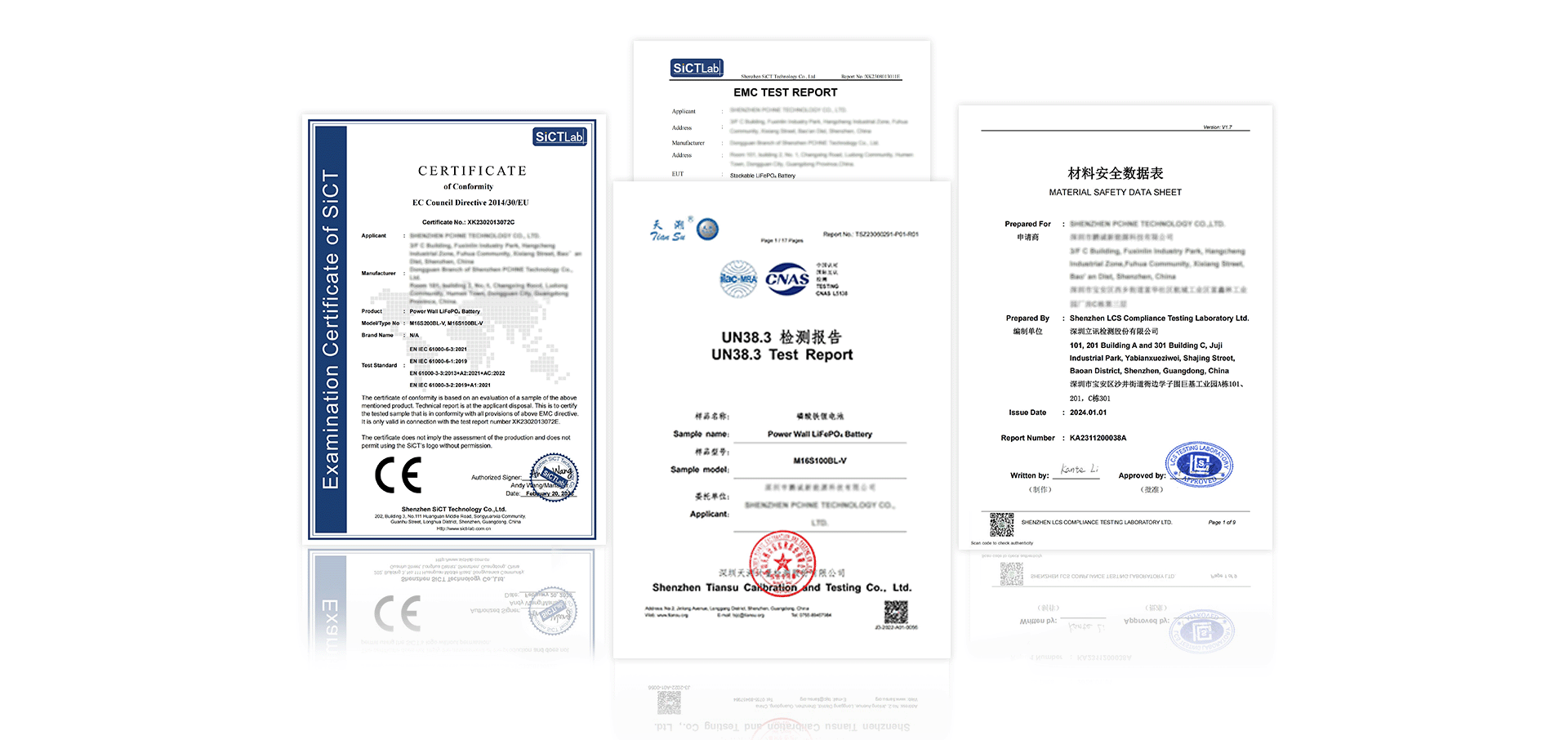

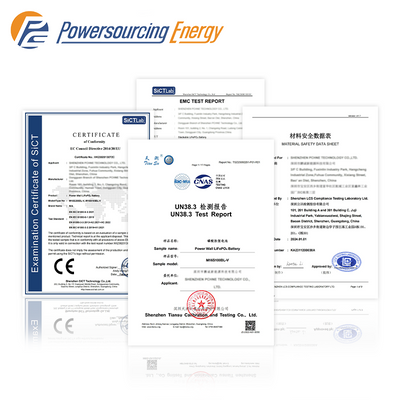

Certification

UN38.3

MSDS

EMC

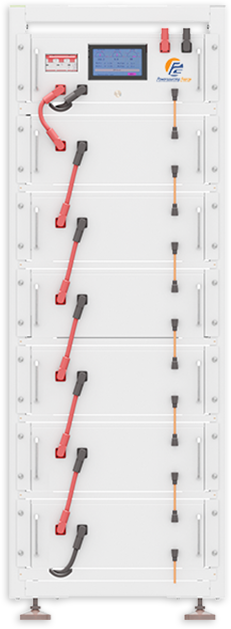

1	LCD display	6	M6 Negative terminal (2pcs)
2	Battery module	7	Box handle
3	Directional wheel	8	start up button
4	Communication port	9	Power OFF Button
5	M6 Positive terminal (2pcs)	10	Emergency stop button

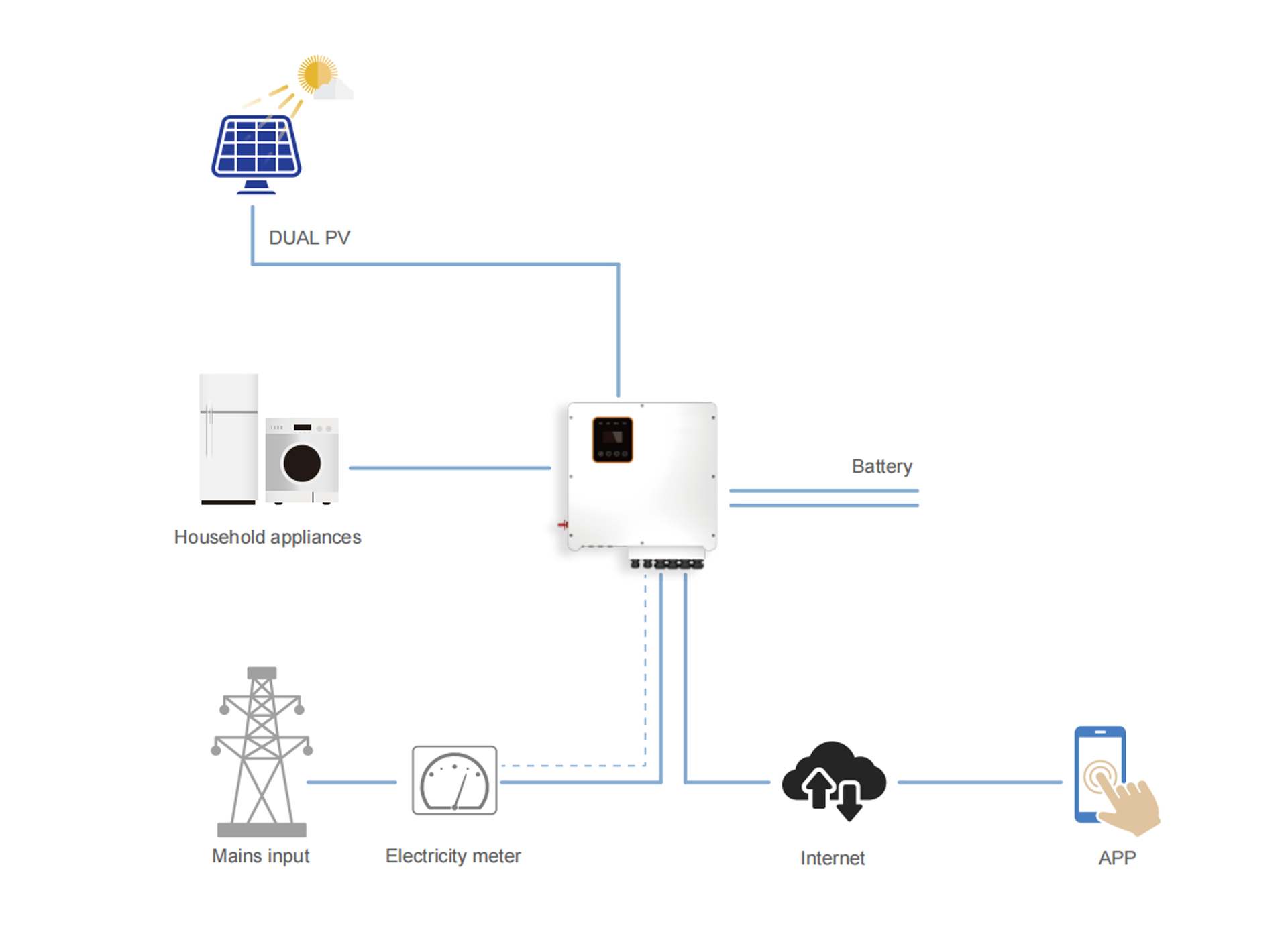

Product application diagram

CZpowersourcing LiFePO4 Battery
