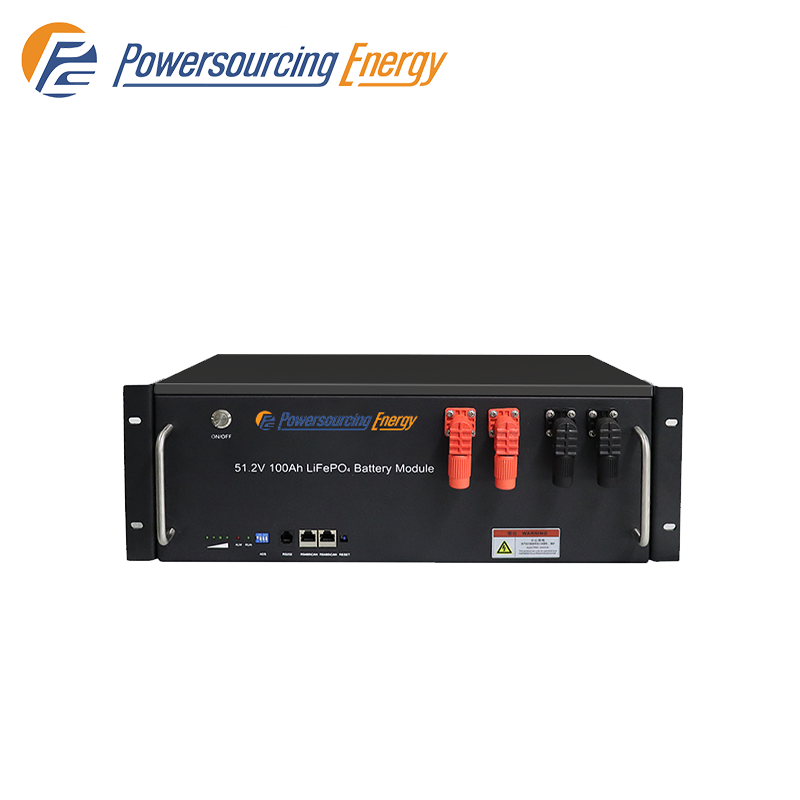

51.2V Rack Type Lifepo4 Lithium Battery

Czpowersourcing 51.2V 100Ah 200Ah 280Ah Rack Type Energy Storage Battery

Cell Type	LiFePO4
Nominal Voltage	51.2V
Nominal Capacity	100Ah/200Ah/280Ah
Efficiency	≥96%
Cycle Life	≥6000 tims
Lead Time	20 days
Warranty	5 years

Inquiry Now

Product Description

LiFePO4 Battery

51.2V 100Ah/200Ah/280Ah

Rack Type

Energy Storage Battery

Inquire now

Long-lasting battery life丨Safe and stable丨Longer life

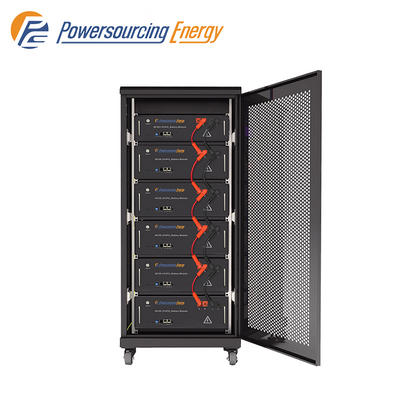

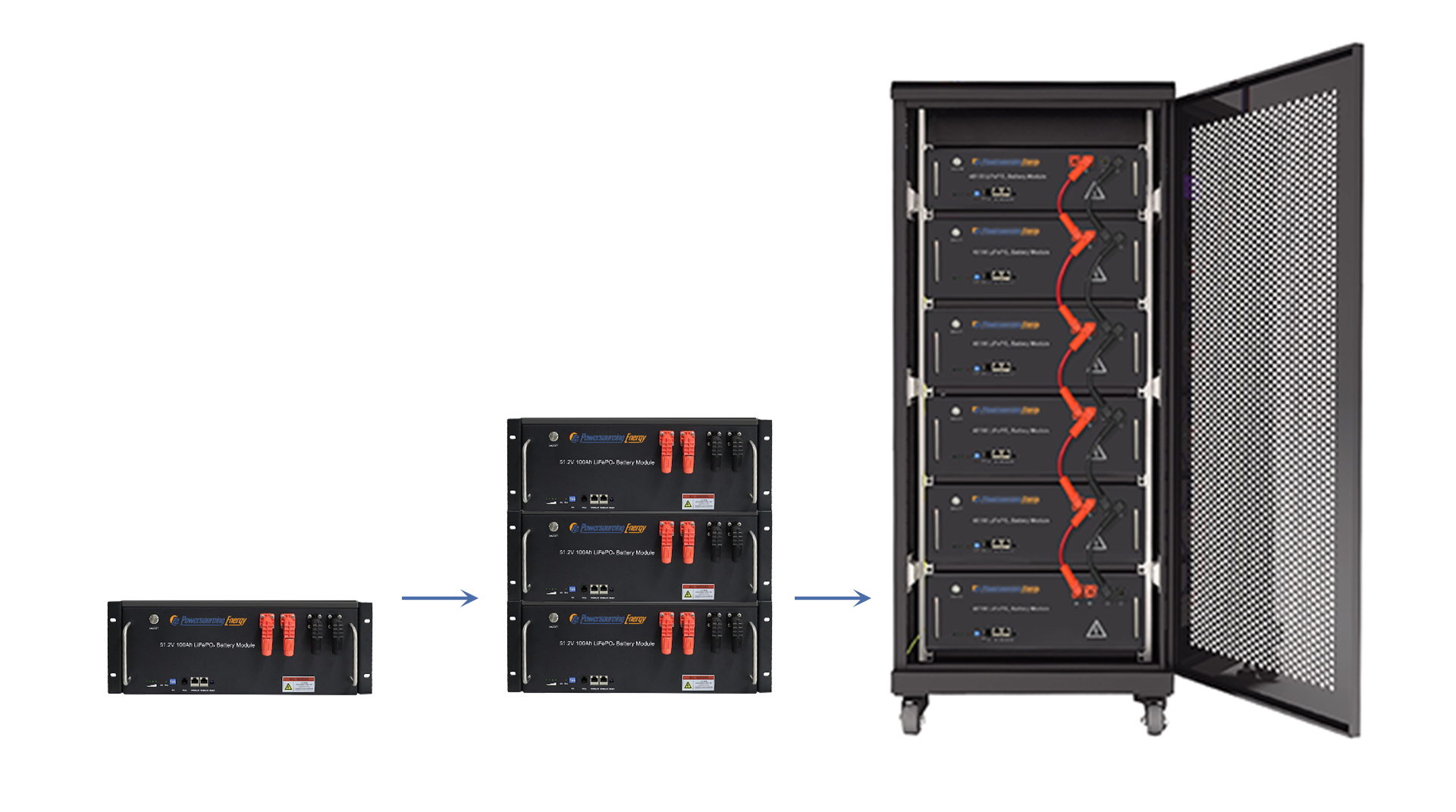

Battery can be connected in parallel up to 15 units.

◆ Standardized design: standard 3U and 4U case, good applicability
◆ In parallel to enlarge energy: Add the current limiting module, support multiple battery parallel use, expand the battery capacity, meet the high energy demand of customers.

◆ Intelligent lithium battery management system: With RS485 communication, you can monitor the battery status at any time and set protection parameters such as charge and discharge according to customers’requirements.

◆ Warning function: Warning functions such as overcharge, overdischarge, overcurrent, high temperature and low temperature can greatly reduce the potential safety hazard.

◆ Balancing: Automatic collection of battery single series voltage, pressure difference up to 30MV (can be set), automatic start equalization function.

	Model	M16S100BL-U	M16S200BL-U	M16S280BL-U
Basic Characteristics	Nominal Voltage	51.2V	51.2V	51.2V
	Nominal Capacity	100Ah	200Ah	280Ah
	Efficency	≥96%	≥96%	≥96%
	Cell Type	LiFePO4	LiFePO4	LiFePO4
Charging Characteristics	Charge Voltage	58.2V	58.2V	58.2V
	Standard Charging Current	20A	20A	56A
	Max.Continuous Charging Current	100A	100A	100A
Discharge Characteristics	Standard Discharge Current	50A	50A	50A
	Continuous Discharge Current	100A	100A	100A
	Peak Discharge Current	200A(3S)	200A(3S)	200A(3S)
	Discharge Cut-off Voltage	42V	42V	42V
Environmental Requirements	Charge Temperature Range	0~60℃	0~60℃	0~60℃
	Discharge Temperature Range	-10℃~65℃	-10℃~65℃	-10℃~65℃
	Storage Temperature Range	-5~40℃	-5~40℃	-5~40℃
	Storaqe Humidity	65±20%HR	65±20%HR	65±20%HR
Mechanical Characteristics	Size(L×W×H)	515×493×175mm	630×490×255mm	768×450×275mm
	Package Size (L×W×H)	550×523×230mm	710×570×455mm	865×550×345mm
	Shell Material	SPCC	SPCC	SPCC
	Net Weight	45kg	88kg	105kg
	Gross Weight	48kg	103kg	130kg
	Package Method	1pcs per carton	1pcs per carton	1pcs per carton
Others Characteristics	Cycle Life	≥6000 times	≥6000 times	≥6000 times
	Self Discharge	2% per month	2% per month	2% per month
	SOC Indication	LED Light	LED Light	LED Light
	Communication Mode	RS485/CAN	RS485/CAN	RS485/CAN
	IP protection	21	21	21
	Matching Inverter	Growatt, Goodwe, Deye, Luxpower, SRNE etc

* Supports 15 parallel connections

Certification

UN38.3

MSDS

EMC

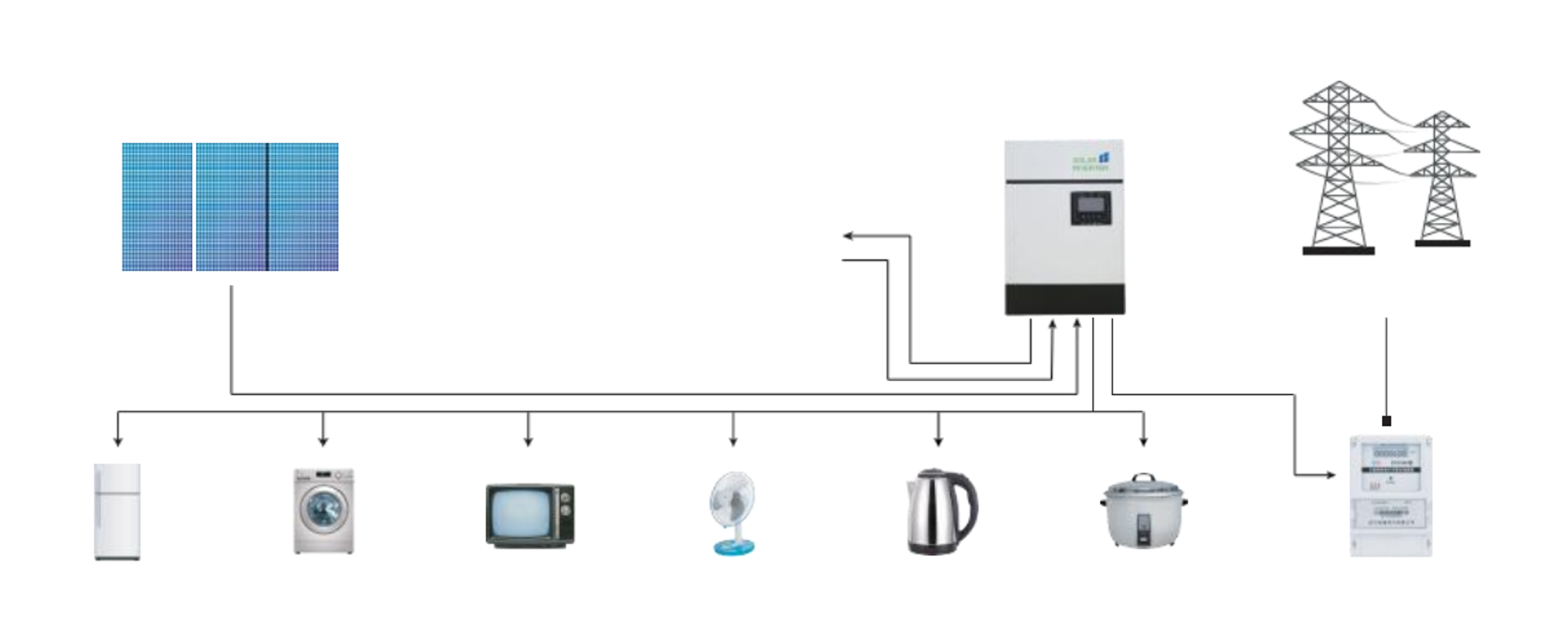

Product application diagram

Solar Panel

Inverter

Battery

Refrigerator Washing machine TV Fan Kattle Rice cooker Electricity meter

CZpowersourcing LiFePO4 Battery
