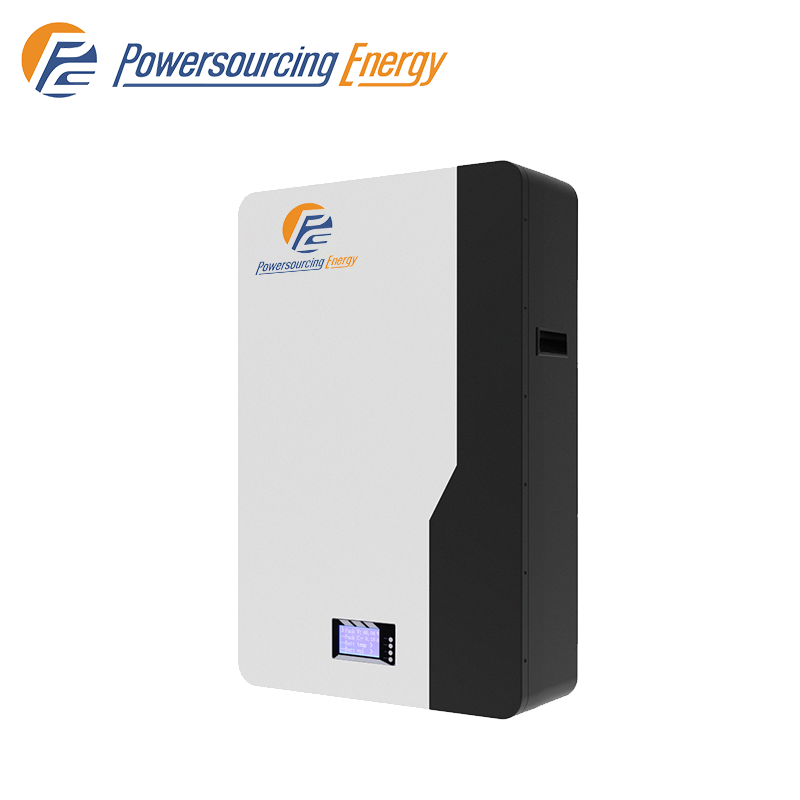

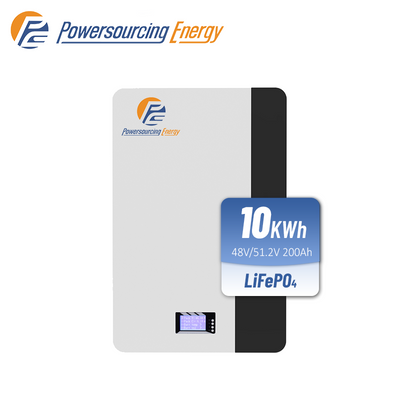

48V/51.2V 200Ah Powerwall Lifepo4 Lithium Battery

Czpowersourcing 9.6KWh 10.24KWh Powerwall Energy Storage Battery

Cell Type	LiFePO4
Nominal Voltage	48V/51.2V
Nominal Capacity	200Ah
Efficiency	≥96%
Cycle Life	≥6000 tims
Lead Time	20 days
Warranty	5 years

Inquiry Now

Product Description

LiFePO4 Battery

48V/51.2V 200Ah

Powerwall 10kwh

Energy Storage Battery

Inquire now

Long-lasting battery life丨Safe and stable丨Longer life

	Model	M15S200BL-V	M16S200BL-V
Basic Characteristics	Nominal Voltage	48V	51.2V
	Nominal Capacity	200Ah	200Ah
	Efficency	≥96%	≥96%
	Inner Resistance	10mΩ	7mΩ
	Cell Type	LiFePO4	LiFePO4
Charging Characteristics	Charge Voltage	54.8V	58.4V
	Standard Charging Current	40A	40A
	Max. Continuous Charging Current	100A	100A
Discharge Characteristics	Standard Discharge Current	40A	40A
	Continuous Discharge Current	100A	100A
	Peak Discharge Current	200A(3S)	200A(3S)
	Discharge Cut-off Voltage	42V	42V
Environmental Requirements	Charge Temperature Range	0~60℃	0~60℃
	Discharge Temperature Range	-10℃~65℃	-10℃~65℃
	Storage Temperature Range	-5~40℃	-5~40℃
	Storaqe Humidity	65±20%HR	65±20%HR
Mechanical Characteristics	Size(L×W×H)	440×206×670mm	445×206×675mm
	Package Size (L×W×H)	750×520×385mm	755×525×395mm
	Shell Material	SPCC	SPCC
	Net Weight	73kg	76kg
	Gross Weight	88kg	89kg
	Package Method	1pcs per carton	1pcs per carton
Others Characteristics	Cycle Life	≥6000 times	≥6000 times
	Self Discharge	2% per month	2% per month
	SOC Indication	LED Light& LCD Screen	LED Light& LCD Screen
	Communication Protocol	RS485/CAN	RS485/CAN
	Matching Inverter	Growatt, Goodwe, Deye, Luxpower, SRNE etc

Certification

UN38.3

MSDS

EMC

Structural parts description

1	White plate	6	M6 Positive terminal (2pcs)
2	LCD display	7	Battery indicator
3	Black plate	8	RS485 /CAN
4	Wall mounted bracket	9	M6 Negative terminal (2pcs)
5	Handle	10	OFF/ON

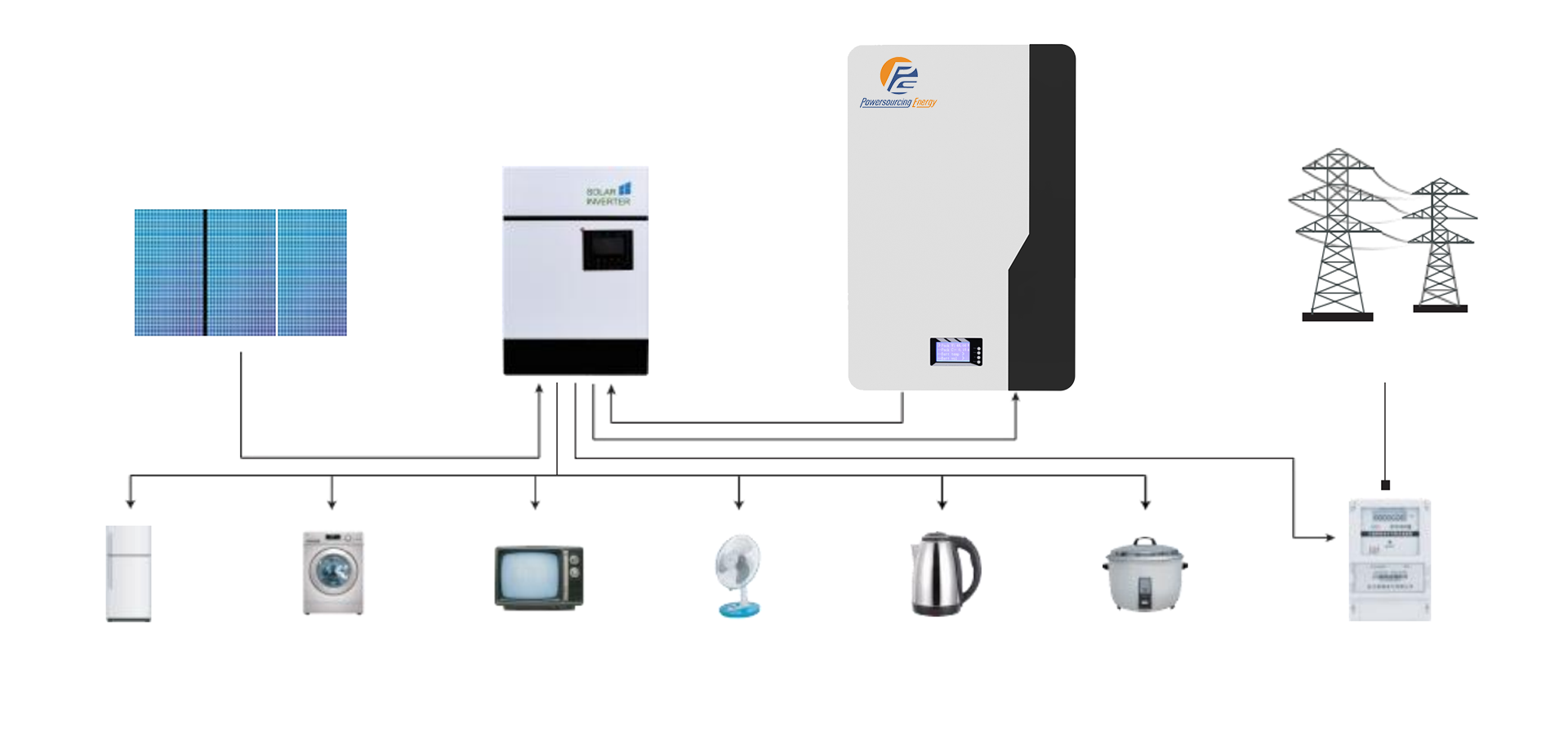

Product application diagram

Solar Panel

Inverter

Battery

Refrigerator Washing machine TV Fan Kattle Rice cooker Electricity meter

CZpowersourcing LiFePO4 Battery
