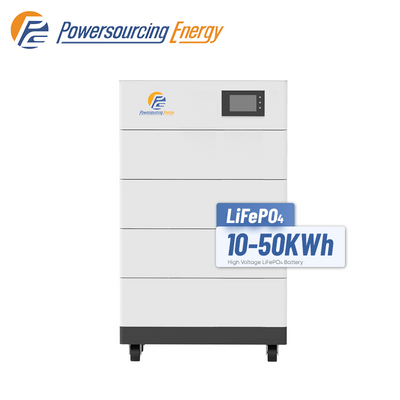

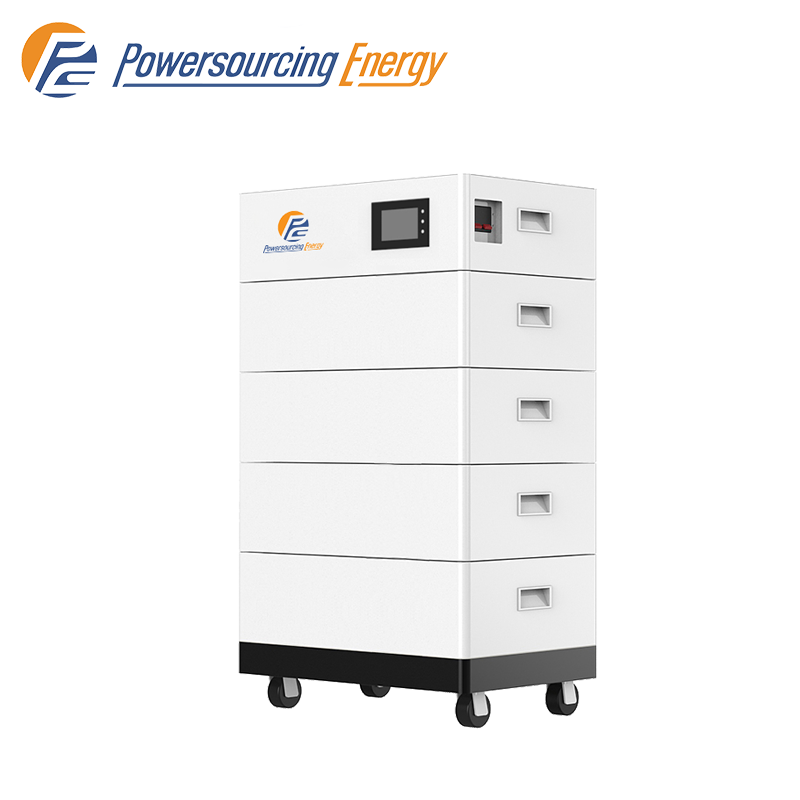

High Voltage Stackable Lifepo4 Battery

Czpowersourcing 96V/144V/192V/384V 100Ah Lithium Battery 19.2kwh 38.4Kwh

    Cell Type
   LiFePO4

    Nominal Voltage
   96V-384V

    Nominal Capacity
   100Ah

    lP Protection
   IP54

    Cycle Life
   ≥6000 tims

    Lead Time
   20 days

    Warranty
   5 years

Product Description

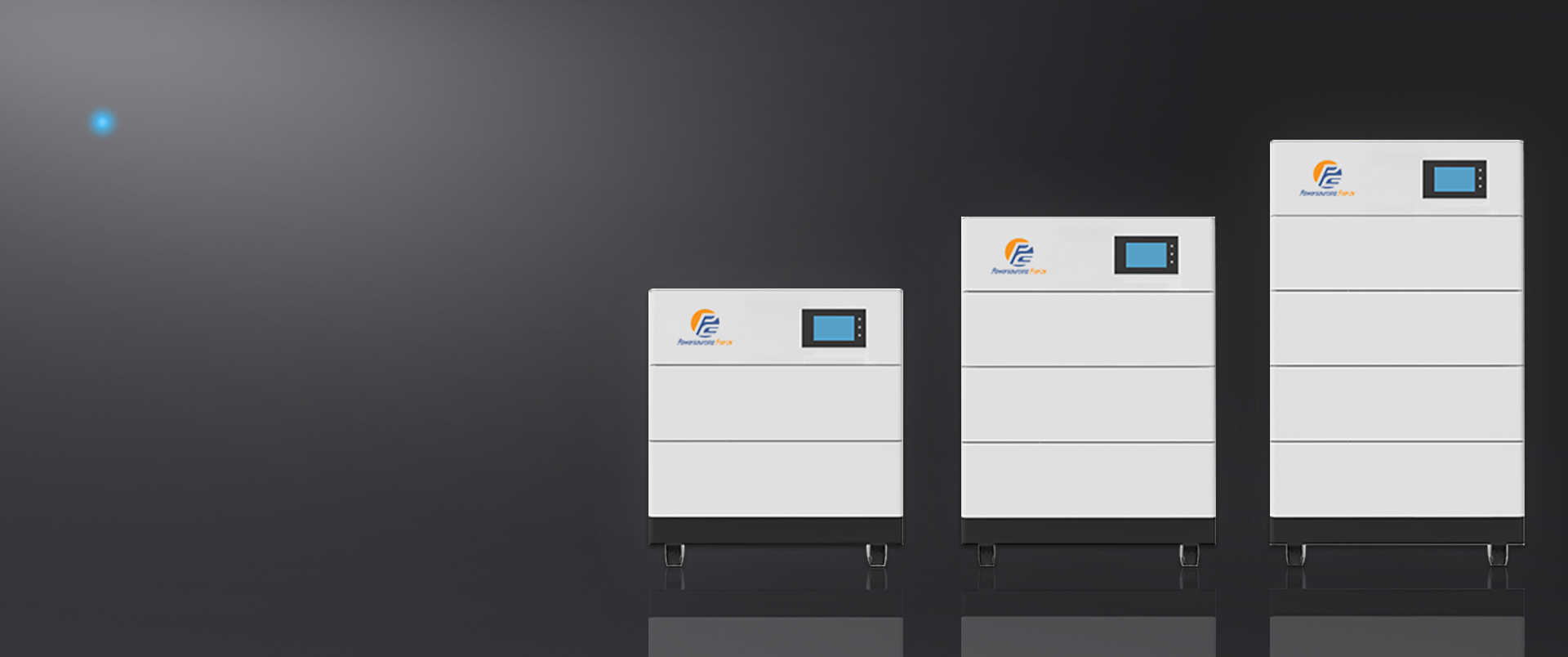

54HL4R-B banner
HIGH VOLTAGE
LiFePO4 Battery
4.8KWh per pack，
Max. 8 packs in parallel
HVM30-120S100BL
Inquire now

  Datasheet

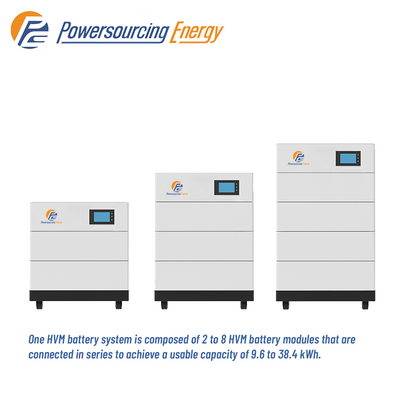

 HVM15S100BL HVM30S100BL HVM45S100BL HVM60S100BL HVM75S100BL HVM90S100BL HVM105S100BL HVM120S100BL
  Number of Modules 1 2 3 4 5 6 7 8
  Nominal Voltage 48V 96V 144V 192V 240V 288V 336V 384V
  Battery Capacity 100Ah 100Ah 100Ah 100Ah 100Ah 100Ah 100Ah 100Ah
  Battery Energy 4.8KWH 9.6KWH 14.4KWH 19.2KWH 24KWH 28.8KWH 33.6KWH 38.4KWH
  Battery Voltage 48V 96V 144V 192V 240V 288V 336V 384V
  Standard Charge/
  Discharge Current		 20A 20A 20A 20A 20A 20A 20A 20A

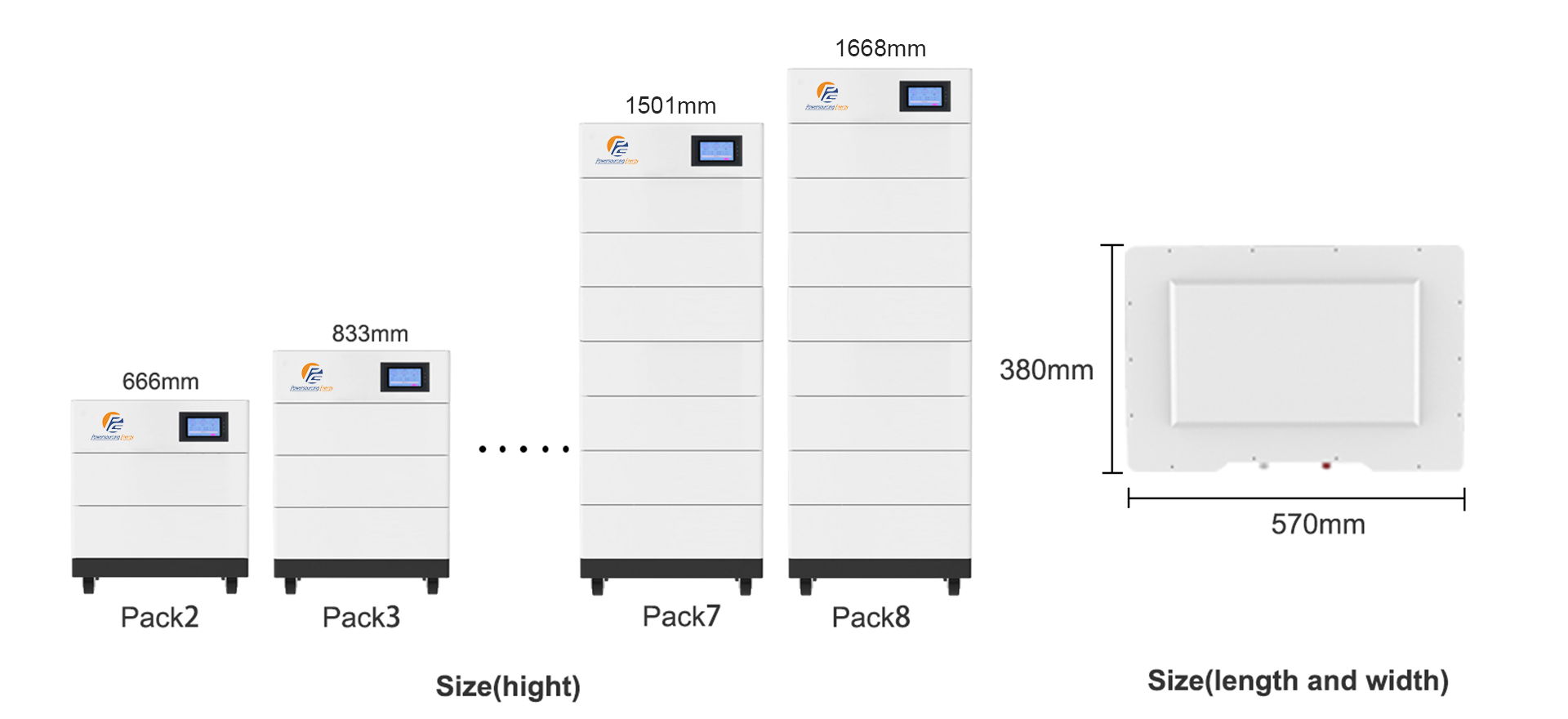

  Size(L×W×H) 570×380×167mm 570×380×666mm 570×380×833mm 570×380×1000mm 570×380×1167mm 570×380×1334mm 570×380×1501mm 570×380×1668mm

  Weight

 41kg 107kg 148kg 189kg 230kg 271kg 312kg 353kg
  General
  Battery Type Lithium Iron Phosphate(LFP)
  Nominal Voltage   96V-384V
  Operating Voltage
  Range		   80-438V
  IP Protection IP54
  Installation Floor installation
  Operation
  Temperature		 -10~60℃
  Features
  BMS Monitoring
  Parameters		 SOC, System voltage,current, cell voltage, cell temperature, PCBA temperature measurement
  Communication Port CAN
  Waranty 5 years
  Grade A quality LiFePO4 battery, more than 6000 cycles in 80% DOD @25°C
  Battery discharge: -10°C~60°C, battery charge: 0°C~60°C
  Compatible with 96~384V high voltage inverter/UPS

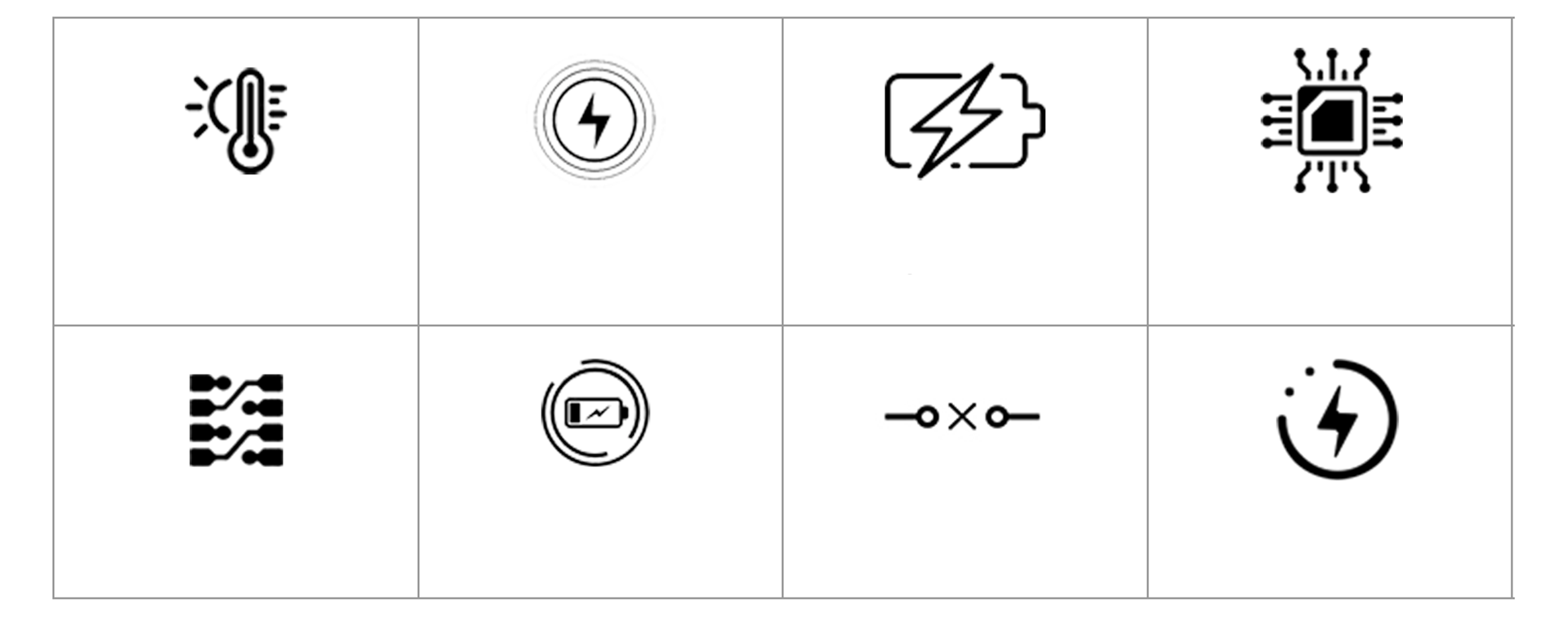

Product Detail

画板 14
画板 14
Over temperature
protection
Over discharge
protection
Over temperature
protection
Over current
protection
Cut-off
protection
Over load
protection
Short circuit
protection
Over voltage
protection

Certification

画板 8
CE
UN38.3
MSDS
EMC

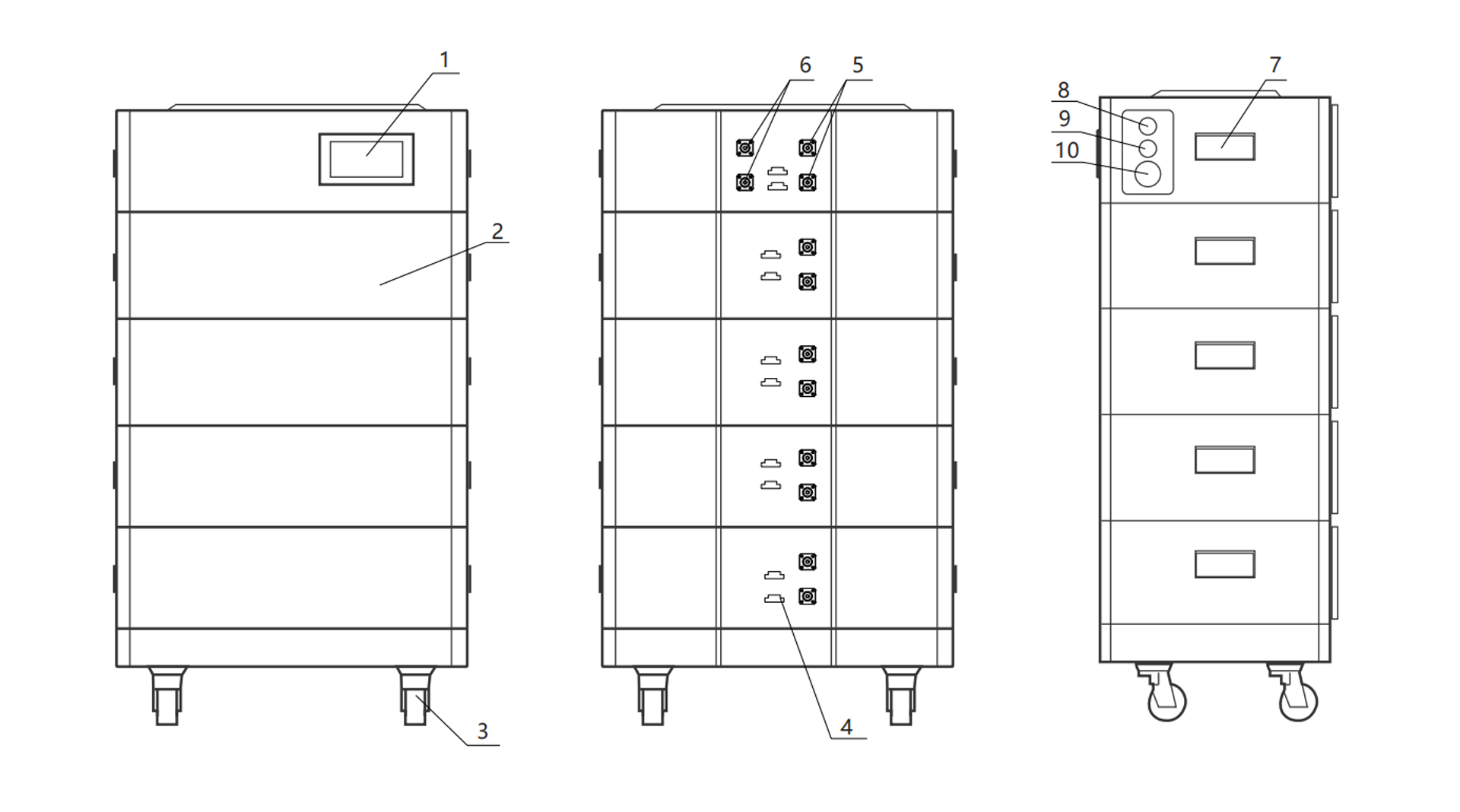

Structural parts description

画板 9
1 LCD display 6 M6 Negative terminal (2pcs)
2 Battery module 7 Box handle
3 Directional wheel 8 start up button
4 Communication port
9
 Power OFF Button
5 M6 Positive terminal (2pcs)
10
 Emergency stop button

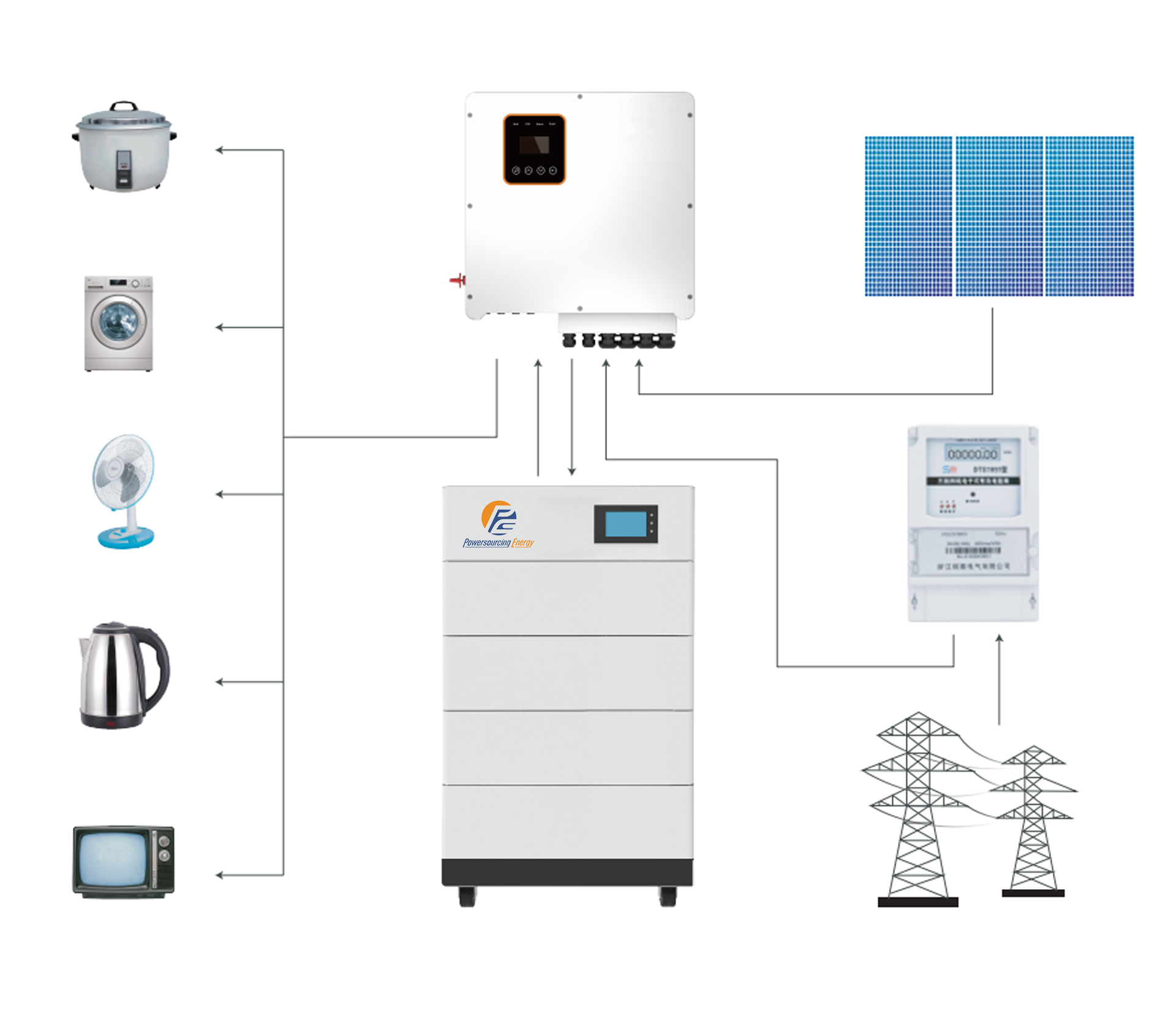

Product application diagram

画板 7
Solar Panel
Inverter
Battery
AC
Rice cooker






Washing machine






Fan






Kattle





TV
Electricity
meter

CZpowersourcing LiFePO4 Battery
