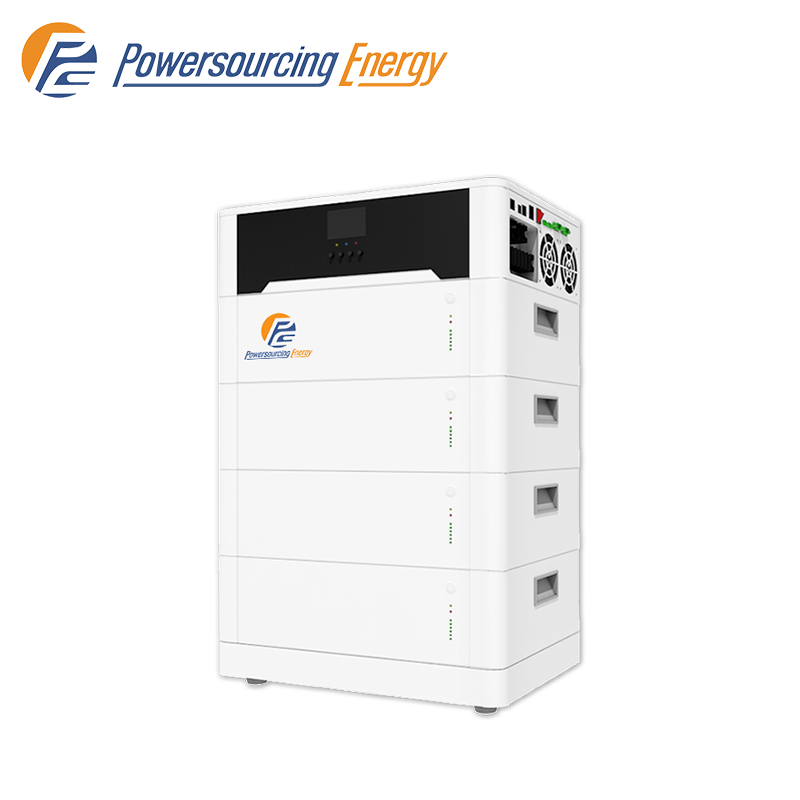

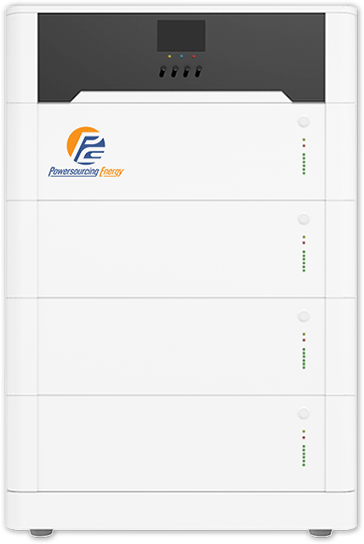

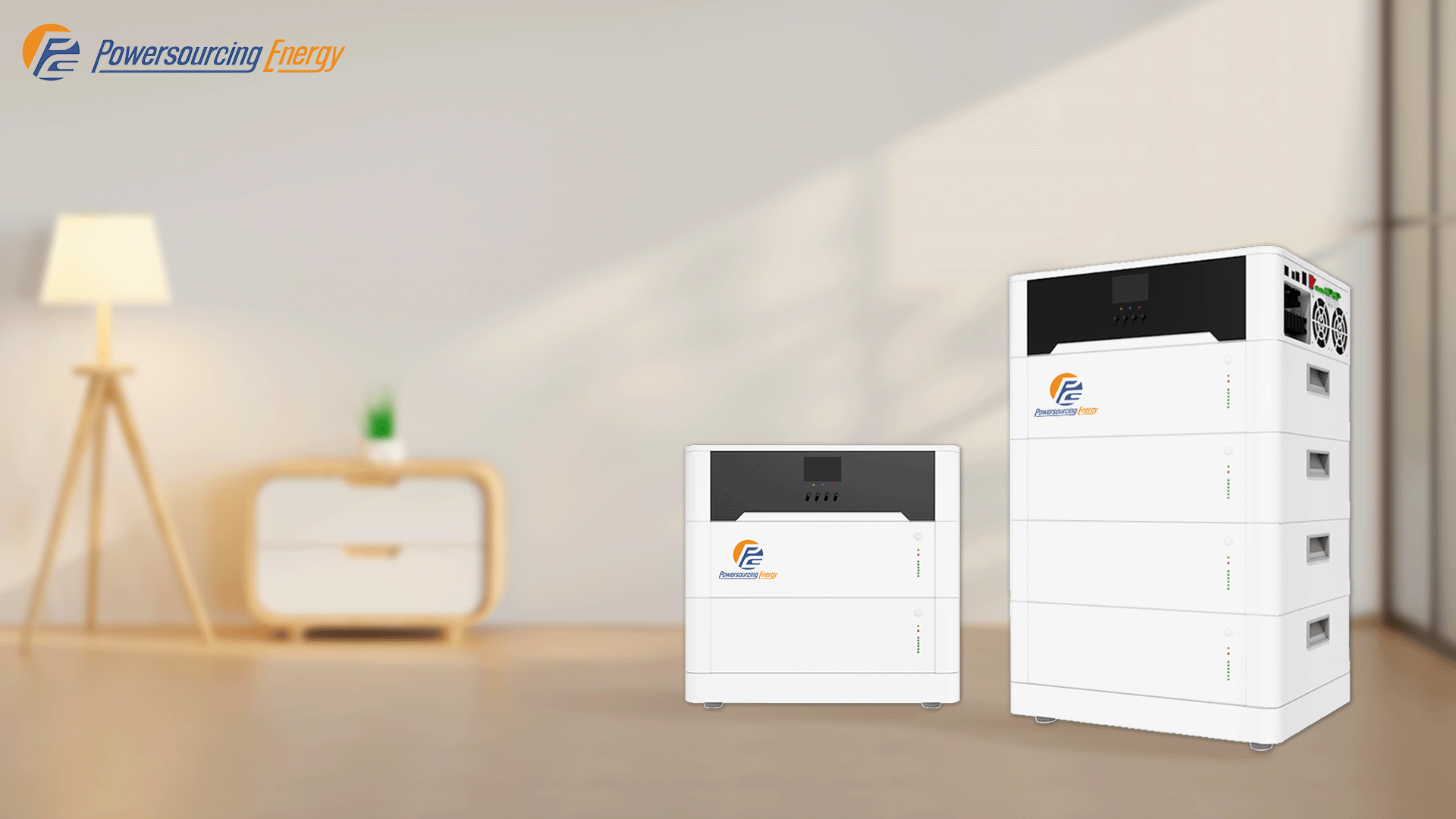

Horizontal All in one energy storage system

Czpowersourcing 51.2V 50Ah 100Ah Horizontal All in one
energy storage system

    Cell Type
   LiFePO4

    Nominal Voltage
   51.2V

    Nominal Capacity
   50Ah/100Ah

    Efficiency
   ≥96%

    Cycle Life
   ≥6000 tims

    Lead Time
   20 days

    Warranty
   5 years

Product Description

54HL4R-B banner
Energy Storage System
2.56KWh~10.24KWh
Horizontal All in one
Inquire now
Home Energy Storage System
MAIN FEATURES
Safe and reliable Technical features
• New Class A high-reliability lithium iron phosphate battery, green and environmentally friendly • Support off-grid/hybrid output
• Intelligent integrated BMS, all-round protection strategy and fault detection • Multiple charging and discharging modes are available
System services Full functioning
• Support for viewing real-time data through the app • No matching and commissioning required, easy to install
• LCD display, dynamic display of system operating status data • Up to two systems in parallel, with dual storage and output

  Product Description

Product parameters
  Inverter moudle INV05KLP1-2.5 INV10KLP1-5.0
  Output
  Rated Output Power 5,000W 10,000W
  Max. Peak Power 10,000VA 20,000VA
  Load Capacity of Motor
4HP
 6HP
  Wave Form PSW（Pure Sine Wave） PSW（Pure Sine Wave）
  Rated Output Voltage 220Vac（single-phase） 220Vac（single-phase）
  Max. Parallel Capacity 2units（up to 10kW） 2units（up to 20kW）
  Output Mode Off-grid / Hybrid Off-grid / Hybrid
  Solar Input
  Types of solar charging
MPPT
 MPPT
  Max. Solar Array Power 5,500W 5,500W+5,500W
  Max. Solar Open Circuit Voltage 500Vdc 500Vdc+500Vdc
  Grid / Generator Input
  Input Voltage Range 90~280Vac 90~280Vac
  Bypass Overload Current 40A 63A
  Battery Charging
  Max. Solar Charging Current 100A 200A
  Max. Grid / Generator Charging Current 60A 120A
  Routine
  Dimension 480×330×135mm 600×440×165mm
  Weight(Kg) ~13kg ~27kg
  Battery Module PC-AIOS2.5B PC-AIOS05B
  Battery Power 2.56kWh 5.12kWh
  Rated Voltage 51.2V 51.2V
  Rated Capacity 50Ah 100Ah
  Battery Type Square LFP Square LFP
  Cycling Life Span ≥6000 (80%DOD, 0.5C, 25°C) ≥6000 (80%DOD, 0.5C, 25°C)
  Max. Parallel Capacity 4units（max. 10.24kWh） 4units（max. 20.48kWh）
  Dimension 480×330×135mm 600×440×165mm
  Weight(Kg) ~25kg ~45kg
  Standard UN38.3, MSDS, UL1973, IEC62619:2017, EN IEC61000-3-2, EN IEC61000-6-1,RoHS

Size Capacity Description

画板 9

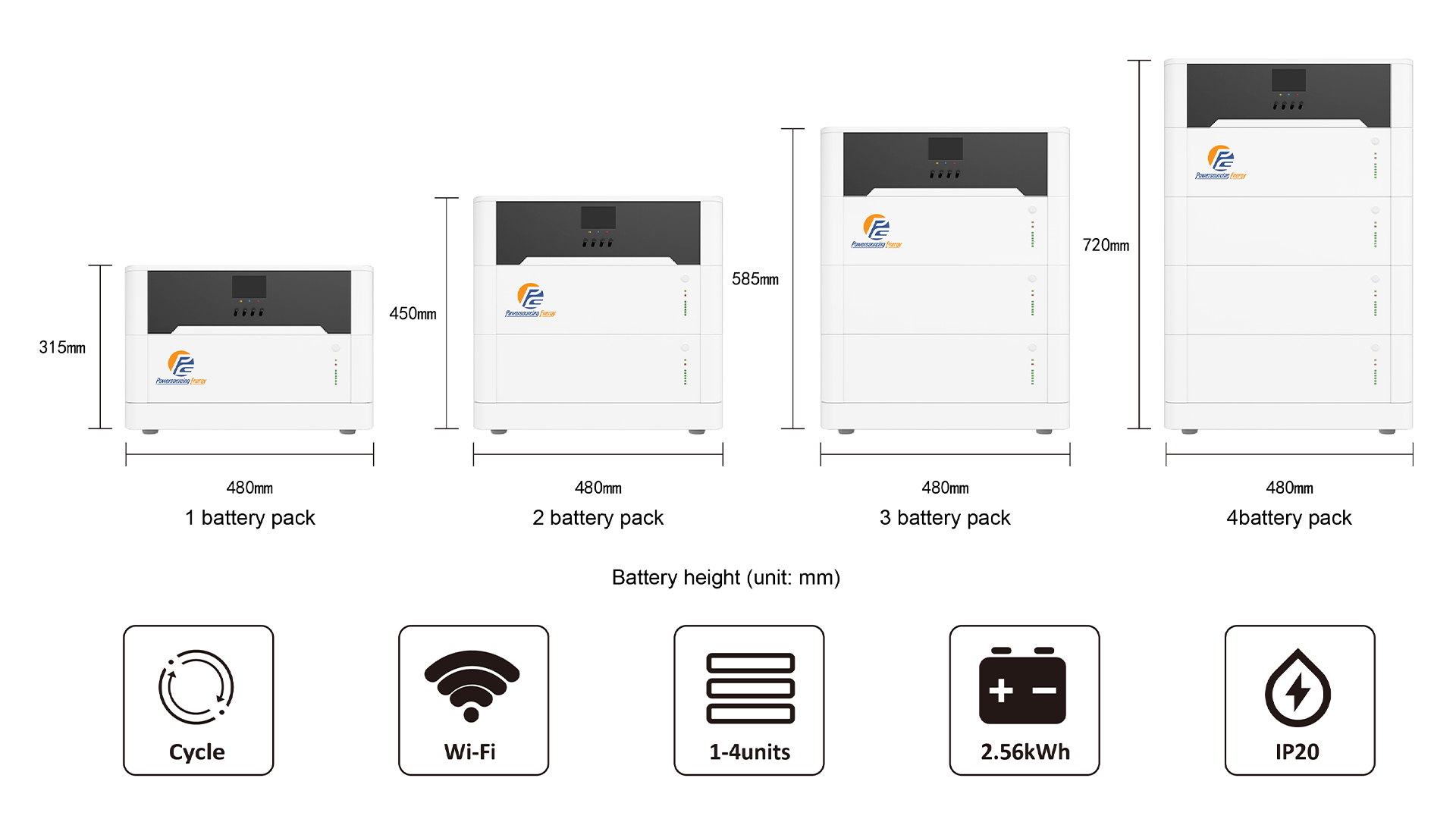

Modular stacking design, easy to choose the size of the capacity Up to 4 cells in parallel easily expands to10.24KWh, up to two systems in parallel, dual storage and output
画板 26

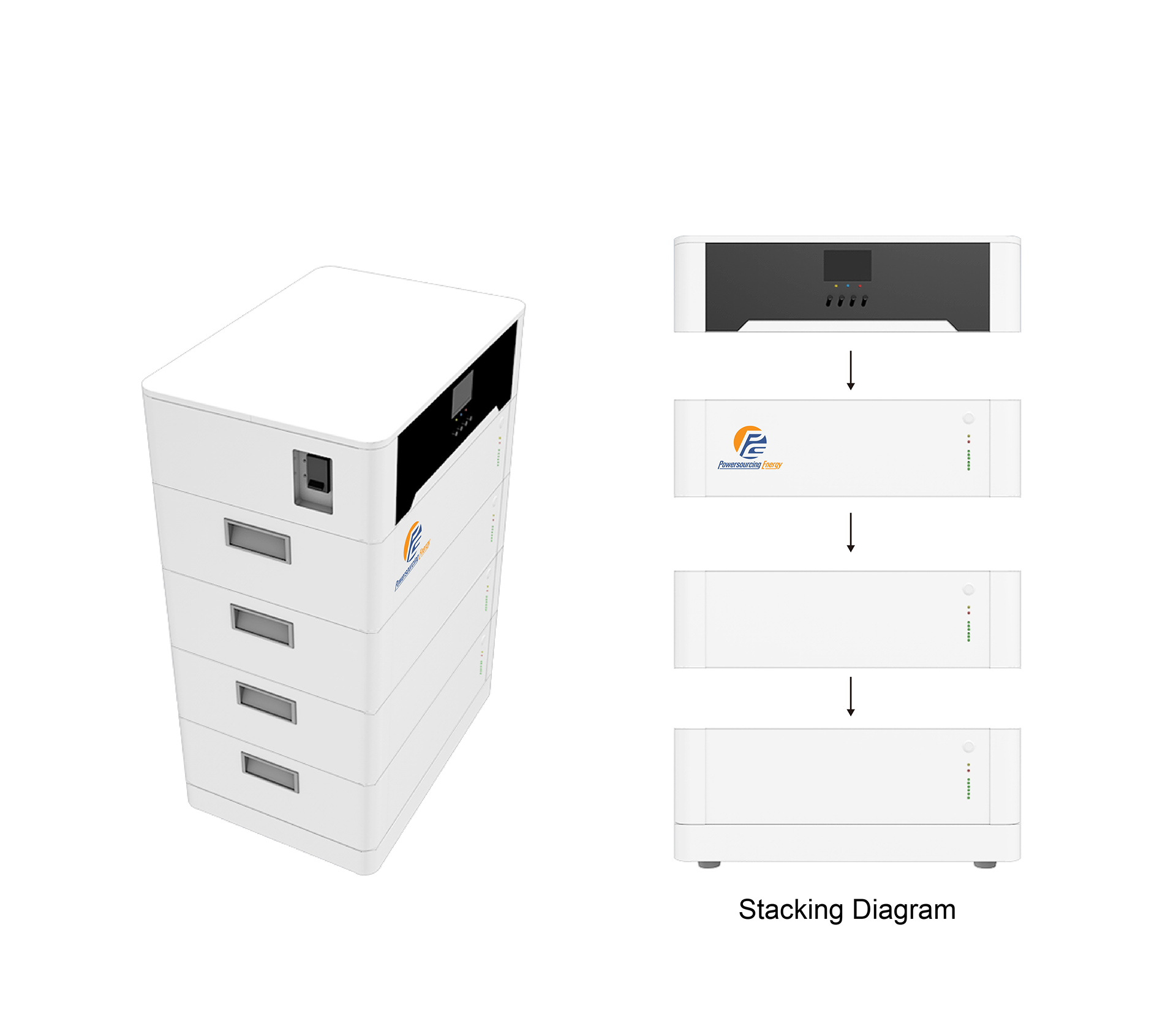

An AIO-S battery system consists of 1 to 4 AlO-S battery modules connected in parallel by stacking, Available capacities from 2.56 to 10.24KWh can be achieved

Certification

画板 8
CE
UN38.3
MSDS
EMC

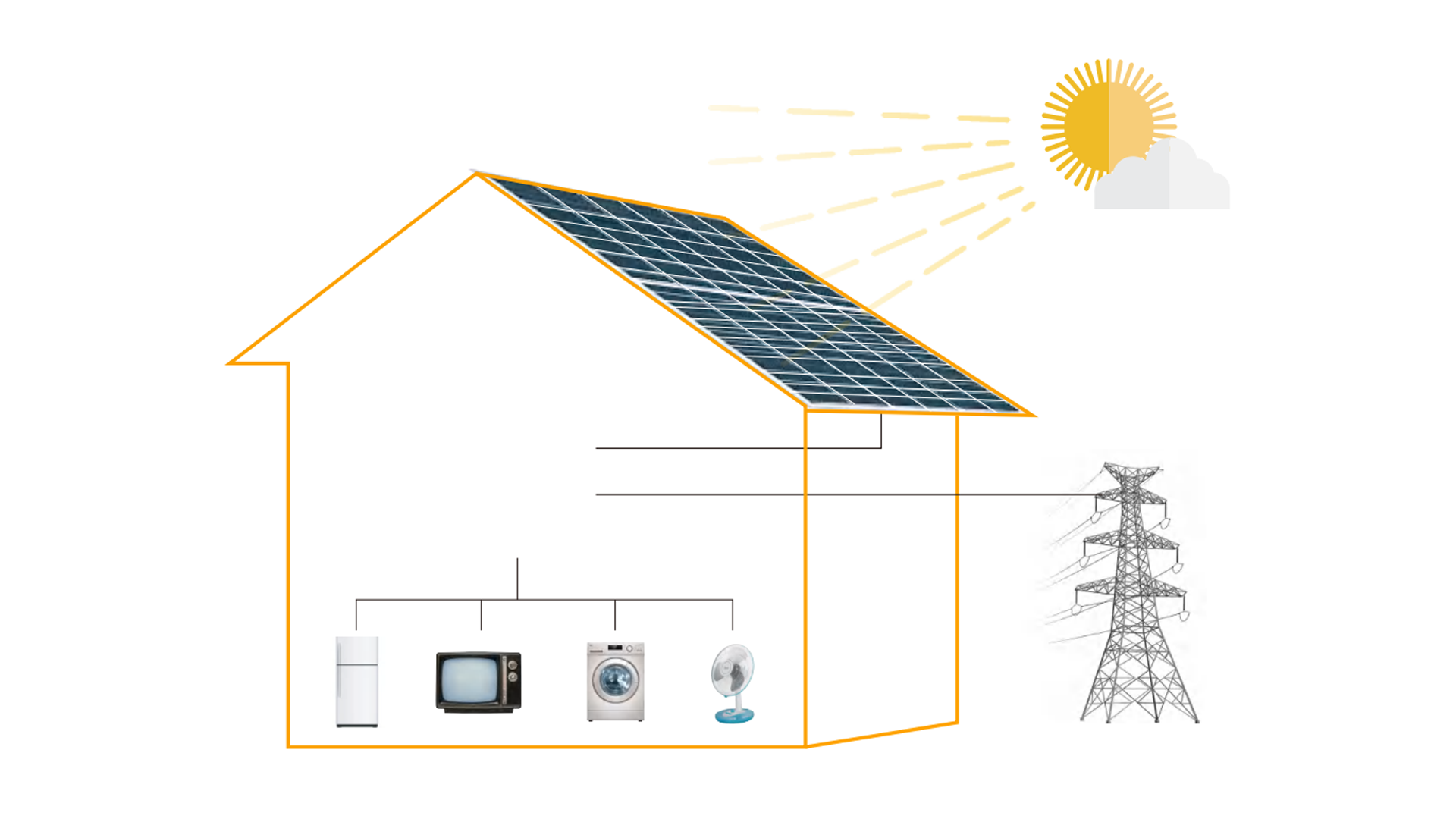

Product application diagram

CZpowersourcing LiFePO4 Battery
