51.2V 100Ah Vertical All-in-one Energy Storage System

Czpowersourcing 51.2V 100Ah Energy Storage System

Cell Type	LiFePO4
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Efficiency	≥96%
Cycle Life	≥6000 tims
Lead Time	20 days
Warranty	5 years

Inquiry Now

Product Description

Energy Storage System

5KWh/10KWh

All in one

Inquire now

Home Energy Storage System

MAIN FEATURES
Designed for Families	Easy to Install
• Support Off-grid / Hybrid / On-Grid output	• No matching and commissjoning required, easy to instal
• Multiple charge and discharge modes available	• Plug-and-play,eliminate the clutter of wires
Safety	User Friendly
• High quality LiFePO4 cells	• Get started quickly and use it insitantly
• Smart Lithium ion battery management solutions	• Min. width of just 15cm, saving space in the home
Easy to Upscale	Intelligence
• Up to four batteries in parallel expand to 20.48kWh	• Support Wifi view resl-time data through App
• Up to two systems in parallel with double storage & output	• Large LCD screen with real-time data

Inverter Module	PC-AIOV05C-220	Can Be Set
Output
Rated Output Power	5,000W
Max. Peak Power	10,000VA
Load Capacity of Motor	4HP
Wave Form	PSW（Pure Sine Wave）
Rated Output Voltage	220Vac（single-phase）	✔
Max. Parallel Capacity	2units（up to10kW）	✔
Output Mode	Off-grid / Hybrid / On-grid	✔
Continuous Discharge Current
Solar Charge Type	MPPT
Max. Solar Array Power	5,500W
Max. Solar Open Circuit Voltage	500Vdc
Grid / Generator Input
Input Voltage Range	90~280Vac
Bypass Overload Current	40A
Battery Charging
Max. Solar Charging Current	100A	✔
Max. Grid / Generator Charging Current	60A	✔
General
Dimension	400×580×145mm
Weight(Kg)	~18kg
Battery Module	PC-AIOV05B	Can Be Set
Battery Power	5.12kWh
Rated Voltage	51.2V
Rated Capacity	100Ah
Battery Type	Prismatic LFP
Cycling Life Span	≥6000 (80%DOD, 0.5C, 25°C)
Max. Parallel Capacity	4units（up to 20.48kWh）	✔
Dimension	480×580×145mm
Weight(Kg)	~45kg
Standard	UN38.3, MSDS, UL1973, IEC62619:2017, EN IEC61000-3-2, EN IEC61000-6-1,RoHS

Size Capacity Description

Inverter

Module

Battery

Module

H940×W580×T145mm H1420×W580×T145mm

One Inv 5kw

One Bat. 5.12kWh

One Inv 5kw
Two Bat. 10.24kWh

Certification

UN38.3

MSDS

EMC

Product application diagram

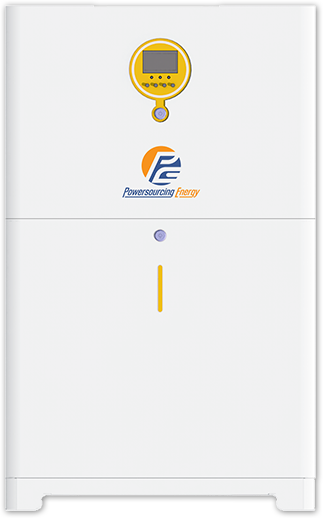

b9956db0-5bf5-4bf7-95a6-72d21b72a19d 拷贝 3
